Dual Door Full Height Turnstile Manufacturers For Gym Access Control

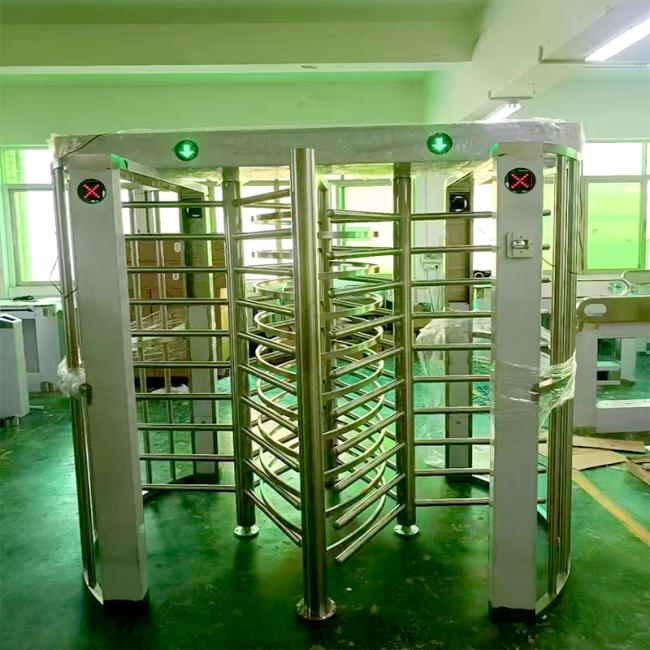

The JSD-QG08 Dual Doors Full Height Turnstile is a secure and efficient pedestrian access control solution designed for gyms, fitness centers, sports venues, and high-traffic facilities. Built with premium 304 stainless steel, the turnstile delivers excellent durability, corrosion resistance, and stable long-term performance for indoor and outdoor environments. Its dual-door full-height structure provides enhanced security while allowing smoother pedestrian flow management. The system supports one-way or two-way access control and integrates with RFID cards, biometric devices, and membership management systems through TCP/IP and RS485 communication interfaces. With fast response speed, anti-tailgating functionality, and a service life of up to 3 million cycles, the JSD-QG08 is ideal for modern intelligent entrance management applications.
- Dual-door full-height design for secure and efficient pedestrian management
- High-strength 304 stainless steel construction for long service life
- Supports one-way and two-way access control
- Compatible with RFID, QR code, and biometric access systems
- Mechanical semi-automatic movement with optional hydraulic buffer system
- Anti-tailgating and anti-climb protection for enhanced security
- TCP/IP and RS485 communication interfaces supported
- Stable operation with low maintenance requirements
- Suitable for indoor and outdoor installation with rain shelter
- Fast passage speed for high-traffic gym environments
| Item | Specification |
|---|---|
| Product Model | JSD-QG08 |
| Material | 304 Stainless Steel |
| Top Cover Thickness | 1.2 mm |
| Cabinet Thickness | 1.2 mm |
| Dimensions | 2200 × 1400 × 2200 mm |
| Arm Length | 600 mm |
| Passage Width | 700 mm |
| Swing Direction | One-way / Two-way |
| Drive Motor | DC Electromagnet 30W / 24V |
| Movement Type | Mechanical Semi-automatic / Optional Hydraulic Buffer |
| Opening Time | 0.5 – 2 Seconds |
| Passage Speed | 25–40 people/min |
| Communication Interface | Standard TCP/IP, RS485 |
| Input Signal | Dry Contact / +12V Level / DC12V Pulse Signal |
| Power Supply | AC220V ±10%, 50Hz |
| Operating Temperature | -15℃ to 60℃ |
| Humidity | 5% – 90%, No Condensation |
| Service Life | 3 Million Cycles |
| Installation Environment | Indoor / Outdoor with Rain Shelter |
Core Problem Solved: Controls member access efficiently while preventing unauthorized entry and improving membership management.
Core Problem Solved: Handles large pedestrian flow securely during peak event periods and reduces congestion.
Core Problem Solved: Provides controlled access for registered members and improves visitor management efficiency.
Core Problem Solved: Enhances entrance security and organizes pedestrian traffic in high-traffic areas.
Core Problem Solved: Prevents unauthorized access and improves personnel movement monitoring in secure environments.
-
Q1: What access control systems are compatible with the JSD-QG08?
The turnstile supports RFID cards, QR code systems, biometric devices, and third-party access control platforms.
-
Q2: Is the turnstile suitable for outdoor use?
Yes, the JSD-QG08 is suitable for indoor and outdoor installation when used with a rain shelter.
-
Q3: Does the turnstile support two-way passage?
Yes, the system can be configured for one-way or two-way pedestrian access control.
-
Q4: What is the service life of the turnstile?
The product is designed for long-term operation with a service life of up to 3 million cycles.
-
Q5: What communication interfaces are available?
The system supports standard TCP/IP and RS485 communication interfaces.
-
Q6: How many people can pass through per minute?
The turnstile supports approximately 25–40 people per minute depending on the operating mode.
![]()
