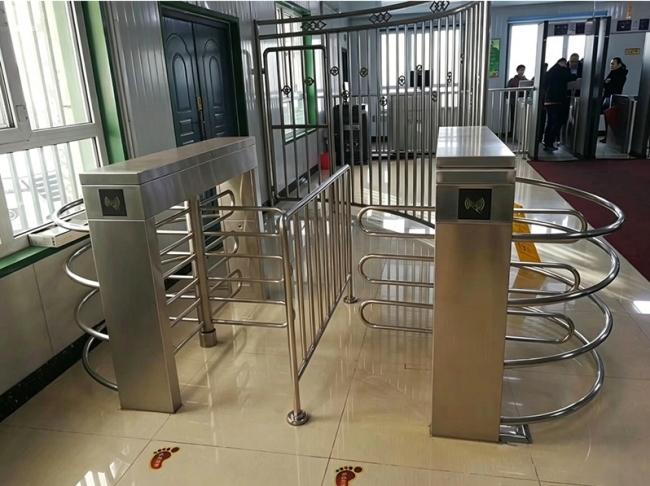

One Way / Two Way Half Height Turnstile Gate For Government Buildings
The JSD-QG07 Half Height Turnstile is a secure and efficient access control solution designed for government buildings, administrative centers, corporate facilities, and other controlled-entry environments. Featuring a durable structure and intelligent access management capabilities, the turnstile helps regulate pedestrian flow while improving overall security. Its half-height design provides effective passage control without creating a closed environment, making it suitable for locations requiring both safety and convenient access. The system supports RFID authentication and integrates with TCP/IP and RS485 communication interfaces for seamless connection with modern access control platforms. With stable operation, fast response speed, and a service life exceeding 3.5 million cycles, the JSD-QG07 delivers reliable long-term performance for indoor and outdoor applications.
- Half-height turnstile design for controlled yet user-friendly access
- Supports RFID access control and third-party system integration
- One-way and two-way passage modes available
- Mechanical semi-automatic movement with optional hydraulic buffer system
- Stable operation with low maintenance requirements
- Fast opening response for efficient pedestrian traffic management
- TCP/IP and RS485 communication interfaces supported
- Suitable for indoor and outdoor environments with rain shelter
- Long operational lifespan exceeding 3.5 million cycles
- Anti-tailgating design improves entrance security
| Item | Specification |
|---|---|
| Product Model | JSD-QG07 |
| Dimensions | 1500 * 1500 * 1200 mm |
| Passage Width | 600 mm |
| Swing Direction | One-way / Two-way |
| Drive Motor | DC Electromagnet 30W / 24V |
| Movement Type | Mechanical Semi-automatic / Optional Hydraulic Buffer |
| Opening Time | 0.5 – 2 Seconds |
| Passage Speed | 25–40 people/min |
| Communication Interface | Standard TCP/IP, RS485 |
| Input Signal | Dry Contact / +12V Level / DC12V Pulse Signal |
| Power Supply | AC220V ±10%, 50Hz |
| Operating Temperature | -15℃ to 60℃ |
| Relative Humidity | ≤90%, No Condensation |
| Working Humidity | 5% – 90% |
| Service Life | More than 3.5 Million Cycles |
| Installation Environment | Indoor / Outdoor with Rain Shelter |
Core Problem Solved: Enhances visitor and staff access management while preventing unauthorized entry into secure administrative areas.
Core Problem Solved: Improves employee attendance management and controls pedestrian flow during busy working hours.
Core Problem Solved: Provides organized access control and strengthens building security for employees and visitors.
Core Problem Solved: Maintains orderly visitor access and reduces congestion at entrance checkpoints.
Core Problem Solved: Restricts unauthorized access to sensitive departments while allowing efficient authorized passage.
Q1: What access methods are supported by the JSD-QG07?
The turnstile supports RFID authentication and can integrate with various third-party access control systems.
Q2: Is the turnstile suitable for outdoor use?
Yes, the turnstile can be installed outdoors when used with a rain shelter or protective cover.
Q3: Can the turnstile support two-way access?
Yes, the system supports both one-way and two-way pedestrian passage control.
Q4: What communication interfaces are available?
The product supports TCP/IP and RS485 communication interfaces for flexible system integration.
Q5: What is the service life of the turnstile?
The JSD-QG07 is designed for long-term operation with a service life of more than 3.5 million cycles.
