China-Made Multi-Interface Deutsch Dt Custom Vehicle Harness.
Price:
15
MOQ:
100
Delivery Time:
Negotiable
Product Description
Specification

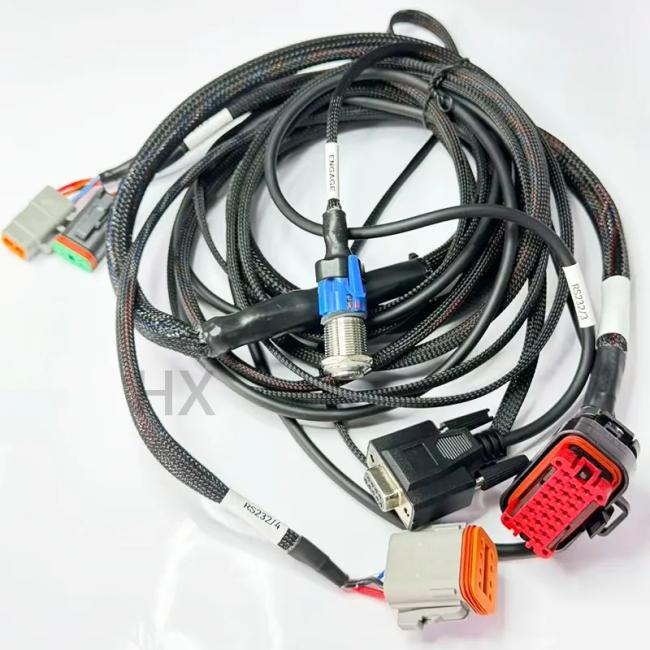

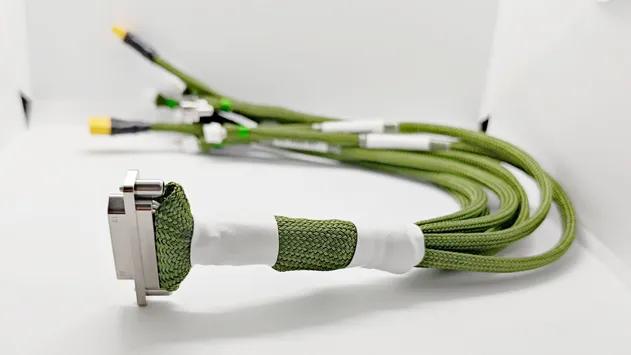

China factory multi-interface custom wiring harness for tractor vehicles
This is a custom multi-interface wiring harness assembly directly supplied from a China factory, designed for complex electronic control systems in tractors, vehicles and construction machinery. It serves as an integrated solution for power, signal and data transmission.
The harness integrates Deutsch DT series waterproof connectors, an RS232 data port (DB9) and an aviation switch/plug, enabling simultaneous connection of multiple devices. It is built with automotive-grade oil-resistant and abrasion-resistant cables, with heat-resistant braided sleeving at key sections and heat-shrink tubing for reinforcement. The whole assembly is IP67 rated, ensuring stable operation in temperatures from -55℃ to +125℃ and under high-vibration conditions.
Full customization is available for cable length, wire gauge, connector type and quantity, making it suitable for a wide range of applications including agricultural machinery, trucks and construction equipment. It is a highly reliable choice for industrial equipment connections in harsh environments.
The harness integrates Deutsch DT series waterproof connectors, an RS232 data port (DB9) and an aviation switch/plug, enabling simultaneous connection of multiple devices. It is built with automotive-grade oil-resistant and abrasion-resistant cables, with heat-resistant braided sleeving at key sections and heat-shrink tubing for reinforcement. The whole assembly is IP67 rated, ensuring stable operation in temperatures from -55℃ to +125℃ and under high-vibration conditions.
Full customization is available for cable length, wire gauge, connector type and quantity, making it suitable for a wide range of applications including agricultural machinery, trucks and construction equipment. It is a highly reliable choice for industrial equipment connections in harsh environments.
Electrial Specifications | |
Rated Voltage | 12V/24V |
Rated Current | Max 13A per conductor |
Contact Resistance | ≤5mΩ |
Insulation Resistance | ≥100mΩ |
Wire Gauge Range | 14~20AWG |
Physical & Environment Specifications | |
Protection Class | IP67 Waterproof & Dustproof |
Operating Temperature | -55~+125℃ |
Housing Material | Reinforced Flame-retardant Nylon |
Terminal Matrrial | Tinned Copper |
Vibration Resistance | Firm connection against loosening |
Mating Cycles | ≥100 times |
Company Profile
Jiangsu HangXun Optoelectronics Technology Co., Ltd.
Qualification Certificate

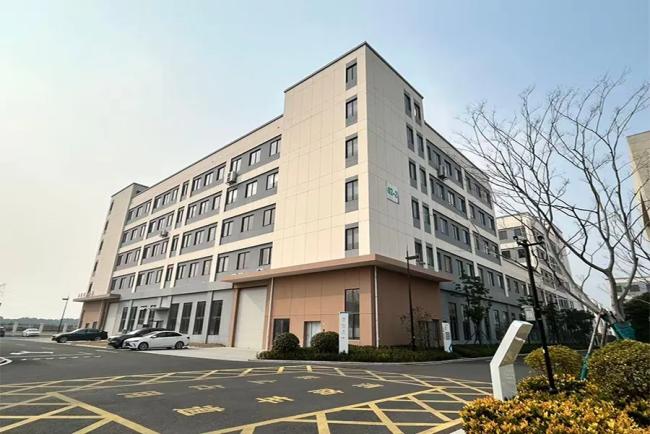

Jiangsu Hangxun Photoelectric Technology Co., Ltd. is engaged in the research and development, production, and sales of electrical connectors and cable assemblies. With 12 years of experience in the industry, the company possesses strong design, research, and manufacturing capabilities. The factory covers an area of 1520 square meters.
Main products:1.rectangular connector:J30J,J30JA,J30JZ and HJ30J.
2.Wire harness customization:Customization of communication wire harness and drone wire harness.
Main products:1.rectangular connector:J30J,J30JA,J30JZ and HJ30J.
2.Wire harness customization:Customization of communication wire harness and drone wire harness.
Our company holds a certificate of quality management system certification for weapon equipment, issued by a professional organization, covering the manufacturing of electronic connectors and the sales of cable assemblies (excluding those requiring specific qualifications).

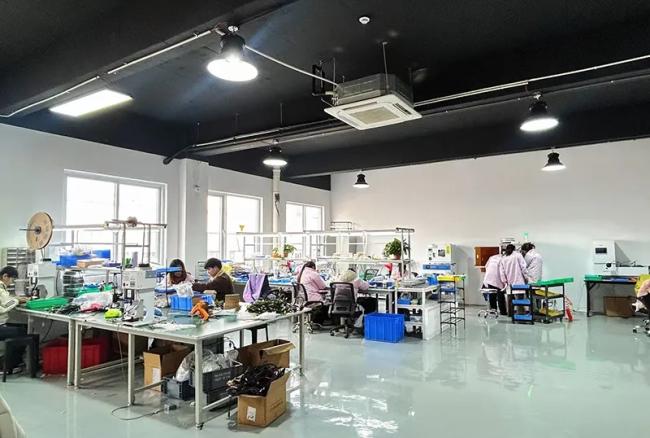

Connector assembly workshop

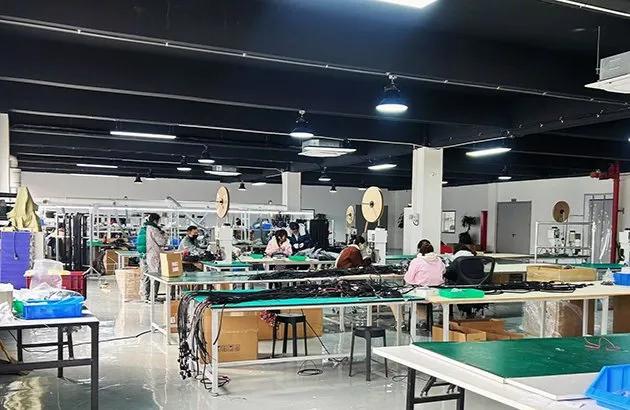

Wire harness processing workshop

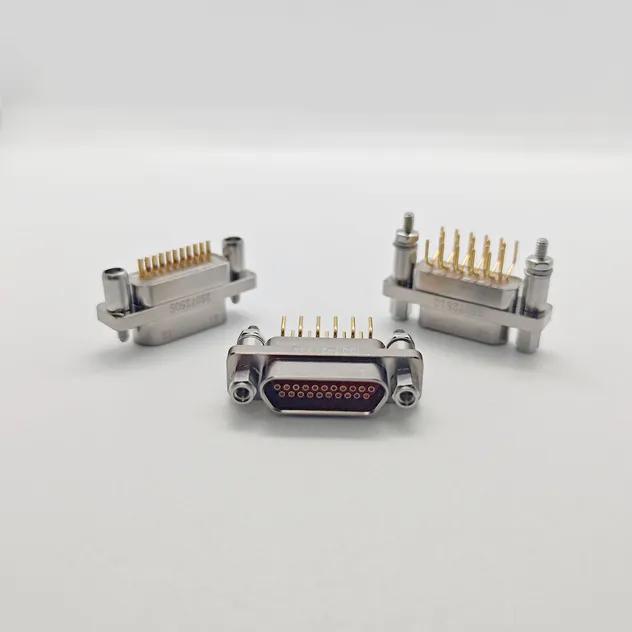

J30J-ZKN/ZKN-J/ZKS
J30J-25ZKSP

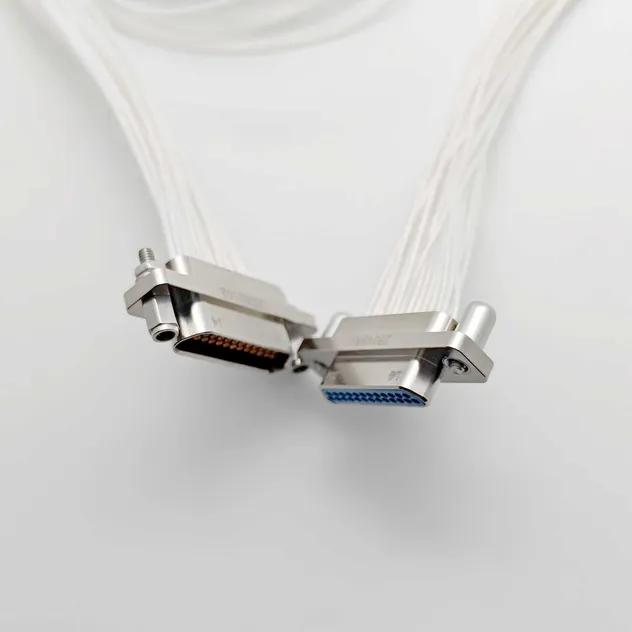

J30J-25 core plug/socket crimp with wire

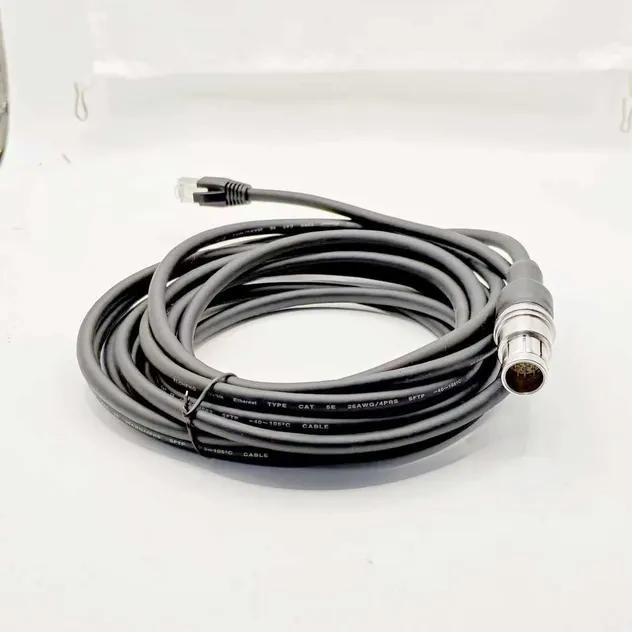

F1031 series 12-pin aviation plug to RJ45 connector
J30J series to DB9 serial port cable

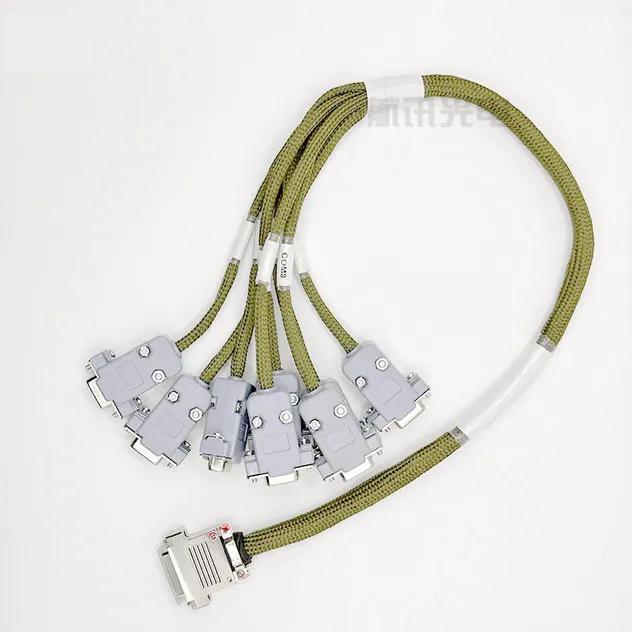

J30J-51TJL-(one divided by eight)
