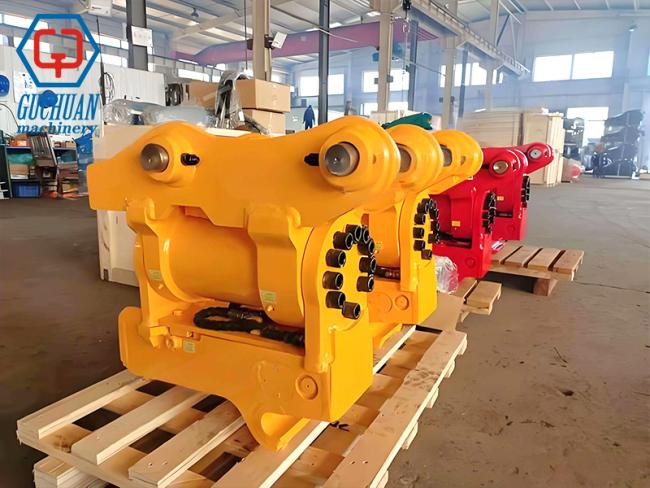

GC Series 180 Degree Tilt Quick Couplers for 1-22ton Excavators
Guchuan 180° Tilt Hydraulic Quick Hitch – Ultimate Attachment Versatility
Introducing the Guchuan GC-180 Series: Redefining Excavator and Loader Efficiency
*Core Features & Engineering Principles*
1.180° Tilt:** Allows the attached tool (bucket, grapple, breaker, etc.) to pivot forward and backward. This is invaluable for grading, sloping, and precise material positioning.
2. Robust Construction & Sealed Design*
* Fabricated from **high-tensile strength steel (Q345B/WH60A)** with precision CNC machining for perfect fit and durability.
* Integrated hydraulic pathways** with durable seals protect internal components from dust, debris, and moisture, ensuring long service life even in harsh environments.
3. Universal Compatibility & Easy Integration*
* Designed to meet common excavator pin standards. Can be adapted to fit most major excavator brands (CAT, Komatsu, Vol vo, Hitachi, etc.) and a vast array of attachments.
* Features a simple, *single-pin locking mechanism* for safe, secure attachment changes in under a minute.
![]()
Unmatched Technical Features & Specifications
- •
Wide 180° Tilt Range: The integrated double-acting hydraulic cylinders provide a tilting range of 90 degrees forward and 90 degrees backward (±90°). This extreme angle is essential for tasks like cleaning trenches, backfilling, leveling, and handling irregular loads. - •
Universal Compatibility: Designed to meet industry standards (e.g., ISO, GB), our quick hitch connects seamlessly to a vast range of attachments (buckets, breakers, grapples, augers, etc.) and machine brands (CAT, Komatsu, Hitachi, Vol vo, etc.). - •
Automatic Locking System: Features a secure, hydraulically-actuated locking mechanism that ensures the attachment is firmly locked in place. Visual and physical safety lock indicators provide the operator with clear confirmation, paramount for safe operation. - •
Built for Durability: Constructed from high-strength, wear-resistant steel (Har-dox or equivalent) with reinforced design at critical stress points. All hydraulic components (seals, hoses, valves) are sourced from top-tier suppliers for maximum reliability and long service life in the toughest environments.
How It Works: The Principle of Enhanced Control
- 1.
Connection: The operator aligns the hitch's hook system with the attachment's top pin and uses the hydraulic tilt to engage the bottom lip. - 2.
Locking: The hydraulic locking pin automatically extends, securing the attachment safely. - 3.
Operation: The operator uses two additional auxiliary hydraulic circuits (standard on most modern excavators) to control the 360-degree rotation and 180-degree tilt independently via the in-cabin joystick controls. This intuitive system provides precise, fingertip control over the attachment's position and angle.
Key Benefits for Your Operations
* Maximize Machine Utilization:One excavator can perform the work of multiple specialized machines by quickly switching between attachments like buckets, breakers, grapples, and rakes.
* Increase Productivity & Reduce Cycle Times: The dual-axis movement allows operators to complete complex maneuvers without repositioning the machine, leading to faster project completion.
* Enhance Job Site Safety: Operators can perform tasks from optimal, stable positions, reducing machine strain and risky maneuvers. The secure locking mechanism prevents accidental detachment.
* Reduce Total Ownership Costs: Minimize the need for multiple dedicated machines. The durable construction lowers maintenance costs and downtime.
* Improve Precision & Finish: The fine control offered by tilt and rotation is perfect for finishing work, landscaping, and precise material placement.
Key Applications & Uses
- •
Construction & Earthmoving: For precise trenching, grading, slope finishing, and loading trucks from any angle. - •
Demolition & Recycling: Allows grapples and pulverizers to rotate and tilt for grabbing, sorting, and positioning materials with incredible accuracy. - •
Landscaping & Agriculture: Perfect for using augers on slopes, grading with tilt, and handling materials with a grapple. - •
Utilities & Road Maintenance: Enables precise placement of materials in tight spaces and efficient cleaning of ditches and culverts.
Why Choose the Guchuan GC-180 Series? Your Competitive Advantage
- •
Maximize Machine Uptime & ROI: Change attachments in under a minute without leaving the cab. Your single machine can perform dozens of tasks in a day, dramatically increasing utilization and return on investment. - •
Enhance Job Site Safety: Eliminate the dangers associated with manual pin removal and attachment changes. The secure locking system prevents accidental detachment. - •
Superior Operator Efficiency & Comfort: Complete control from the cabin reduces operator fatigue and allows for more precise, efficient work, even in complex or confined spaces. - •
Reduce Operating Costs: Significantly lower labor costs for attachment switching and minimize wear and tear on your attachments and base machine by improving alignment and control. - •
Uncompromising Guchuan Quality: As a specialized manufacturer, we control every step of the production process, from design to final assembly, ensuring a product built to the highest standards of quality and performance. Our dedicated B2B support team provides expert technical guidance and after-sales service.
