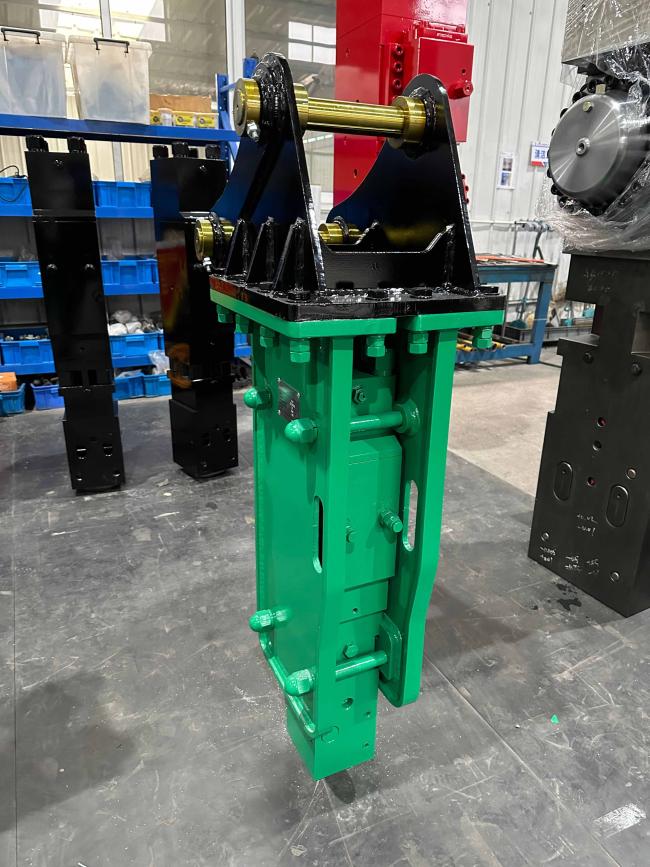

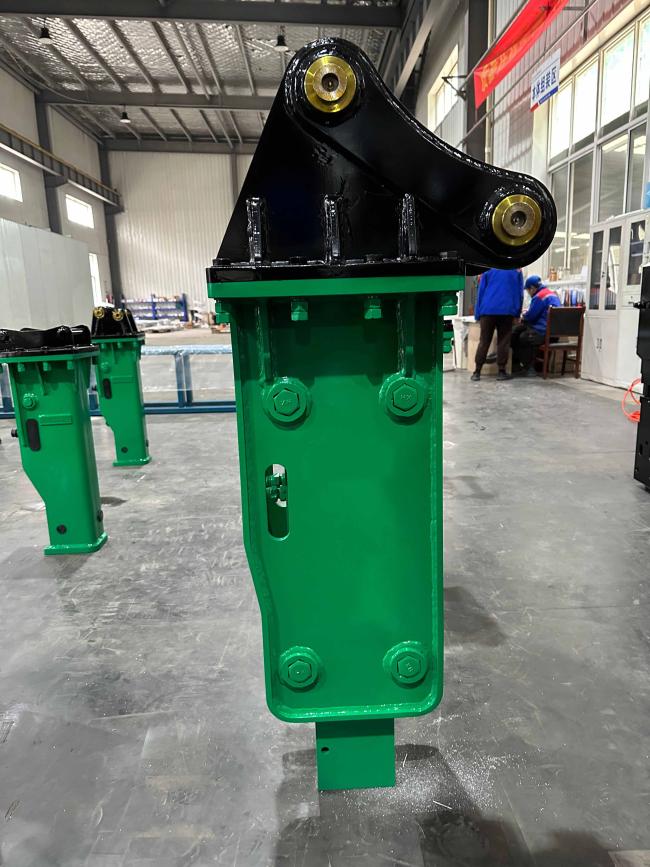

ALL Applicable Excavator Supply Silenced Type SB20 Hydraulic Rock Breaker Hammer Breaker For 1.2-3 Tons Mini Excavator

Description

This SB20 hydraulic breaker is an efficient breaker designed for 1.2-3 ton mini excavators. It adopts a silent design, which can effectively reduce noise pollution and reduce the impact on operators and the surrounding environment.
Its main features include:
1. Efficient power system: Equipped with efficient gas and oil pressure impact system, it can significantly increase the impact force while reducing the pressure on the excavator hydraulic system.
2. Wide applicability: It is suitable for small excavators of various brands with strong compatibility, with an operating pressure range of 90-120 kg/cm² and a hydraulic flow rate of 20-40 L/min.
3. Durability and low maintenance cost: It is made of high-strength steel and has undergone professional heat treatment process to ensure that the product is strong and durable. Its design is simple, with only two moving parts, which reduces maintenance requirements.
4. Shock-absorbing and noise-reducing design: It is equipped with a shock-absorbing shell to effectively reduce vibration and noise, protecting the excavator body and operators.

The SB20 hydraulic breaker is widely used in mining, tunnel excavation, infrastructure demolition, concrete crushing and other fields, and is an ideal accessory for small excavators.

Significant advantages in environmental protection:

• Significantly reduce noise pollution
• Silent breaker can significantly reduce working noise by using sound insulation materials, silencers and optimized hydraulic system design. For example, the silent breaker developed by a certain company can reduce the noise level by about 20 decibels under normal working conditions. This low-noise design is particularly suitable for use in urban centers, densely populated areas or environments with strict noise control requirements.
• Reduce dust and vibration pollution
• Silent breaker can effectively reduce the generation of dust and vibration during the crushing process. Its optimized breaker head design and shock absorption technology not only reduce the vibration of the equipment during operation, but also reduce the impact on the surrounding environment. For example, in mining and building demolition, silent breaker can reduce noise pollution by 50%.
• Energy saving and high-efficiency design
  Silent breaker adopts efficient hydraulic system and energy-saving design, which reduces energy consumption by about 15% compared with traditional equipment. At the same time, its crushing efficiency is about 30% higher than that of traditional equipment, further reducing energy consumption. This high-efficiency design not only reduces operating costs, but also meets environmental protection requirements.

Parameter

SEWOOMIC Hydraulic Breaker 3 major types:
>>>Side Type: Versatile application including rock broken, paving road, building demolition etc.

Side Type Features:

1.Overall length shorter.

2.Hook back things conveniently.

3.Maintenance-free.

>>>Top Type: Applied to special operation that in large elevation angle.

Top Type Features:

1.Easy to locate and control;

2.More conducive to excavator;

3.Weight lighter,the lower risk of broken drill rode

>>> Box/Silenced Type: Low noise, saving energy and protecting environment.

Box/Silenced Type Features:

1.Reduce noise to protect the environment.

2.Full-closed bracket protects the main body from damage.

3.Enhanced performance,productivity and durability.

Advantages Of Goochance Hydraulic Breaker
▶ Powerful Performance
Goochance hydraulic breaker became Lighter,Stronger and More Powerful than ever.

▶ Adjustable Frequency
Goochance hydraulic breaker intelligently selects the most economical striking frequency,improves production efficiency,does not waste energy and ensures the best power recovery of the next blow,and can cope with various working conditions.
▶ Easy to Maintenance
Everything has been carefully designed and maintenance is no longer a chore.

▶ Easy Operation
Goochance hydraulic breaker allows the operator to focus on the operation monitoring hydraulic parameters or power settings.
▶ Engineering and Innovation
From machining to final assembly,Goochance hydraulic breaker are manufactured with world-class technology,top raw materials and best steel to provide the highest quality and reliability.

▶ Optimal Greasing Systems
Goochance hydraulic breaker provides greasing device so the breaker always get more optimal grease supply.

Product Structure

• Through Bolt

Four bolts which connect the back head cylinder & front head.

• Back Head

The main function is to store nitrogen.

• Reversing Valve

Control the piston to move up and down at specified frequency.

• Cylinder

Here is the heart of the breaker, including the hydaulic circulation system to control the piston reciprocation.

• Piston

Transform the hydaraulic power into strike power,punch the chicel to break.

• Fronft Head

The function is to support the cylinder and fix the chicel,to avoid the shaking force break the cylinder when operating.

• Chisel

Chisel is specially strengthened for wearing

Our innovations
we can supply full hydraulic breakers of MB1500 and MSB250 foryears.

Currently we are developing new types hydraulicbreakers and will come out in 2024.

OEM & ODM
We offer our brand of hydraulic breakers in addition to these, we also support OEM and ODM service.

OUR TEAM
Team we have 4 girls to run and we can communicate fluently in English/Japanese/Mexico

WARRANTY
12-18 months on all our hydraulic breakers and 6 months on spare parts

OUR COMMITMENT
We will be your reliable partner in the construction machinery industry.

Our Service

• Pre-sale services:

1.Provide custom design service for client

2. Design and manufacture according to special requirement of client

3. Provide personnel technical traning for clients

• Medium-sales service:

1.Provide best forwarder option in cheap shipping seacost ahead of loading

2. Provide material/heat treatment/inspection report before loading

• After-sales services:

1.Assist clients to prepare for the construction scheme

2.Provide install and debug equipment online service
3.Provide traning for front-line workers from clients

OEM&ODM
We supply our GOOCHANCE brand hydraulic breakers, besides these, we also support OEM & ODM service

Warranty
All our hydraulic breakers 12-18 months and spare parts 6 months.

Our Team
We have 4 girls to run and we can communicate in English/Japanese/Mexico smoothly.

Our promise
We will be your reliable partner in construction machinery industry.

FAQ

Q:Are you a manufacturer ?
A: Yes, our factory was established in 2010
Q: Are you sure your product will fit my excavator?
A. Our hydraulic breakers are suitable for most excavator. Show us your excavator model, we'l confirm the solution.
Q:How about your products warranty?
A: 12 months warranty for hydraulic breakers and 6 months for spare parts
Q: Can you produce according to customer's design?
A.Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.
Q: What's the MoQ and payment terms?
A: MOQ of hydraulic breaker is 1 set. Payment via T/T, Western Union accepted, our terms can be negotiated.
Q: How about delivery term ?
A: 5-25 working days after payment

Q: How about the package?
A: Our hydraulic breakers wrapped by stretch film, packed by pallet or polywood case, or as requested
Q:Which country have you exported?
A: Saudi Arabia, Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc
