Silicone Line Drawing Machine for Seamless Bonded Fashion Bras Easy Production Line Setup
Price:
$10,000 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Product Description
Product Description

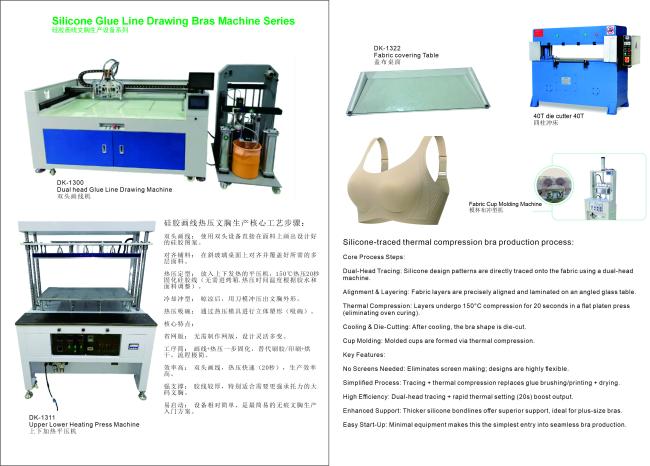

Upgrade your lingerie factory with our state-of-the-art All-in-One Automatic Bra Production Line. This innovative machine integrates bra cup thermoforming, precision silicone line drawing, and seamless hot-air bonding into a single, streamlined automated process. Designed for efficiency and intelligence, it eliminates the need for multiple separate machines, significantly reducing floor space, energy consumption, and manual labor. Powered by a centralized PLC control system, it offers a simplified, high-yield solution for producing premium seamless bras, sports bras, and bralettes.
Specification
Dispensing Ratio Accuracy | ±1% |
Metering Method | Stepper Motor + Gear Pump |
Control System | Dedicated Control System + Xinje PLC + Touch Screen |
Mixing System | Static Mixing (Dynamic Stirring Mixing Optional) |
Sliding Device | Servo System + 5M Belt Silent High-Speed Module |
Working Travel Range (XYZ) | 1100mm × 900mm × 25mm |
Equipment Dimensions | 2100mm × 1300mm × 1500mm |
Maximum Working Speed (X/Y | 18000mm/s |
Working Air Pressure | 0.2~9 kgf/cm² |
Voltage/Power Consumption | AC220V / 1800W |
Equipment Weight | 400kg |
FAQ
Q1: How does your machine guarantee high-precision silicone application for seamless bras?
A: Our equipment features a high-precision dispensing system with ±0.1mm accuracy. Guided by imported motion controllers and vision-assisted alignment, it eliminates cup misalignment and asymmetry, reducing material waste by up to 25% compared to manual methods and ensuring every bra is perfectly crafted.
Q2: What makes your silicone bonding technology superior to traditional adhesives?
A: We use medical-grade, dynamic-curing silicone. It passes 50+ industrial wash tests, remains flexible at body temperature, and is FDA/REACH compliant, ensuring zero skin irritation. Unlike traditional glues, it doesn't become brittle, offering lasting comfort and durability.
Q3: Can the machine handle delicate fabrics like lace and sheer materials?
A: Absolutely. A dedicated “Delicate Fabric Mode” automatically reduces nozzle pressure by 30% and utilizes ultra-fine 0.3mm tips. This ensures flawless, non-damaging silicone application on the most intricate lace bralettes and sheer fabrics.
Q4: How is consistent silicone viscosity maintained during production?
A: Consistency is key. Our machine integrates a closed-loop temperature control system (20°C±1°C) and real-time viscosity monitoring. The system triggers an automatic alert if viscosity deviation exceeds 5%, guaranteeing uniform application quality throughout long production runs.
Q5: Compared to a traditional multi-machine setup, how much does this all-in-one line save on energy and maintenance?
A: The integrated design eliminates multiple independent power systems. On average, it reduces energy consumption by 20-25%. Maintenance is also simplified and less costly, as you maintain one centralized system instead of 3-4 separate machines. Annual estimated maintenance costs are typically 30% lower, and our modular design ensures quick part replacement to minimize downtime.
