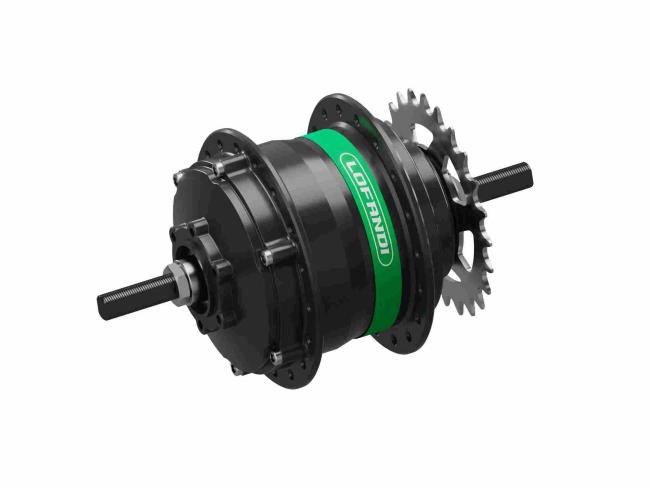

Intelligent 5 Speed Internal Gear Hub Gear Hybrid Bike Sealed
The Intelligent 5-Speed Gear Hub is designed for e-bike drivetrain projects that need electronic internal shifting, broader city riding coverage and a cleaner rear hub structure. Based on LG-P7100-5D, this technology keyword page focuses on the 5-speed intelligent drivetrain value of the product rather than presenting it as a motor or a generic mechanical hub.
For smart e-bike platforms, drivetrain intelligence depends on how the gear hub works with the vehicle-side system. LG-P7100-5D combines electronic shifting parameters with an internal gear structure, helping OEM teams review shifting behavior, power supply conditions and controller-side matching as part of the complete e-bike drivetrain.
For product differentiation, the five-speed internal structure gives brands a stronger drivetrain story than a basic single-speed or manual city bike configuration. The gear mechanism is enclosed inside the rear hub shell, supporting a cleaner appearance while keeping the main transmission system protected for daily electric bicycle use.
- 5-Speed Intelligent Drivetrain Focus: Built around the keyword value of electronic internal shifting for smart e-bike platforms.
- LG-P7100-5D Reference Model: Uses the E05 electronic 5-speed internal gear hub as the source-backed product basis.
- Electronic Internal Shifting: Supports intelligent drivetrain planning with vehicle-side electrical matching.
- Broader Riding Coverage: Designed for e-bike projects that need more drivetrain flexibility than basic urban hub options.
- Sealed Rear Hub Structure: Keeps the gear mechanism inside the hub for cleaner rear-wheel drivetrain architecture.
- Electrical Matching Review: Requires confirmation of voltage range, power supply, standby current and baud rate during OEM development.
- 6-Bolt Disc Brake Support: Matches modern e-bike rear-wheel braking layouts.
- Clear Product Boundary: LG-P7100-5D is an electronic 5-speed internal gear hub and should not be described as a hub motor.
| Parameter | Specification |
|---|---|
| Product Name | Electronic 5-Speed E-Bike Gear Hub |
| Model | LG-P7100-5D |
| Product Type | 5 Speed Internal Gear Hub |
| Product Category | 5 Speed Internal Gear Hub |
| Number Of Speeds | 5 |
| Overall Gear Ratio | 249% |
| Gear Ratios | 0.74 / 1.00 / 1.30 / 1.56 / 1.84 |
| Brake Type | 6-Bolt Disc Brake |
| Spoke Size | #13 / #14 |
| O.L.D. | 142 mm |
| Axle Length | 198 mm |
| Thread Size | M12 x 1.25 |
| Spoke Holes | 36H |
| Color | Black |
| Weight | 2.15 kg |
| Operating / Storage Temperature | -30-80℃ / -40-85℃ |
| Waterproof Rating | IPX6 |
| Certification | RoHS / REACH |
| Operating Voltage Range | 15V-60V DC |
| Power Supply Requirement | ≥2.5A @ 36V |
| Standby Current | 20mA @ 36V |
| Baud Rate | 250K bps |
LG-P7100-5D uses an internal 5-speed gear structure to change transmission ratios inside the rear hub. Electronic shifting support helps the drivetrain become part of the e-bike system rather than a purely mechanical rear-wheel component.
The intelligent drivetrain value comes from combining internal gear architecture with electrical matching requirements. OEM teams should review the hub together with the controller interface, power supply conditions, brake layout and rear frame structure so the drivetrain can be validated as part of the complete vehicle platform.
Because the gear mechanism is enclosed inside the hub, the rear-wheel layout can be cleaner than external shifting systems. This supports smart e-bike projects where drivetrain integration, sealed structure and vehicle-side control compatibility are part of the product positioning.
LG-P7100-5D is suitable for smart e-bikes, premium commuter e-bikes, connected electric bicycles, shared mobility platforms and OEM drivetrain projects that require an electronic 5-speed internal gear hub with system-level matching review.
It is especially useful for projects where the brand wants to highlight intelligent drivetrain design, integrated rear-wheel structure, electronic shifting and cleaner e-bike platform architecture.
Before sampling or production, OEM customers should confirm frame drawing, frame O.L.D., brake layout, spoke specification, voltage range, controller interface, power supply conditions, communication-related requirements, waterproof requirements and final image/SKU matching.
Q: What is the main technology keyword focus of this page?
A: The focus is 5-speed intelligent drivetrain positioning for LG-P7100-5D electronic internal gear hub projects.
Q: Is LG-P7100-5D a hub motor?
A: No. The source parameters identify LG-P7100-5D as an electronic 5-speed internal gear hub, not a hub motor.
Q: What makes it an intelligent drivetrain product?
A: It combines electronic internal shifting with vehicle-side electrical matching requirements for smart e-bike drivetrain integration.
Q: What brake interface does this model use?
A: The reference parameter table lists 6-bolt disc brake support.
Q: What is the backend product category?
A: The backend product category should be 5 Speed Internal Gear Hub.
Q: What should be confirmed before OEM sampling?
A: Confirm frame matching, brake layout, voltage range, controller interface, power supply, baud rate and waterproof requirements before sampling.
