3.2V 18Ah Pre Welded 32700 LiFePO4 Battery 3P 6000mAh Cell For Solar Energy Storage
Price:
Negotiable
MOQ:
100PCS
Delivery Time:
10-15 days
Brand:
MEISAEN
Product Description
Product Short Intro
This 32700 LiFePO4 battery module is factory pre-spot welded with three Grade A 6000mAh cylindrical cells in parallel (3P configuration). Combined nominal capacity reaches 18000mAh(18Ah) at 3.2V. Pre-assembled design eliminates extra spot welding work for DIY users, greatly shortening your battery pack production time. Featuring high safety and stable discharge performance, it is widely used in various off-grid power projects.
Product Advantage
-
- Pre-welded 3P parallel structure: 3 pieces 32700 6000mAh LiFePO4 cells factory assembled, no extra welding required.
- Grade A new lithium iron phosphate cell with consistent internal resistance and voltage, no recycled or refurbished cells.
- LiFePO4 core chemistry with excellent safety performance, no risk of fire or explosion under normal use; over 3000 charge-discharge cycles.
- Low monthly self-discharge rate, stable output voltage, wide operating temperature range for outdoor & indoor equipment.
- Flexible series connection: multiple modules can be connected in series to build 12V,24V,48V customized battery packs.
Wide Application Range

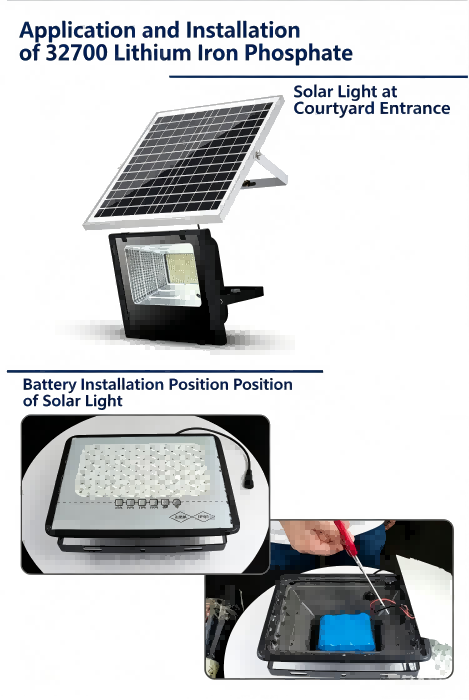

• Off-grid solar energy storage system & home backup power
• Portable outdoor power station, camping & RV emergency power supply
• E-bike, low-speed scooter, golf cart battery DIY assembly
• UPS, small industrial equipment and monitoring device backup power
• Portable outdoor power station, camping & RV emergency power supply
• E-bike, low-speed scooter, golf cart battery DIY assembly
• UPS, small industrial equipment and monitoring device backup power
| Item | Parameter |
|---|---|
| Model | 32700 LiFePO4 3P Parallel Module |
| Chemistry | Lithium Iron Phosphate(LiFePO4) |
| Nominal Voltage | 3.2V |
| Single Cell Capacity | 6000mAh(6Ah) |
| 3P Total Capacity | 18000mAh(18Ah) |
| Cell Size | Φ32×70mm |
| Cell Grade | Grade A Brand New |
| Structure | 3 Cells Parallel(3P), Factory Pre Spot Welded |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charging Current | 0.2C=3.6A |
| Max Continuous Discharge | 1C=18A |
| Cycle Life | ≥3000 cycles(0.5C charge/discharge,80%DOD) |
| Working Temp | Charge:0~45℃;Discharge:-20~60℃ |
| Monthly Self-discharge | ≤3% |
