K5V80DT-9N61 Hydraulic Main Pump 14534503 for EC160 Wear Resistant
Price:
Negotiable
MOQ:
1
Delivery Time:
1-7 days
Brand:
MSGB
Product Description

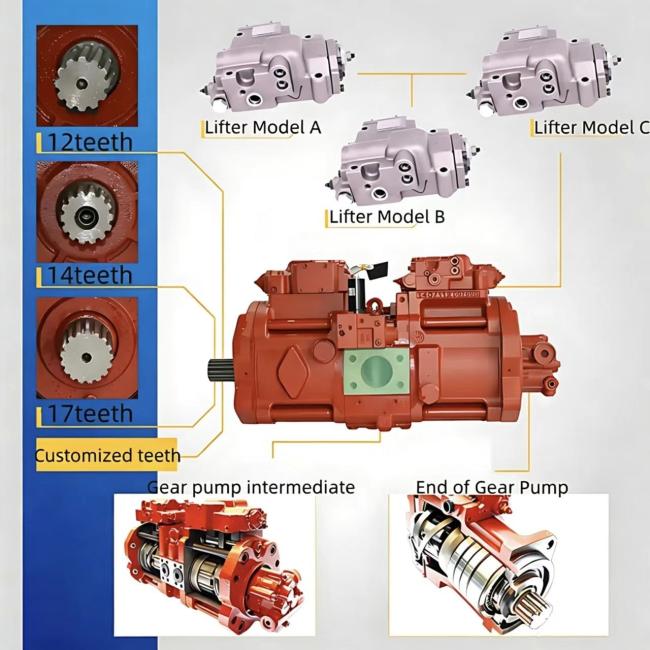

K5V80DT-9N61 Hydraulic Main Pump 14534503 for EC160
High-quality K5V80DT-9N61 hydraulic main pump, 14534503 OEM grade piston pump, heavy-duty replacement part for EC160 excavator, stable pressure & long service life.
Product Overview
This high-quality K5V80DT-9N61 hydraulic main pump follows strict OEM grade hydraulic pump manufacturing standards, corresponding to the genuine 14534503 piston pump specification tailored for construction equipment. Serving as a professional EC160 hydraulic pump, this rugged heavy-duty hydraulic piston pump acts as a reliable excavator main hydraulic unit and premium excavator replacement pump, perfectly compatible with EC160 excavator models.
Adopting high-precision machined internal components and rigorous factory quality inspection, this hydraulic unit delivers ultra-stable pressure and consistent flow output. It effectively resolves common hydraulic issues including insufficient digging force, sluggish boom response, pressure fluctuation, abnormal operating noise and internal leakage, fully restoring factory-level hydraulic performance and operational stability for EC160 excavators across earthmoving, quarrying and heavy construction scenarios.
Key Features & Benefits
- Exact OEM Fit & Compatibility: Manufactured with standard OEM dimensional and mounting parameters, this reliable K5V80DT-9N61 hydraulic main pump achieves seamless assembly for EC160 excavators. As a genuine alternative to the 14534503 piston pump, it supports direct bolt-on installation without any on-site modification, greatly shortening repair cycles and cutting labor costs.
- Stable & Powerful Hydraulic Performance: Featuring optimized swash plate and piston assembly structure, this robust heavy-duty hydraulic piston pump maintains steady pressure and flow during frequent cyclic operations. It eliminates power attenuation and pressure deviation, ensuring sustained and reliable digging efficiency for various heavy-load construction tasks.
- High Wear Resistance & Long Lifespan: Core moving components adopt high-strength alloy steel with professional anti-wear and thermal stabilization treatment. This durable excavator main hydraulic unit delivers low friction operation and strong structural stability, adapting to long-duration, high-intensity continuous work of EC160 excavators with minimal failure risks.
- Premium Sealing & Leak-Proof Performance: Equipped with imported high-pressure wear-resistant sealing kits, this premium EC160 hydraulic pump effectively blocks internal hydraulic leakage and external oil seepage. It prevents dust, sediment and muddy water from invading the hydraulic system, protecting core parts and reducing routine maintenance frequency.
- Cost-Effective Repair Solution: Delivering full OEM grade hydraulic pump performance via strict factory testing, this high-quality excavator replacement pump offers a budget-friendly alternative to original parts, effectively lowering long-term equipment operation and maintenance expenses.
Technical Specifications
| Product Name | Hydraulic Main Pump / Hydraulic Piston Pump |
|---|---|
| Excavator Model | EC160 |
| Pump Model | K5V80DT-9N61 |
| Part No. | 14534503 |
| Displacement (ml/r) | 80 |
| Nominal Pressure (Mpa) | 34.3 |
| Max Pressure (Mpa) | 39.2 |
| Rotate Speed (rpm/min) | 2460 |
| Teeth | 12T |
| Rotation (R/L) | R |
| Variable Single/Double Hydraulic Pump | Variable Double Hydraulic Pump |
| Fluid Medium | Hydraulic Oil |
| Operating Temperature (°C) | -20°C~80°C |
| Weight (Kg) | 105 |
| Dimension (L*W*H) (mm) | 600*240*350 |
| Package (Wooden/Cartons) | Wooden |
| Color | Customizable |
| Application | Excavator Main Hydraulic System, Earthmoving, Quarrying, Heavy Construction |
Frequently Asked Questions
Q1: Is K5V80DT-9N61 hydraulic main pump compatible with EC160?
A1: Yes, our premium K5V80DT-9N61 hydraulic main pump strictly follows OEM grade hydraulic pump specifications and matches the standard of the 14534503 piston pump. This dedicated EC160 hydraulic pump serves as a trustworthy excavator replacement pump, achieving perfect assembly and operational compatibility with EC160 excavators without any modification.
Q2: What are the common faults of EC160 hydraulic piston pump?
A2: Common operational defects of the heavy-duty hydraulic piston pump include insufficient digging pressure, slow hydraulic response, abnormal noise and oil leakage, mainly caused by contaminated hydraulic fluid, aging seals and long-term overload operation. Replacing with our high-performance excavator main hydraulic unit can fully restore the overall hydraulic system performance.
