SB121 Hydraulic Breaker Piston OEM Alloy Hammer Piston
Price:
Negotiable
MOQ:
1
Delivery Time:
1-7 days
Brand:
MSGB
Product Description

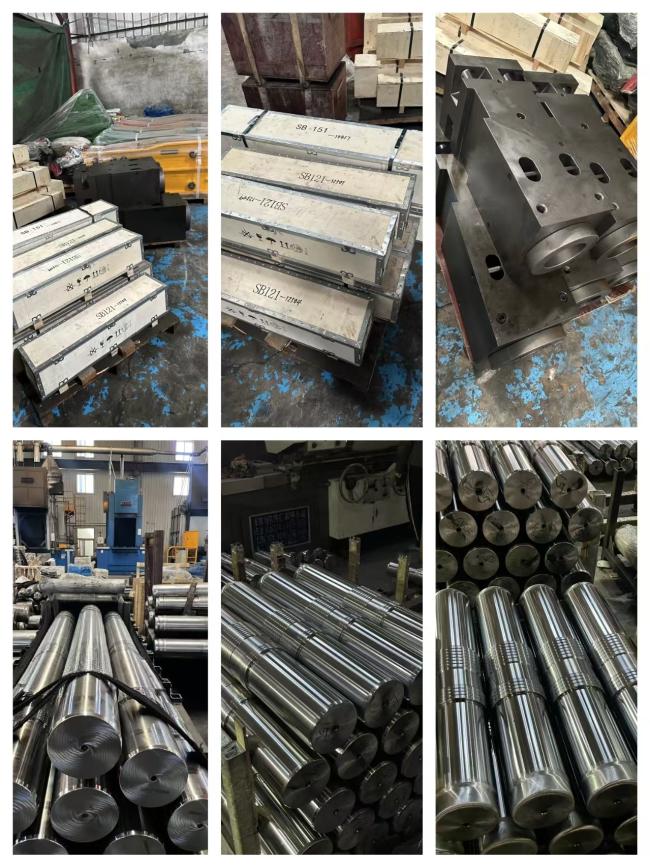

High hardness 42CrMo SB121 hydraulic breaker piston for Soosan SB121 excavator hammer, fully heat treated wear-resistant replacement spare parts.
Working Principle
- Return stroke: High-pressure hydraulic oil enters piston lower cavity, push piston upward to compress rear accumulator nitrogen, hydraulic energy converts into nitrogen compression potential energy for storage.
- Commutation stage: Piston moves to upper limit to trigger main reversing valve, hydraulic oil circuit instantly switch flow direction.
- Power stroke: High-pressure oil flows into piston upper cavity + expanded nitrogen releases stored energy, dual force push piston accelerate downward at high speed.
- Impact working: Piston bottom end face strike chisel instantly, mechanical impact force transfers to rock & concrete for breaking operation.
- Single blow finished, oil circuit reset, piston starts new round return stroke, cycle continuous striking work.
| English Item | Technical Data |
|---|---|
| Product Name | SB121 Hydraulic Breaker Alloy Piston |
| Applicable Model | Soosan SB121,SB121TS,SB121TR |
| Matching Excavator | 28~35 Ton Heavy Excavator |
| Raw Material | High-grade 42CrMo Alloy Steel |
| Surface Hardness | HRC59~63 |
| Core Hardness | HRC40~44 |
| Working Pressure | 105~132MPa |
| Matching Clearance | 0.05~0.07mm |
Advanced Production Technology
- Raw steel incoming inspection: material spectrum analysis, tensile strength & metallographic detection, reject inferior alloy blank.
- High-temperature free forging to compact internal metal grain, remove internal material shrinkage cavity & loose defect.
- Rough turning + semi-finish turning via CNC machining center to reserve finishing allowance.
- Professional heat treatment: carburizing→high temp quenching→low temp temper→liquid nitrogen cryogenic treatment→stress relief temper.
- Precision cylindrical grinding + end face surface grinding to control size tolerance within OEM standard.
- Appearance full inspection one by one: screen crack, bump, dimensional out-of-tolerance defective products.
- Random loading impact fatigue test & clearance fitting test before finished storage.
FAQ
Q1: Which breaker fits this SB121 alloy piston?
A1: Specially matched for Soosan SB121,SB121TS,SB121TR hydraulic breaker for 28~35 ton excavator.
Q2: What raw material is your SB121 piston made from?
A2: Premium forged 42CrMo alloy steel with full professional heat treatment.
Q3: What causes original piston transverse crack during working?
A3: Inferior raw material, unqualified heat treatment, overfilled nitrogen pressure or long-time overload operation.
Q4: Can I buy single piece sample before bulk order?
A4: Sample purchase is available, big bulk order gets preferential tiered price and priority shipment.
