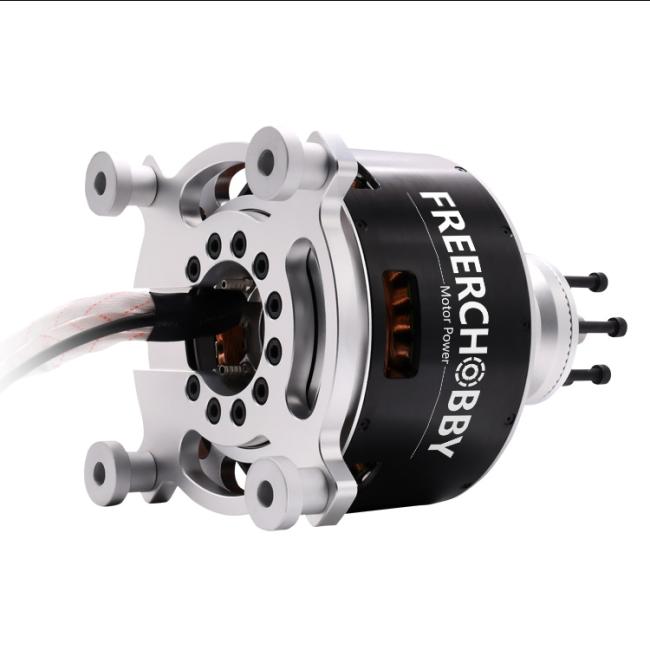

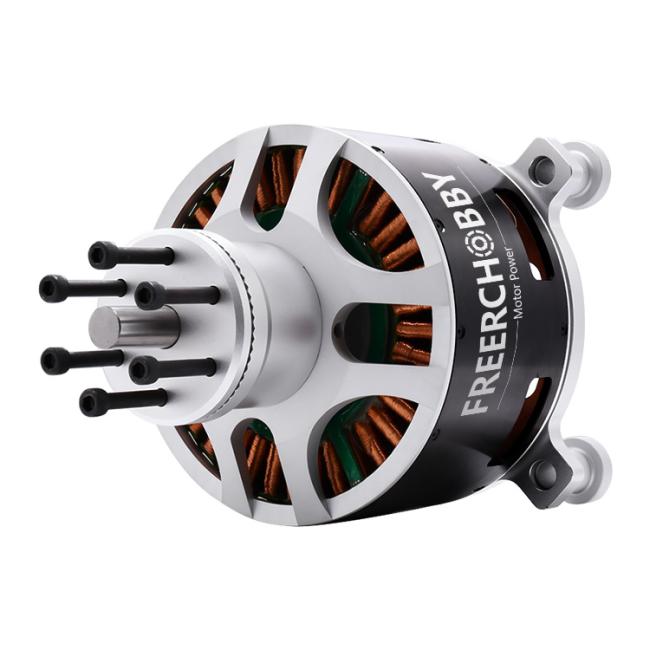

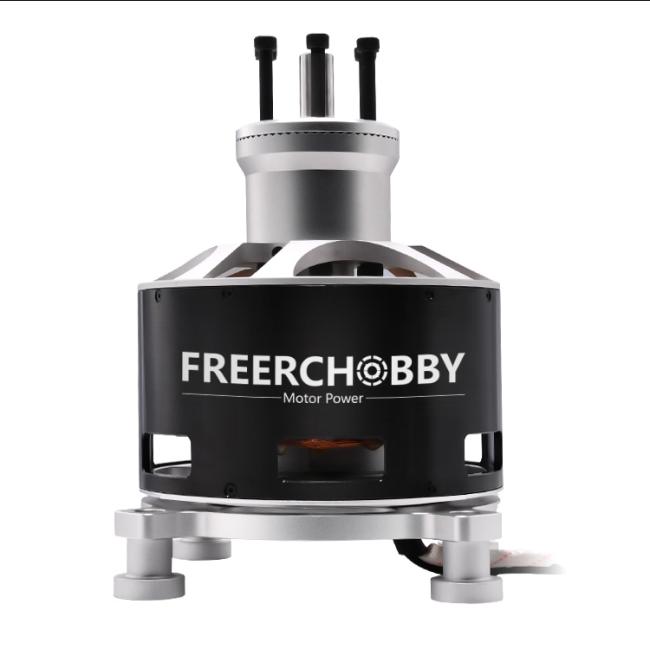

Freerchobby 154120 40KW 75Nm 48V 72V 96V 40KW Sensored BLDC Brushless Electric Motor for Motorcycle Bike Go Karts Kit

Price Negotiable
Price: $820-880 / piece
MOQ: 1 piece
Delivery Time: Negotiable
Brand: Freerchobby
Product Description
Product Description
Specification
Max Power
40KW Watts
Max Current
300Amps
Max Volts
12S-28S

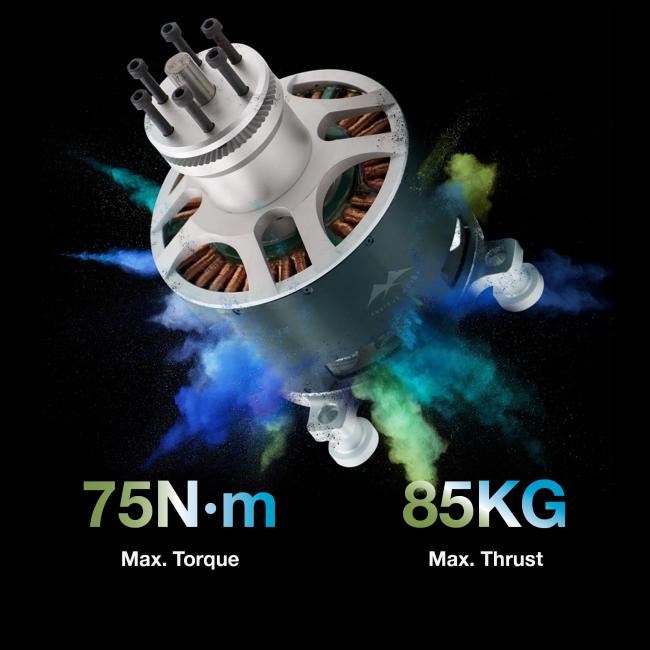

Max Torque
75Nm
Motor Resistance
hm
Recommend ESC
28S 350A
Weight: 1
5900g
The motor length
115mm
The motor diameter
154mm
SHAFT
Diameter 15mm with keyway
Motor Wire
180mm high temperature wire.
Wire configuration:
Blue = A Black = B Yellow = C
Stator
0.2mm thickness lamination japan steel
Magnet
N45SH high temp curve magnet
Motor pole
40
Sensor Wire:
Standard RC Sensor Wire JST-ZH 6pin 1.5mm or 2.0mm pitch

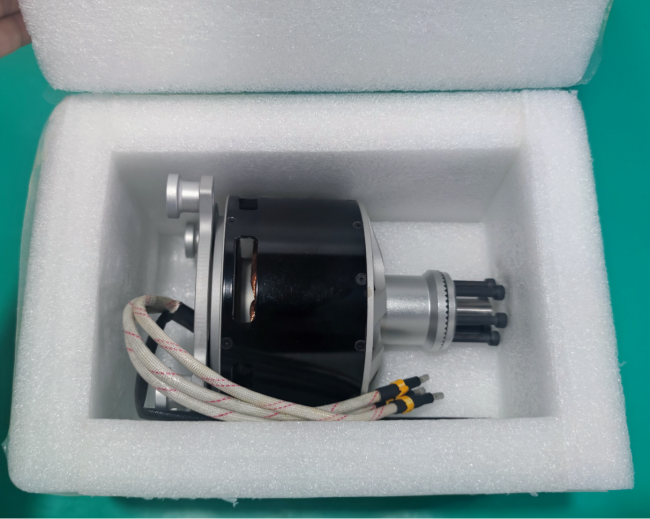

Packing & Delivery
