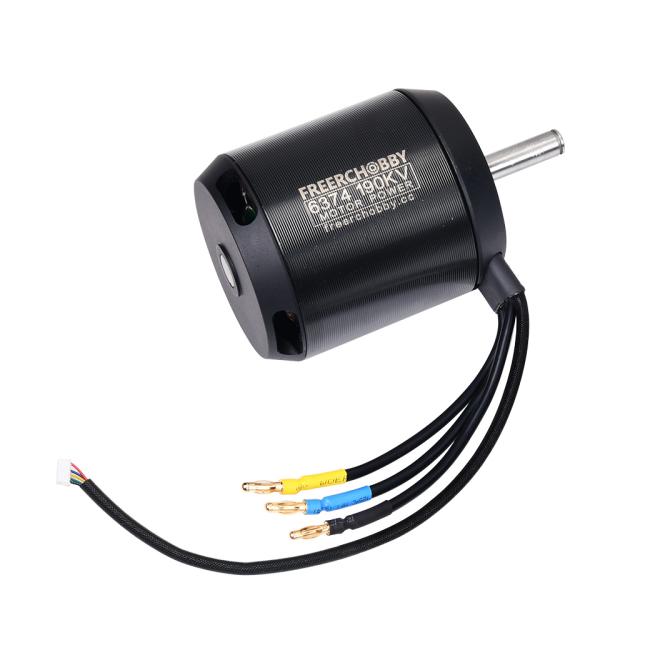

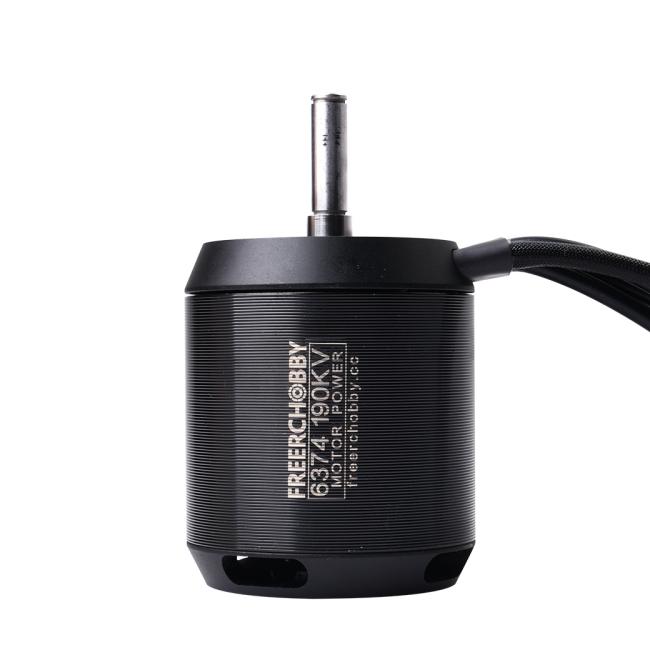

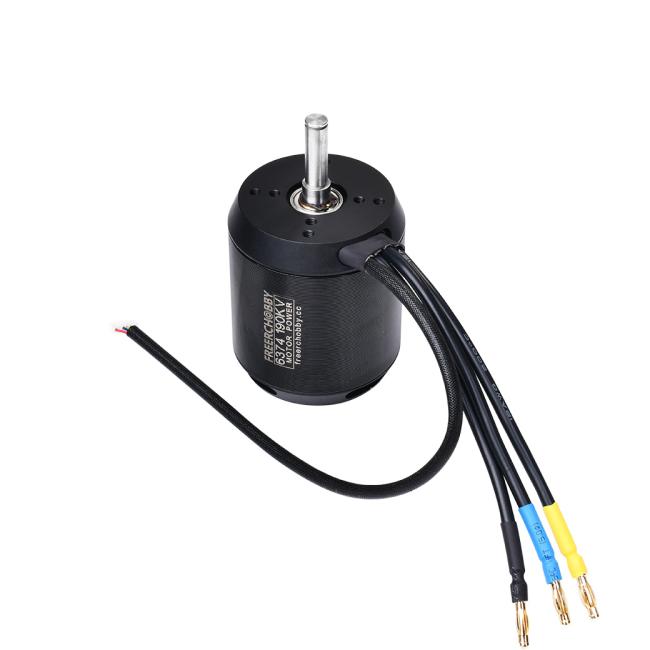

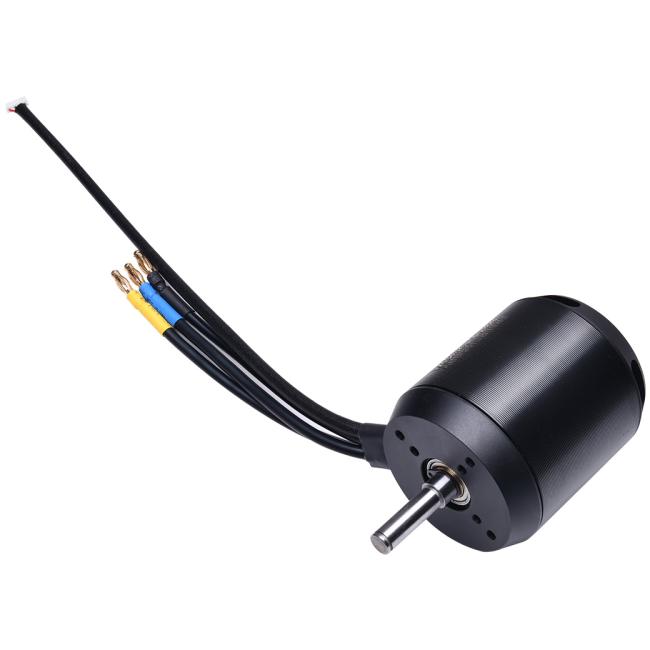

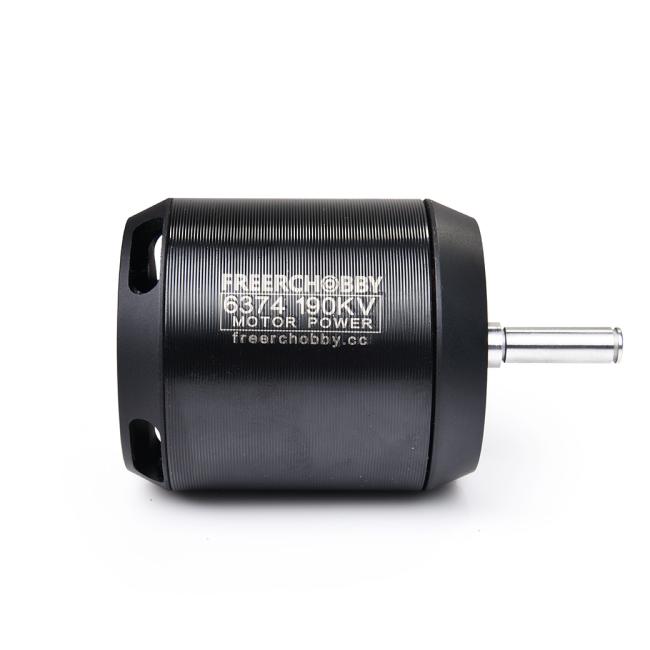

Freerchobby 6374 Brushless Dc Motor 24v, 36v 48v for E Boards Skateboard Scooter Bike

Price Negotiable
Price: $54-69 / set
MOQ: 1 set
Delivery Time: Negotiable
Brand: Freerchobby
Product Description
Product Description
Specification
Max Power
3250 Watts
Max Current
90Amps
Max Volts
3S-16S
Max Torque
8Nm
Motor Resistance
0.05Ohm
Recommend ESC
3-16S 100A
Weight: 1
860g
The motor length
74mm
The motor diameter
63mm
SHAFT
Diameter 8mm shaft with keyway
Motor Wire
130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A Black = B Yellow = C
Stator
0.2mm thickness lamination japan steel
Magnet
N45SH high temp curve magnet
Motor pole
14
Sensor Wire:
Standard RC Sensor Wire JST-ZH 6pin 1.5mm or 2.0mm pitch
Internal PCB
120 Degree Hall Effect Sensors.

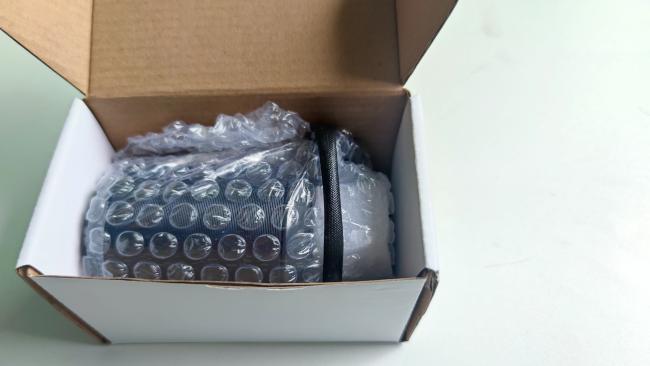

Packing & Delivery
