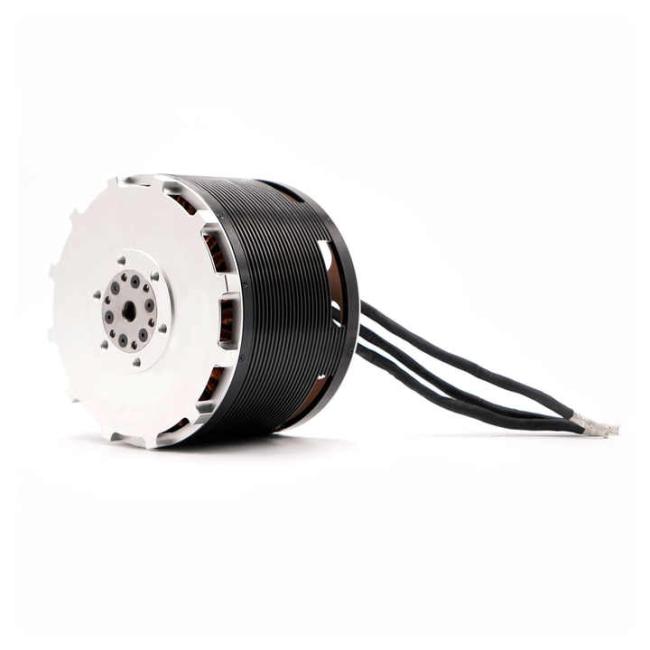

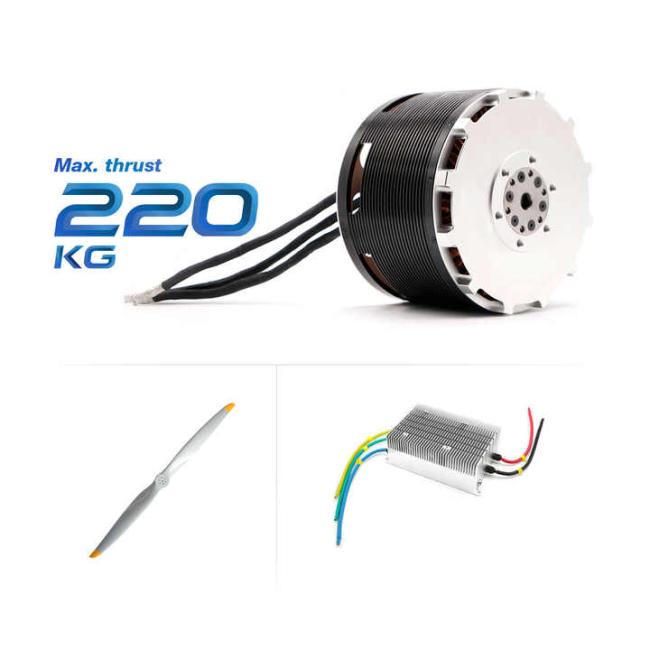

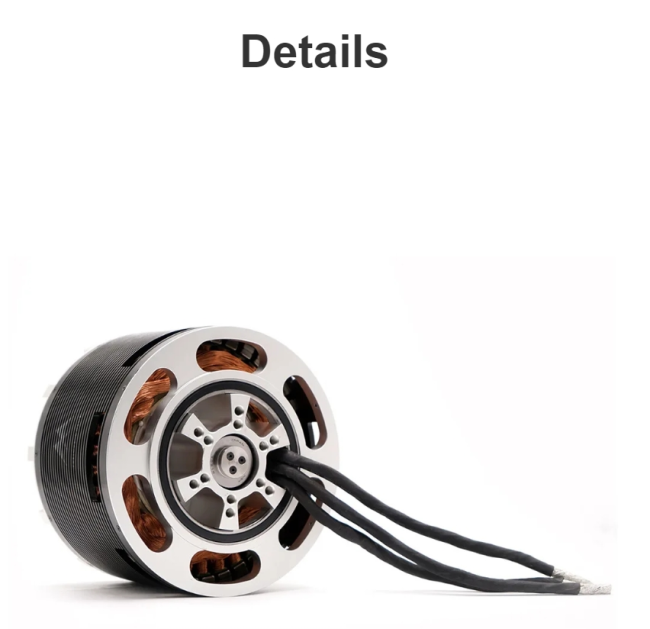

FRC 240150 210KG Thrust Quadcopter UAV Evtol Manned Heavy Lift Drone Brushless DC Outrunner Motor Permanent Magnet Fly Taix
Price:
$2,950-3,500 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Freerchobby
Product Description
| throttle - % | PWM - us | Voltage - V | Current - A | Thrust(kg) - | torque - N*m | RPM | Power(W) | Shaft power(W) | Motor effiency - % |
Propeller effiency - gf/W |
Propeller effiency - gf/W |
| 10 | 1180 | 447.9 | 0.29 | 770 | 0.63 | 150 | 129.9 | 9.9 | 7.6 | 77.8 | 5.9 |
| 20 | 1266 | 447.8 | 1.8 | 9876 | 8.28 | 510 | 806 | 442.2 | 54.9 | 22.3 | 12.3 |
| 30 | 1352 | 447.8 | 6.21 | 27851 | 23.28 | 840 | 2780.8 | 2047.8 | 73.6 | 13.6 | 10 |
| 40 | 1437 | 447.4 | 15.4 | 54814 | 46.19 | 1170 | 6890 | 5659.3 | 82.1 | 9.7 | 8 |
| 50 | 1522 | 447 | 30.52 | 88833 | 74.92 | 1470 | 13642.4 | 11533 | 84.5 | 7.7 | 6.5 |
| 60 | 1608 | 446.3 | 52.48 | 127686 | 109.2 | 1770 | 23421.8 | 20240.7 | 86.4 | 6.3 | 5.5 |
| 70 | 1694 | 445.3 | 82.84 | 169561 | 147.98 | 2070 | 36888.7 | 32077.6 | 87 | 5.3 | 4.6 |
| 80 | 1779 | 444.7 | 101.36 | 194034 | 168.53 | 2190 | 45074.8 | 38650 | 85.7 | 5 | 4.3 |
| 90 | 1864 | 444.7 | 105.15 | 201169 | 174.59 | 2190 | 46760.2 | 40039.8 | 40039.8 | 5 | 4.3 |
| 100 | 1950 | 445 | 96.52 | 191117 | 164.44 | 2190 | 42951.4 | 37712.1 | 87.8 | 5.1 | 4.4 |
