Our drone propulsion products are based on our over 20 year's experience in designing RC hobby brushless motor. With so many years' experience, Our engineer team can R&D rapidly design and manufacture electric motor or generator. to be combined in order to enhance the thermal, mechanical and electromagnetic properties of the motor.
FRC240110 Hybrid VTOL UAV Airplane 170kg Thrust Cargo Delivery Transport Fixed Wing DC Outrunner Brushless Permanent Magnet
Price:
$1,940-2,095 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
FreeRcHobby
Product Description

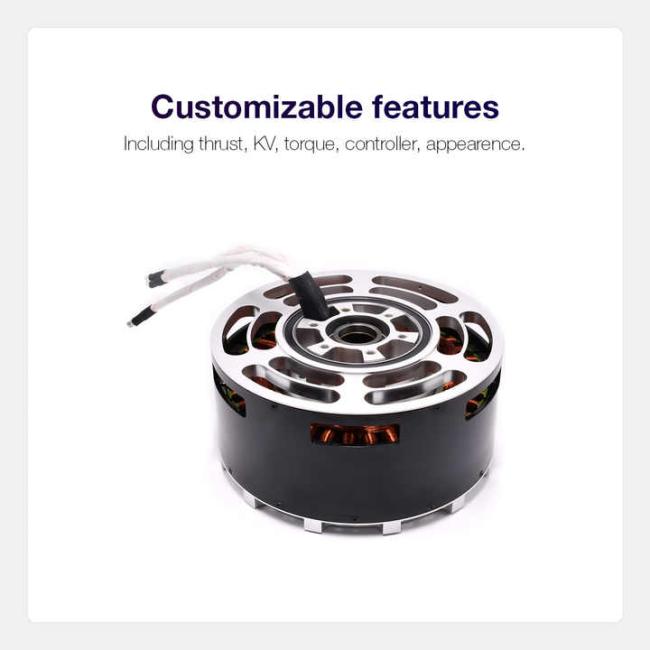

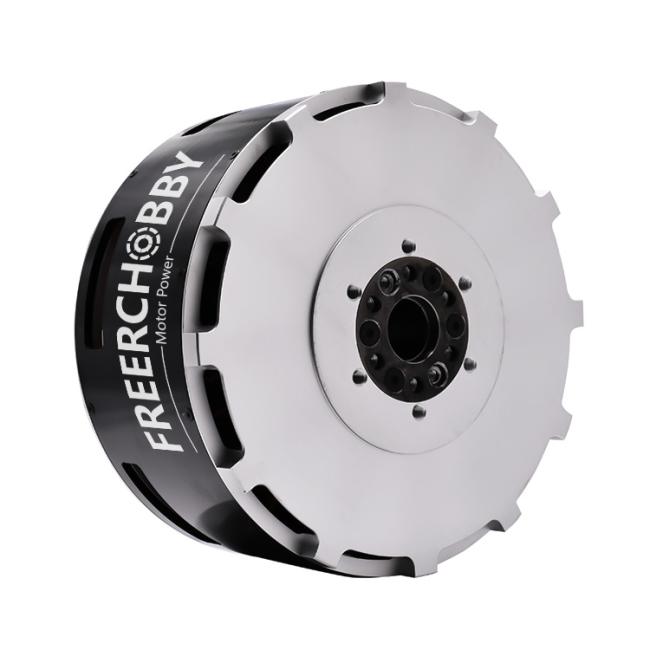

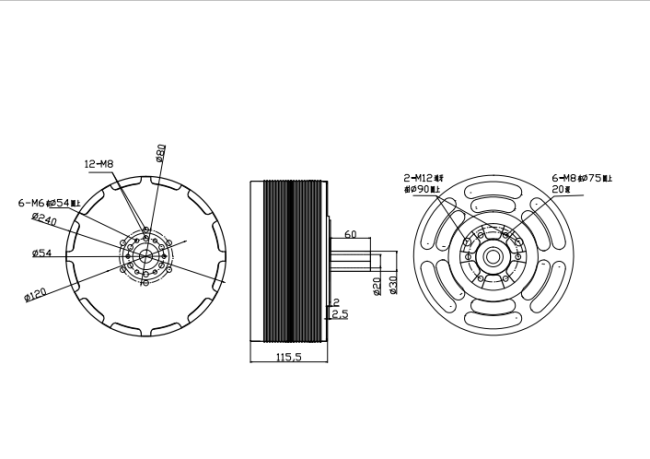

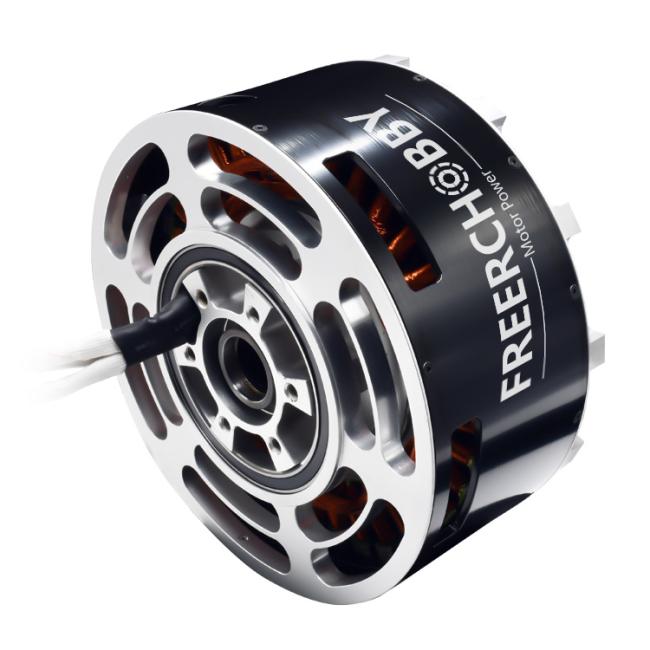

240110 brushless motor
Freerchobby is a leading developer of next-generation motors for UAVs (unmanned aerial vehicles) and drones. Our multiple slot and pole design are designed for mission-critical applications, providing superior performance without compromising on reliability or durability.

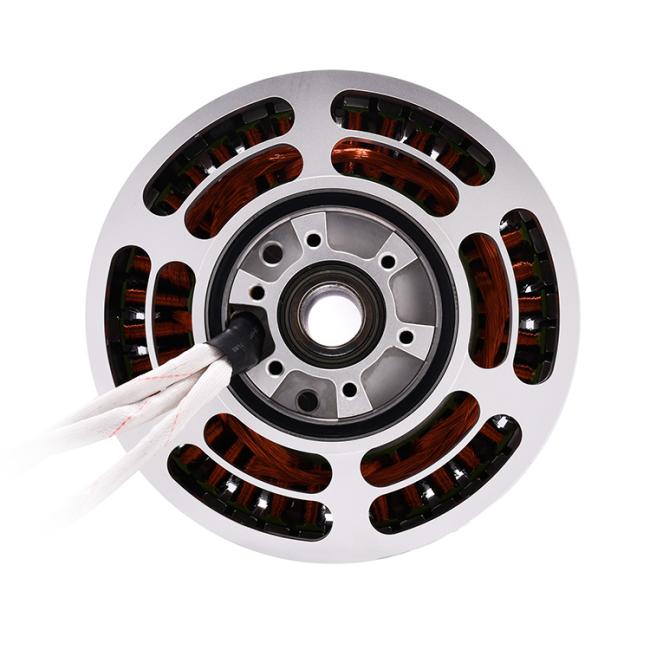

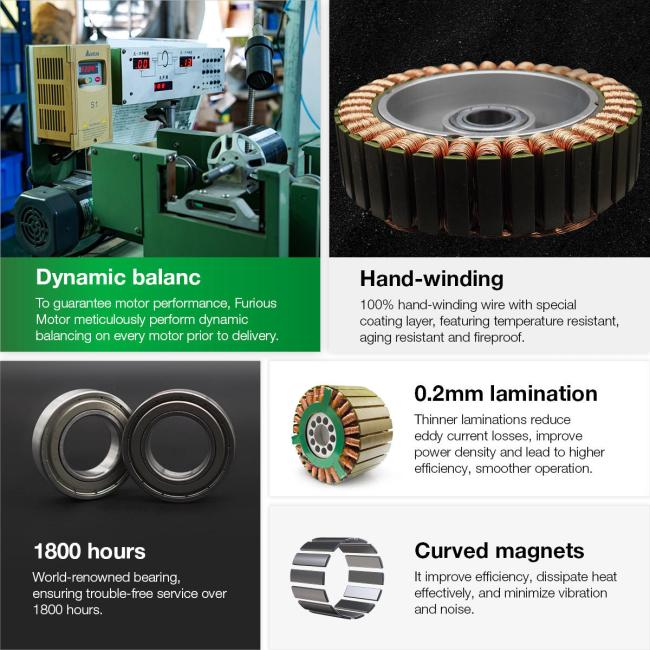

Big bearing supports and hollow shaft design
Our multicopter aerial platforms feature an ultra-lightweight aluminium design for superior endurance, and Freerc motors, ESCs
(Electronic Speed Controllers) and propellers are ideal solutions for superior drone flight control, stability, and safety.
(Electronic Speed Controllers) and propellers are ideal solutions for superior drone flight control, stability, and safety.
throttle - % | Voltage - V | Current - A | Thrust - gf | torque - N*m | RPM | Motor effiency - % | propeller- gf/W | system - gf/W |
5 | 457.9 | 0.34 | 260 | 0.58 | 197 | 7.7 | 21.7 | 1.7 |
10 | 457.5 | 0.82 | 2943 | 3.35 | 392 | 36.6 | 21.4 | 7.8 |
15 | 457 | 1.86 | 7249 | 6.95 | 575 | 49.2 | 17.3 | 8.5 |
20 | 456.9 | 3.36 | 13316 | 11.96 | 755 | 61.6 | 14.1 | 8.7 |
25 | 457 | 6.63 | 20375 | 18.33 | 922 | 58.4 | 11.5 | 6.7 |
30 | 457.3 | 9.88 | 29080 | 24.99 | 1088 | 63 | 10.2 | 6.4 |
35 | 457.4 | 13.87 | 39066 | 33.76 | 1253 | 69.8 | 8.8 | 6.2 |
40 | 456.6 | 18.48 | 50545 | 43.86 | 1413 | 76.9 | 7.8 | 6 |
45 | 456.5 | 24.29 | 62627 | 52.77 | 1557 | 77.6 | 7.3 | 5.6 |
50 | 456.6 | 30.23 | 74676 | 63.50 | 1698 | 81.8 | 6.6 | 5.4 |
55 | 456.1 | 37.36 | 86810 | 76.44 | 1826 | 85.8 | 5.9 | 5.1 |
60 | 456 | 45.27 | 101775 | 85.12 | 1954 | 84.4 | 5.8 | 4.9 |
65 | 456.1 | 48.87 | 106410 | 94.81 | 2042 | 91 | 5.2 | 4.8 |
70 | 456 | 53.58 | 115577 | 96.37 | 2084 | 86.1 | 5.5 | 4.7 |
75 | 455.7 | 63.4 | 130722 | 109.21 | 2229 | 88.2 | 5.1 | 4.5 |
80 | 455.6 | 79.17 | 147677 | 124.08 | 2362 | 85.1 | 4.8 | 4.1 |
85 | 455.2 | 90.74 | 161107 | 135.62 | 2458 | 84.5 | 4.6 | 3.9 |
90 | 455 | 97.97 | 171713 | 146.42 | 2525 | 86.9 | 4.4 | 3.9 |
95 | 454.5 | 117.38 | 189936 | 162.83 | 2628 | 84 | 4.2 | 3.6 |
100 | 454.7 | 127.34 | 202467 | 173.06 | 2657 | 83.2 | 4.2 | 3.5 |
