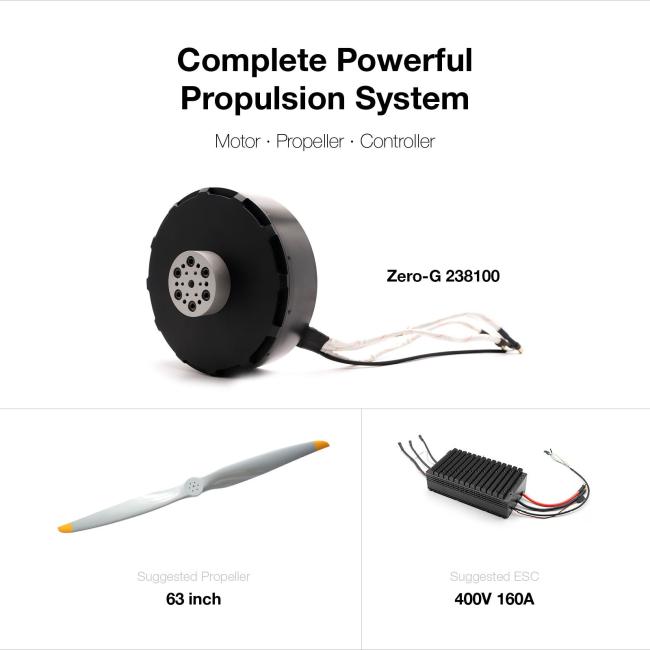

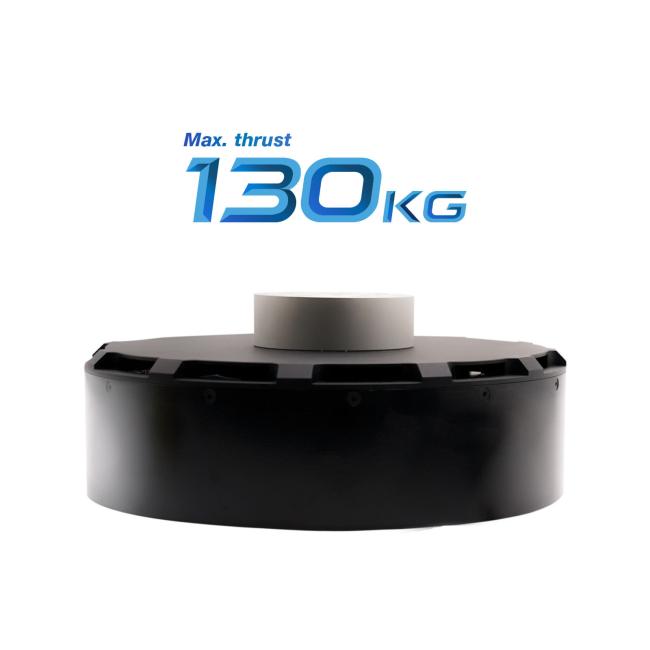

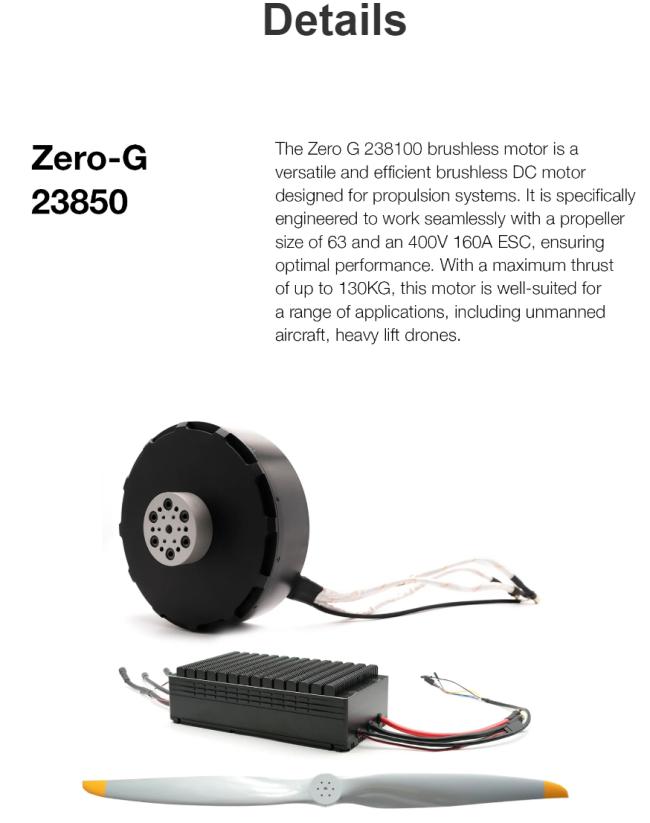

FRC 238100 140KG Thrust Brushless DC Outrunner Motor System with Propeller and ESC UAV Evtol Manned Drone Fly Taix Airplane
Price:
$4,705-5,110 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
FreeRcHobby
Product Description
-
-
KV:35KV
Li-Po:245-32S
Max.RPM:2880
THRUST: 110kg
TORQUE:105Nm
NET WEIGHT: 7kg
MAX POWER: 3OKW
MAX VOLTAGE: 120V
MAX CURRENT: 450A
RESISTANCE:0.0090hm
Dimension:238mm*100mm
-
| throttle (%) |
PWM -us |
thrust (g) |
torque (n*m) |
Voltage (V) |
current (A) |
(RPM) |
shaft power (W) |
effiency % |
propeller g/w |
system g/w |
power |
| 10 | 1185 | 1506 | 1.19 | 401.2 | 0.43 | 210 | 26.2 | 15.2 | 57.5 | 8.7 | 172.5 |
| 15 | 1228 | 4605 | 3.36 | 401.3 | 0.91 | 270 | 95 | 26 | 48.5 | 12.6 | 365.2 |
| 20 | 1270 | 9931 | 6.75 | 401.4 | 1.57 | 390 | 275.7 | 43.7 | 36 | 15.8 | 630.2 |
| 25 | 1312 | 11964 | 9.95 | 401.4 | 2.58 | 690 | 719 | 69.4 | 16.6 | 11.6 | 1035.6 |
| 30 | 1355 | 16640 | 14.66 | 401.3 | 4.16 | 750 | 1151.4 | 69 | 14.5 | 10 | 1669.4 |
| 35 | 1398 | 24918 | 20.58 | 401.1 | 6.28 | 960 | 2068.9 | 82.1 | 12 | 9.9 | 2518.9 |
| 40 | 1440 | 33359 | 27.62 | 401.5 | 9.25 | 1110 | 3210.5 | 86.4 | 10.4 | 9 | 3713.9 |
| 45 | 1482 | 43346 | 35.33 | 401.2 | 13.1 | 1230 | 4550.7 | 86.6 | 9.5 | 8.2 | 5255.7 |
| 50 | 1525 | 54528 | 44.11 | 400.9 | 17.9 | 1350 | 6235.9 | 86.9 | 8.7 | 7.6 | 7176.1 |
| 55 | 1568 | 66936 | 54.48 | 400.7 | 24.11 | 1530 | 8728.9 | 90.4 | 7.7 | 6.9 | 9660.9 |
| 60 | 1610 | 80548 | 65.59 | 400.6 | 31 | 1650 | 11333.1 | 91.3 | 7.1 | 6.5 | 12418.6 |
| 65 | 1652 | 93791 | 76.74 | 400.3 | 39.05 | 1770 | 14224.1 | 91 | 6.6 | 6 | 15631.7 |
| 75 | 1695 | 104646 | 91.67 | 400 | 49.29 | 1860 | 17855.4 | 90.6 | 5.9 | 5.3 | 19716 |
| 85 | 1738 | 125286 | 105.38 | 399.3 | 61.11 | 2010 | 22181.1 | 90.9 | 5.6 | 5.1 | 24401.2 |
| 100 | 1780 | 137514 | 118.99 | 399 | 73.4 | 2130 | 26541.1 | 90.6 | 5.2 | 4.7 | 29286.6 |
