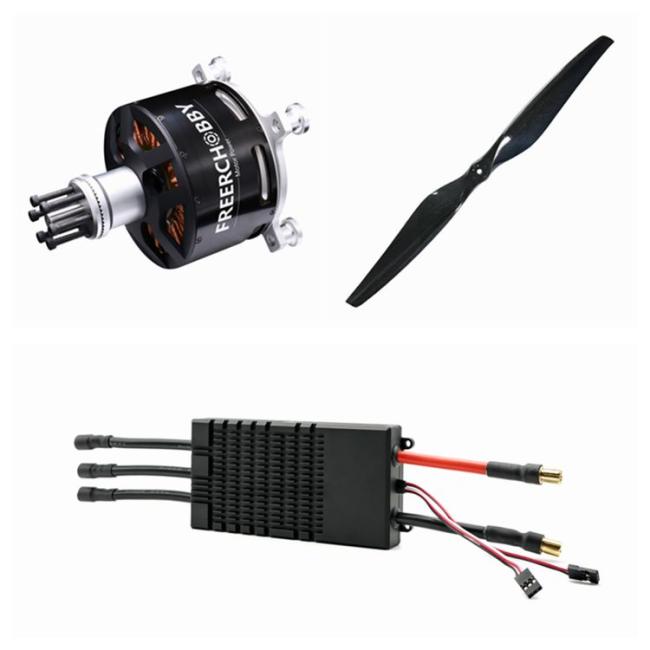

FRC 12090 Brushless Dc 40kg 60kg Thrust Bldc Motor Combo for 40kg Vtol Uav Fix-wing Multicopter Paramotor
MP12090 KV130 Brushless Outrunner (120cc equiv)
Designed as a 100cc gas engine replacement, this motor is a great alternative for 3D and sport planes up to 35lbs!
The motor is very well built with strong mounts, end bell and a concentric double bearings at the rear to support large propellers and rotating can, especially during hard 3D flight.
This motor is very well engineered and of the highest quality.
The factory can produce only a limited number of these motors per month due to the increased time in balancing and machining such a large object.
Specifications
MOTOR: 12090
KV:80
MAX POWER: 15W
MAX AMP: 200A

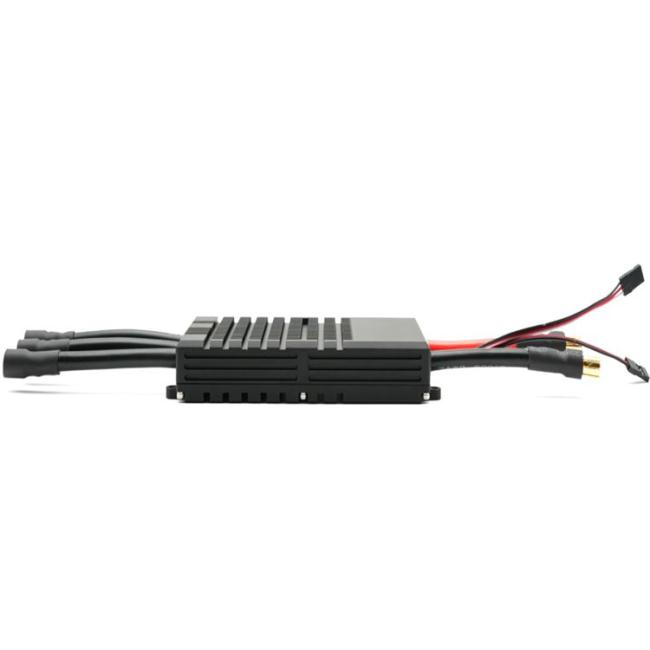

ESC: 250 / 300A
MAX VOLT: 80v
NO LOAD CURRENT: (15V) 6A

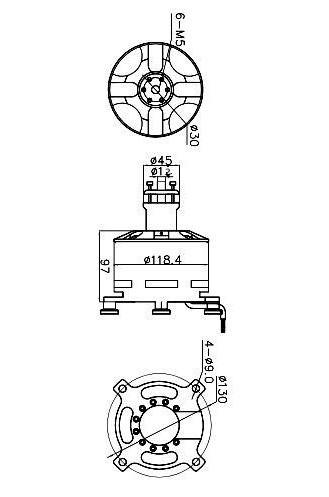

SIZE: 120 x 90( without shaft )
Stator: 40mm
WEIGHT (kg): 2.78
SHAFT: 12mm Accessory pack: Yes\
Accessories:
Inside hall sensored PCB BOARD
Internal PCB with 120 degree hall effect sensors
Testing report
| throttle(%) | U(V) | I(A) | N(RPM) | F(KG) | T(N.M) | Motor output power(W) | System input power(W) | Motor efficiency | Propeller force efficiency(G/W) |
| 20 | 81.05 | 2.5 | 1147.3 | 1.9 | 0.9 | 102.7 | 204 | 53.30% | 18.44 |
| 25 | 81.01 | 5.2 | 1340.8 | 2.7 | 1.9 | 265.2 | 423.7 | 63.30% | 10.326 |
| 30 | 80.98 | 7.7 | 1770.4 | 4.9 | 2.1 | 385.3 | 620.9 | 62.40% | 12.788 |
| 35 | 80.92 | 10.6 | 2022 | 6.3 | 2.7 | 561.5 | 856.2 | 65.70% | 11.161 |
| 40 | 80.9 | 14.1 | 2288.6 | 7.9 | 3.4 | 804.4 | 1142 | 70.60% | 9.827 |
| 45 | 80.8 | 19.9 | 2563.7 | 10.7 | 4.5 | 1217.9 | 1608.5 | 75.80% | 8.826 |
| 50 | 80.68 | 27.9 | 2877.5 | 14.0 | 5.9 | 1774.7 | 2251.4 | 78.90% | 7.905 |
| 55 | 80.57 | 36.4 | 3192.5 | 16.8 | 7.1 | 2372.8 | 2931.6 | 81.00% | 7.146 |
| 60 | 80.35 | 48.4 | 3456.7 | 20.6 | 8.8 | 3178.3 | 3885.6 | 81.90% | 6.631 |
| 65 | 80.21 | 59.2 | 3721.1 | 23.7 | 10.1 | 3922.4 | 4746.9 | 82.60% | 6.096 |
| 70 | 80.04 | 72.9 | 3966.9 | 27.6 | 11.8 | 4892.5 | 5836.3 | 84.00% | 5.753 |
| 75 | 79.84 | 87.0 | 4183.8 | 31.2 | 13.3 | 5839.9 | 6946.6 | 84.10% | 5.393 |
| 80 | 79.54 | 104.2 | 4449.3 | 35.2 | 14.9 | 6957.6 | 8285.4 | 84.00% | 5.085 |
| 85 | 79.24 | 125.4 | 4678.6 | 39.6 | 17.2 | 8410.8 | 9935.6 | 84.70% | 4.724 |
| 90 | 79.07 | 136.4 | 4775.8 | 42.0 | 18.2 | 9118.4 | 10787.1 | 84.60% | 4.611 |
| 95 | 79.01 | 136.3 | 4770.9 | 42.2 | 18.2 | 9101.8 | 10768.3 | 84.60% | 4.643 |
| 100 | 78.97 | 135.5 | 4778.9 | 41.6 | 18.0 | 8984.5 | 10704.6 | 84.00% | 4.641 |
Photos:
