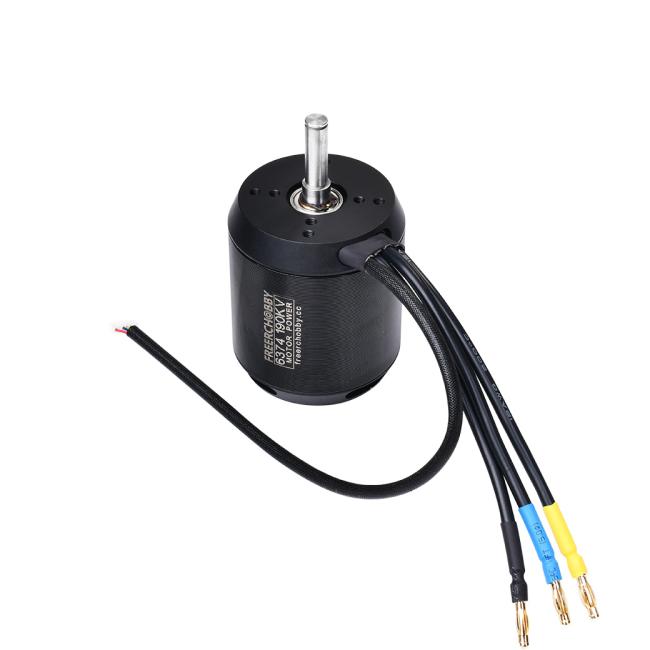

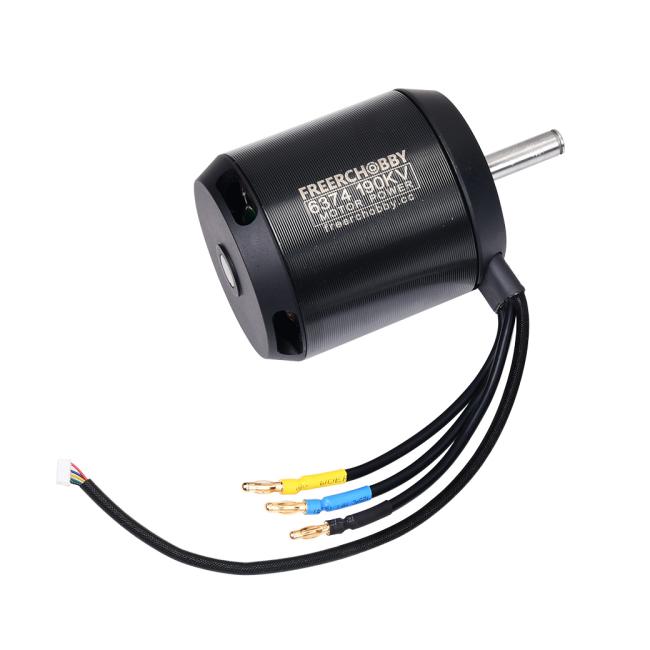

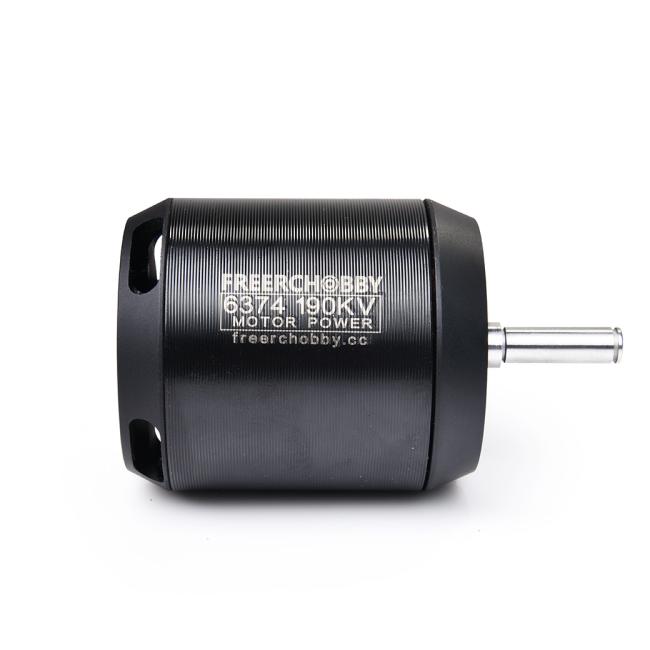

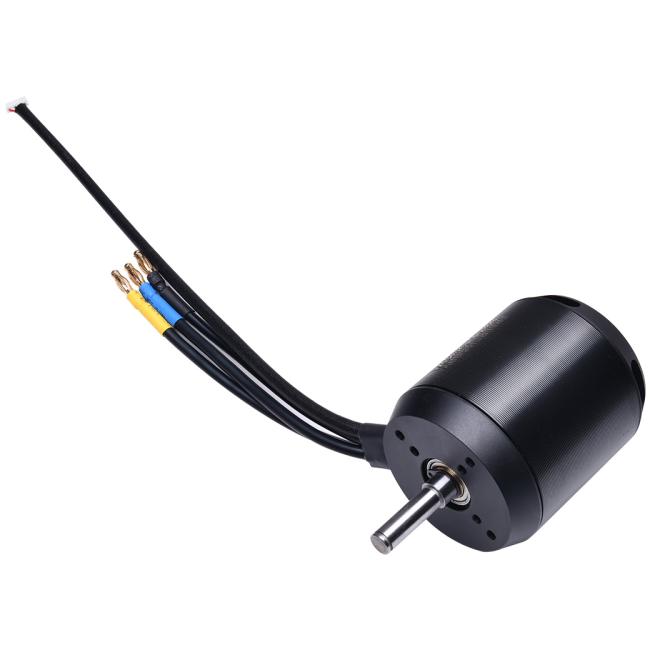

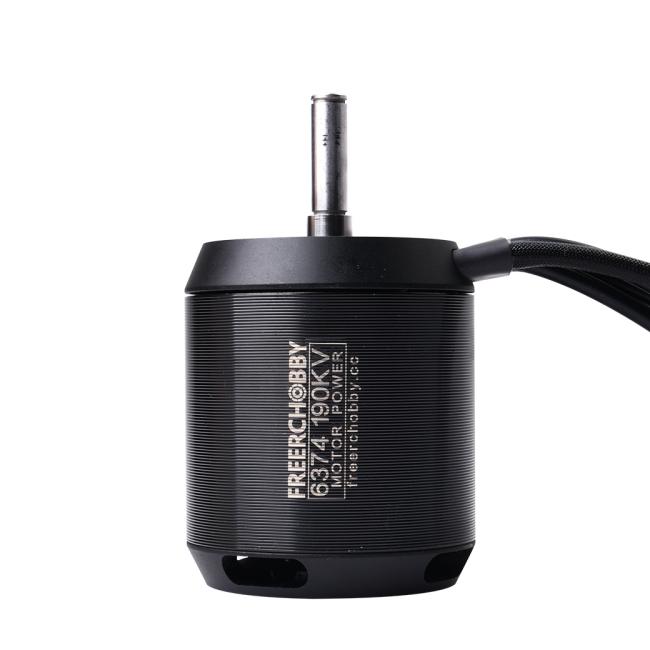

Powerful 6374 Sensored Outrunner Brushless Motor 150kv 170kv,190kv Electric Skateboard Motor Kit
DIY Belt Drive Electric Skateboard MP6374 3250 Watt outrunner hub gear brushless motor
Product Spec
| Motor | MP6374 | Max power | 3250w |
| Max current | 90A | Max voltage | 6-12s |
| Max torque | 8Nm | Resistance | 0.05Ohm |
| ESC | VESC4/VESC6/3-12s 50A | Weight | 0.9kg |
| Motor length | 74mm | Motor diameter | 63mm |
| Shaft | 8/10mm | Wire | No.12 silicon wire |
- Blue = A
- Black = B
- Yellow = C
- Stator: 0.2mm thickness lamination japan steel
- Magnet: N42SH high temp curve magnet
- BLDC Motor
- The number of pole: 14
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
- Internal PCB with 120 Degree Hall Effect Sensors.
- Motor can be used with or without a sensor. Sensorless operation is most common.
- VESC 4 will use 2.0mm 6 pin connector and vesc 6 will use 1.5mm connector
What can be get from Freerchobby?
Freerchobby is key manufacturer for oem and odm various brushless motor for E-boards, currently we have 5045 5055 5065 6355 6364 6374 6384 belt drive motor and also 83mm and 90mm hub motor.
Compared with other supplier, we freerchobby, are always adopt quality first, cost is next.
- Stator: Lamination Japan steel
- 12awg high strand silicone wire with 4.0mm gold bullet connectors.
- Both support sensor and sensorless mode!
- Japan Nsk ball bearing
- Kv can be changable, hall sensor wire can be changed as well
Reference Information
- The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
- Screws to mount the motor are not included with the motor.
- The key for keyawy is not included with motors for shipping

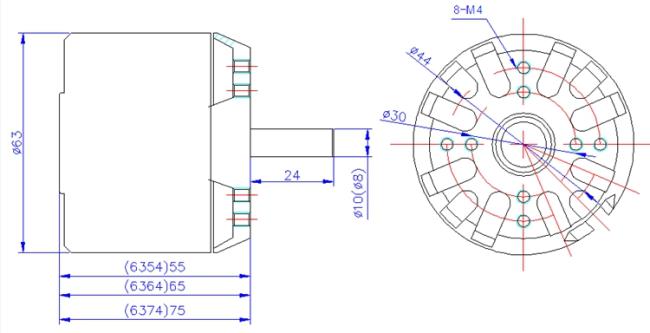

- The mechanical diagram:
Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
models, BLDC brushless motors, rc tools and accessories.
About our rc car department, We have a design team for 8 people
with many years’ RC experience, the driver who gets awards in the
national championship and merit awards in the domestic and inte-
rnational opening tournament joining us makes our products more
professional, market oriented and diverse. Now our company has
released 1/8th SC truckand buggy ,1-10 scale competition On road
kit and RTR on road car to the market.
About our brushless motor department, our technician, with 12 years’ motor design experiece, designs various size motors for rc bobby
plane, multicopter, such as 28, 35, 42, 50, 63 series.
And for other industrial,such as electric skateboard, electric bike, electric paramotor,paraglider,drone, electric surfboard,electric car,boat etc. We have motor 8085, 80100, 12090, 120100, 154120,23850,238100,202150,240110,240150 ect.
We can make sensored motors, watercooling system for you .
Welcome to visit the updates for our website.

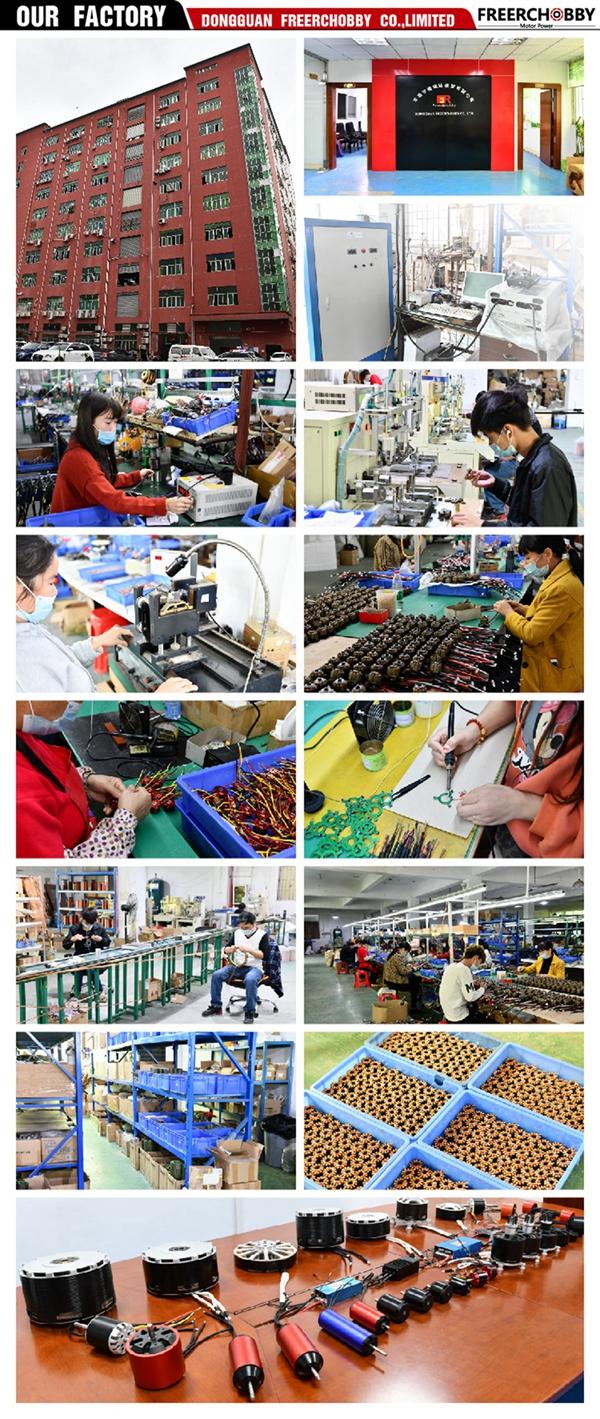

Production line
