High Quality 600w 71mm Hub Motor for Electric Skateboard In-wheel Hub Motor Kits for Longboard Electric Powered Skateboard
high quality electric skateboard hub motor 72mm
The best material has been adapoted:
0.2mm thickness japan stator 12 slot
N42SH high level magnet with rare earth material 16 pole
Orginal Japan NSK ball bearing
Sensorless or sensored all ok
Single and dual can be adopted in each board.

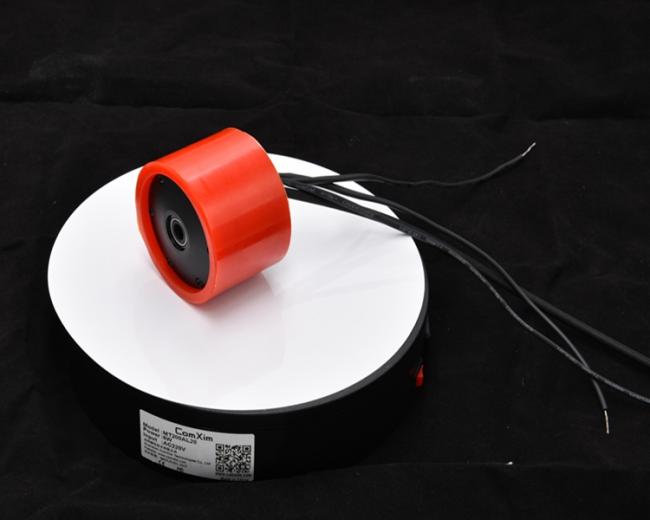

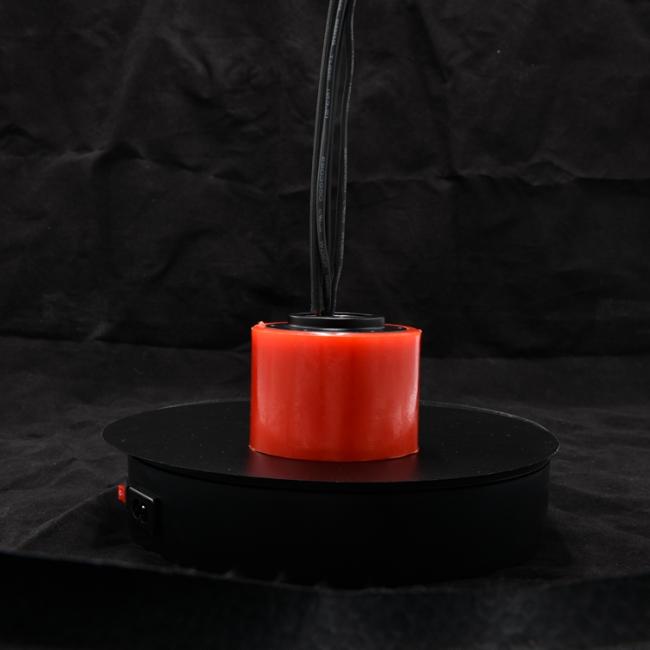

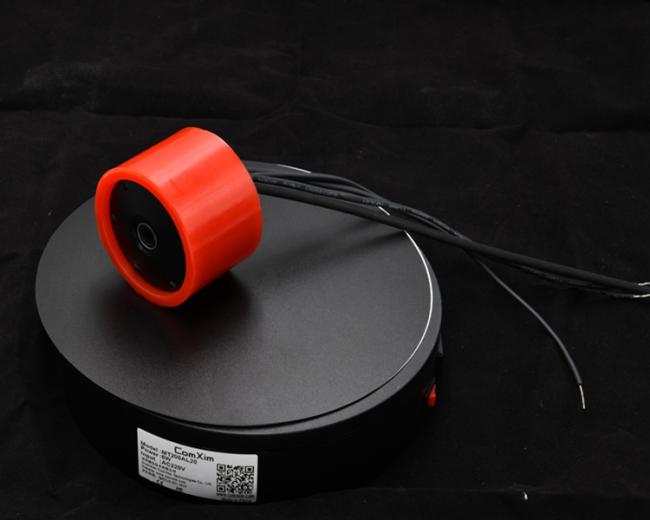

MP 72mm wheel hub motor.
| Motor | MP72mm hub | Current | 50A max 25A rated |
| Voltage | 50.4v | Max power | 1200w |
| Rated power | 600w | KV | 60-270kv |
Our sina wave controller spec(68usd/pcs, avaliable)
5V 1A output for external electronics from the buck converter integrated on the DRV8302.
Voltage: 8V - 60V (Safe for 3S to 12S LiPo).
Current: Up to 240A for a couple of seconds or about 50A continuous depending on the temperature and air circulation around the PCB.
Firmware based on ChibiOS/RT.
PCB size: slightly less than 40mm x 60mm.
Current and voltage measurement on all phases.
Regenerative braking.
DC motors are also supported.
Sensored or sensorless operation.

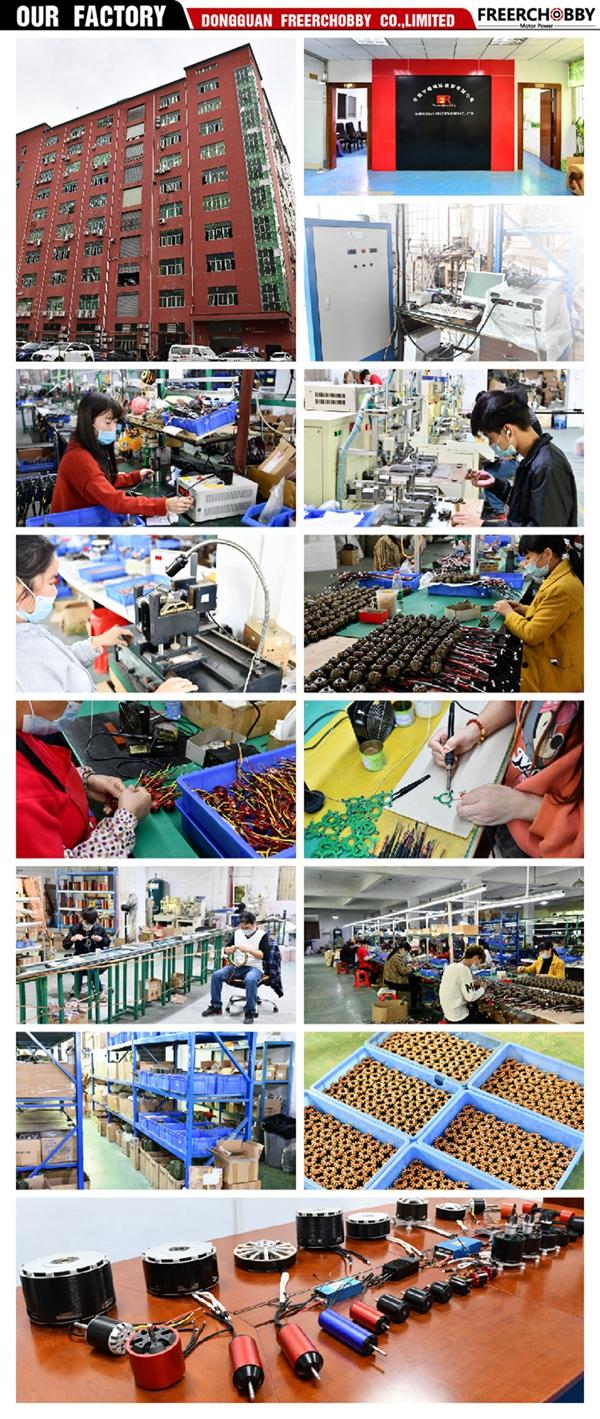

Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
models, BLDC brushless motors, rc tools and accessories.
About our rc car department, We have a design team for 8 people
with many years’ RC experience, the driver who gets awards in the
national championship and merit awards in the domestic and inte-
rnational opening tournament joining us makes our products more
professional, market oriented and diverse. Now our company has
released 1/8th SC truckand buggy ,1-10 scale competition On road
kit and RTR on road car to the market.
About our brushless motor department, our technician, with 12 years’ motor design experiece, designs various size motors for rc bobby
plane, multicopter, such as 28, 35, 42, 50, 63 series.
And for other industrial,such as electric skateboard, electric bike, electric paramotor,paraglider,drone, electric surfboard,electric car,boat etc. We have motor 8085, 80100, 12090, 120100, 154120,23850,238100,202150,240110,240150 ect.
We can make sensored motors, watercooling system for you .
Welcome to visit the updates for our website.
