Diy Belt Drive Electric Skateboard MP6384 4000 Watt Hub Motor PU Tyre Brushless DC Motor Explosion-Proof Permanent Magnet

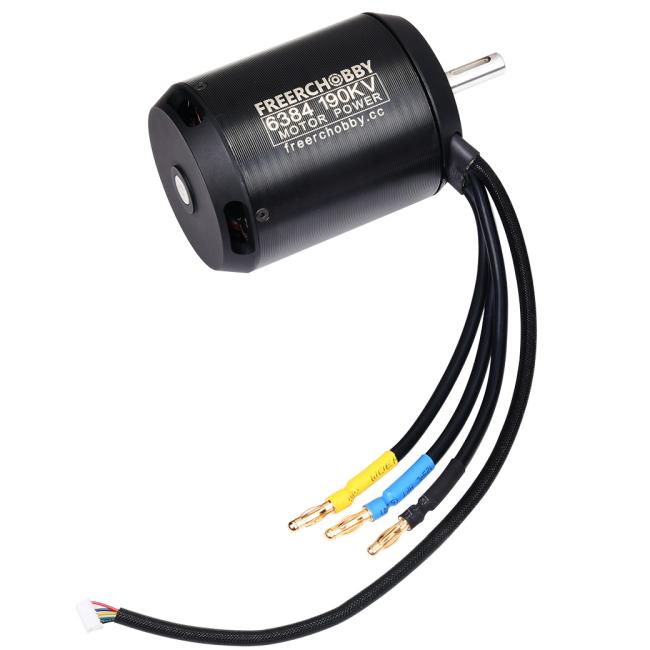

BLDC Belt Motor MP6384 190KV 4000W for Electric Skateboard
Product Spec
| Motor | MP6384 | Max power | 4000w |
| Max current | 100A | Max voltage | 12s |
| Max torque | 9Nm | Resistance | 0.05Ohm |
| ESC | 3-12s 100A | Weight | 1kg |
| Length | 84mm | Diameter | 63mm |
| Shaft | 10mm | Hall sensor | yes |
Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.- Wire configuration:
- Blue = A
- Black = B
- Yellow = C
- Wire configuration:
- Stator: 0.2mm thickness lamination japan steel
- Magnet: N42SH high temp curve magnet
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
- Internal PCB with 120 Degree Hall Effect Sensors.
- Motor can be used with or without a sensor. Sensorless operation is most common.
- VESC Sensor Wires required to use with VESC.
Package includes
- MP6384 190KV 1pcs
- 4.0mm golden connector male&female
Quality advantage:
- Stator: Lamination Japan steel
- 12awg high strand silicone wire with 4.0mm gold bullet connectors.
- Both support sensor and sensorless mode!
Notice:
- The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
- Screws to mount the motor are not included with the motor.
- The key for keyawy is not included with motors for shipping

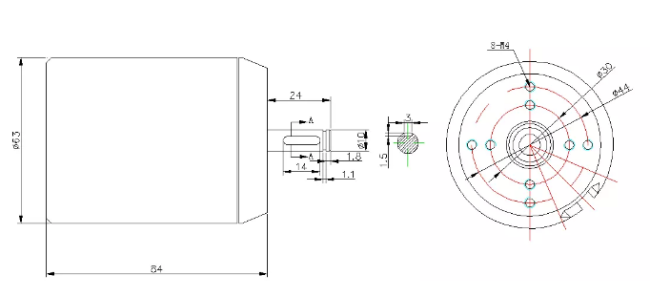

- The mechanical diagram:

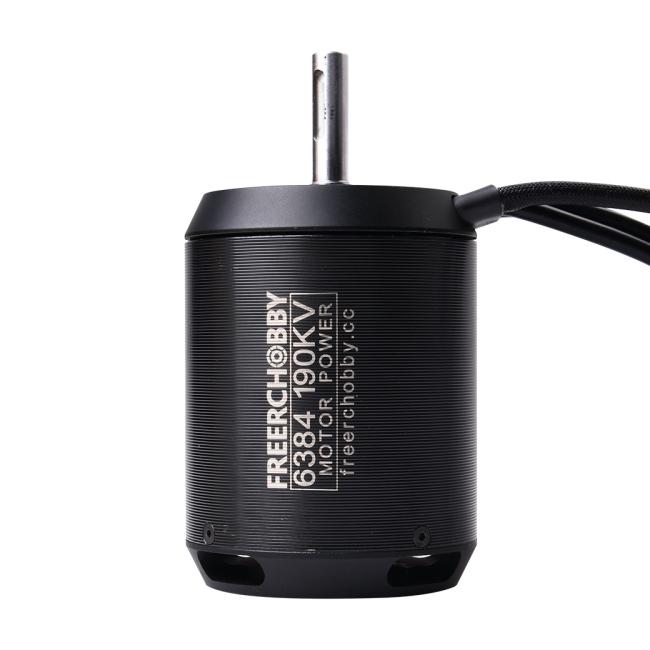

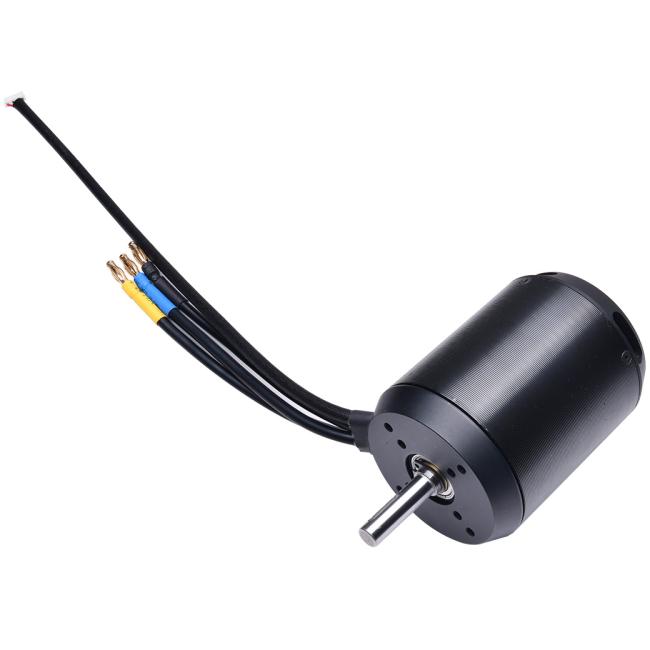

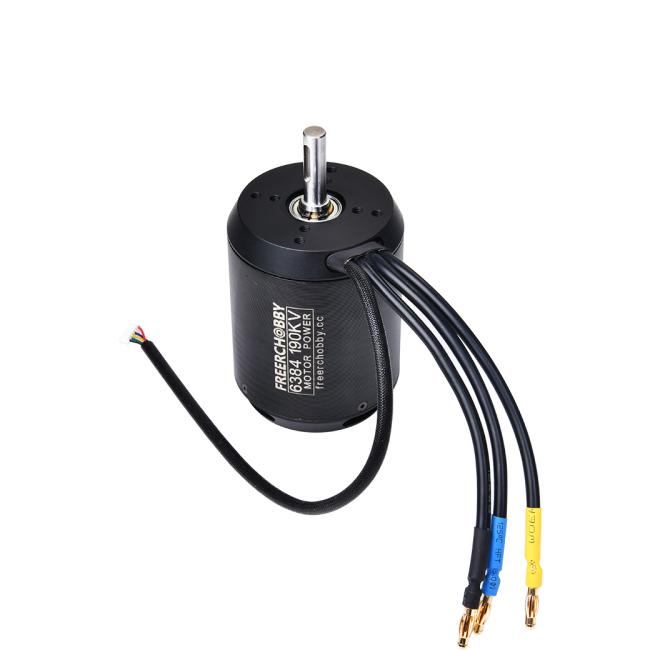

Product Showcase
Application
Company Introduction
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.
The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!

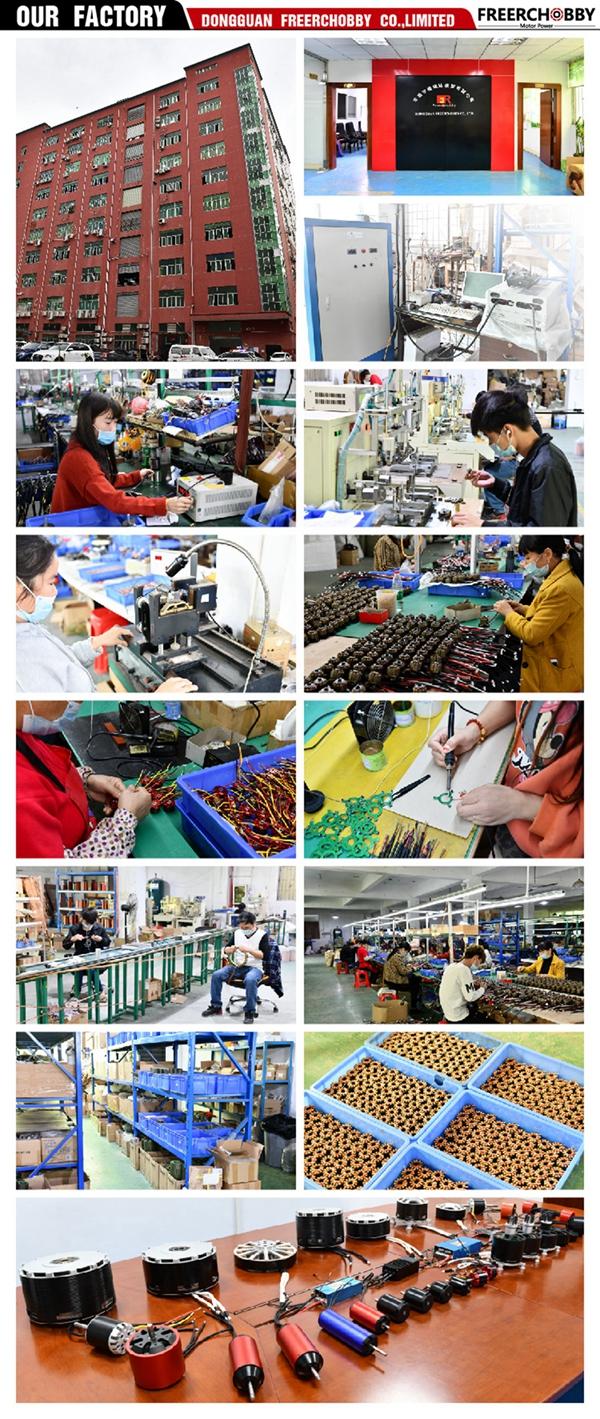

Production line

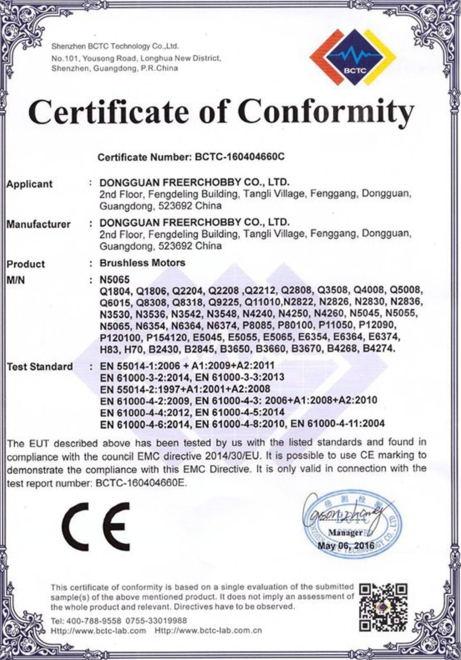

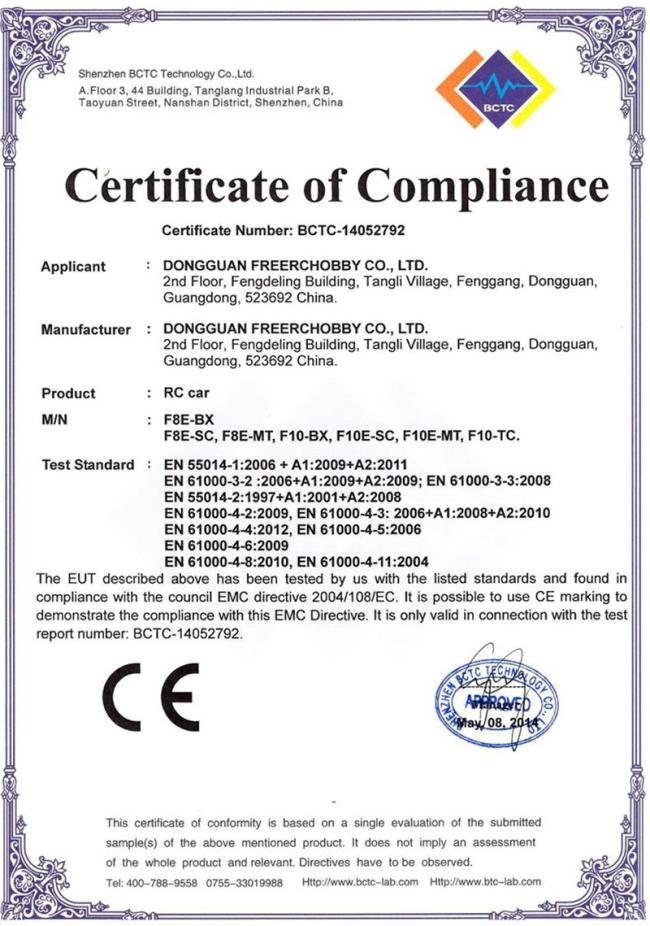

Company certificate
RFQ:
1) What is the quality Guarantee for your Motor and esc
Answer: All the motor will be 180days quality Guarantee for our products. If we indentify the quality issues, we will send replacement immediately.
2) How long the delievery date
Normally the goods will shipped 2-3days after payment. If custom motor, the delivery date will be 25-30days for change design. If just kv changes, the delievery date is same as regular items.
3) Why choose freerchobby
As we are the real manufacturer in the market. We have custom many brands motor for diy market or completed board projects.
