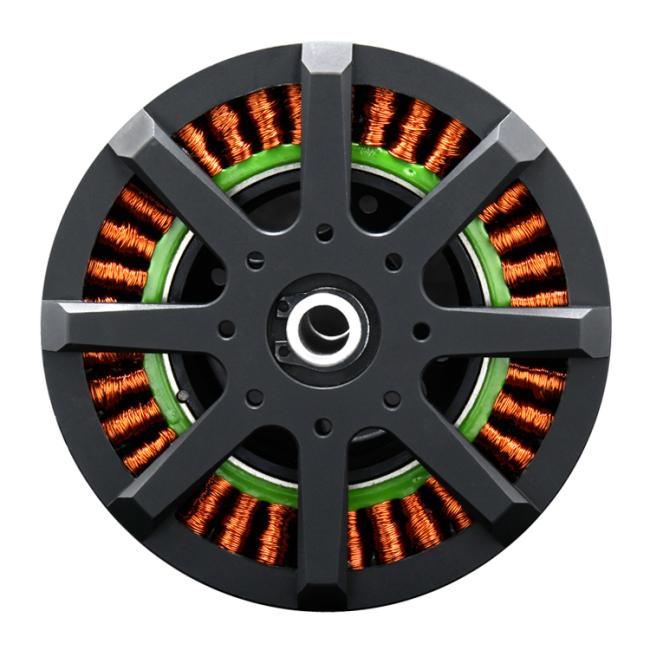

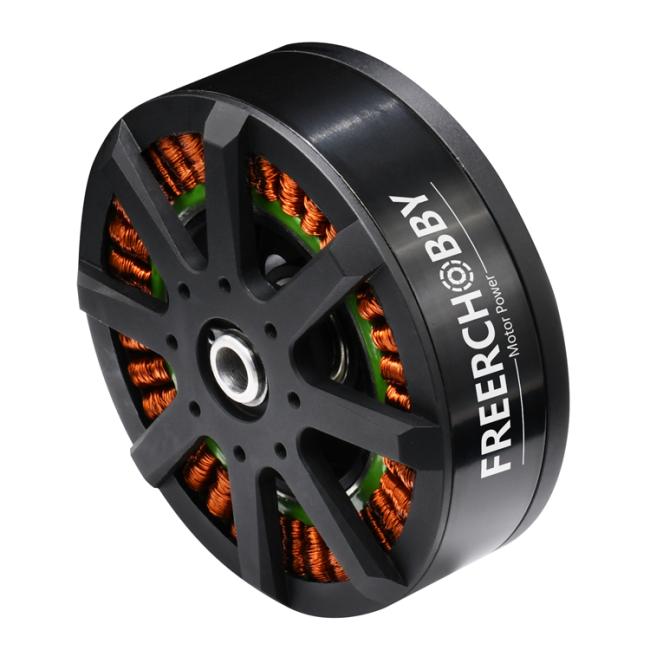

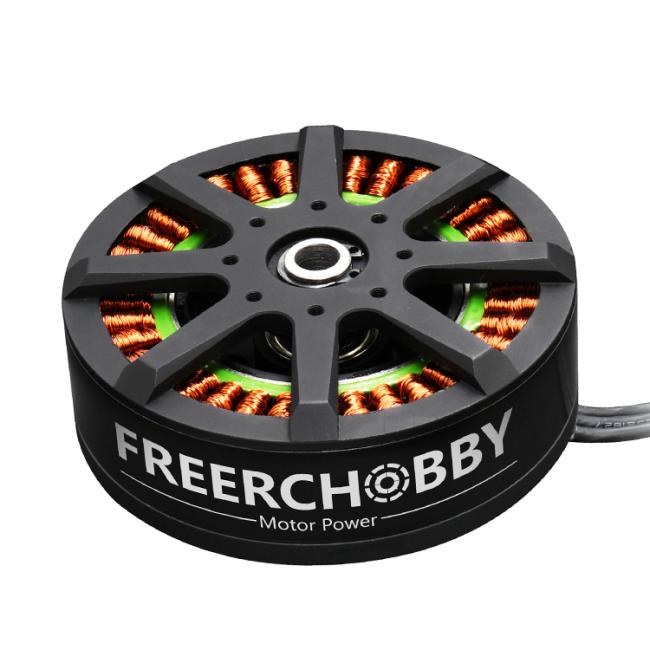

8318 Powerful 48V Brushless DC Agriculture Drone Quadcopter Motor for 10L Sprayer Payload
8318 KV100 Outrunner Sensorless Brushless Motor
FEATURES:
♦42Pole 36Slot Hi-torque Motor Design
♦CNC Machined 6061 T6 Billet Aluminum Heatsink Can
♦High Purity Copper Windings Maximizes Efficiency
♦High RPM ABEC5 Oversized Bearings
♦Precision balanced rotor,smoothness for best reliability and maximum RPM. single copper wire made
♦Stator - Super Thin (0.2mm) Laminations
♦Precision Engineered for Maximum Energy Conversion
Testing report:
| Freerchobby Motor | 8318-100 |
| Stator size | 8318 |
| kv | 100 |
| Motor Diameter | 92 |
| Motor Length | 40.5 |
| Shaft Diameter | hollow shaft 8mm |
| Shaft Length | na |
| Weight | 640g |
| No. of Poles | 42 |
| No Load Current | 1.1a |
| Max Amps (10 Sec) | 58A |
| Max Continious Current | 45A |
| Recommended Battery | 12S LiPo |
| Recommended Prop | 30x8 |
| Recommended ESC | 80A |

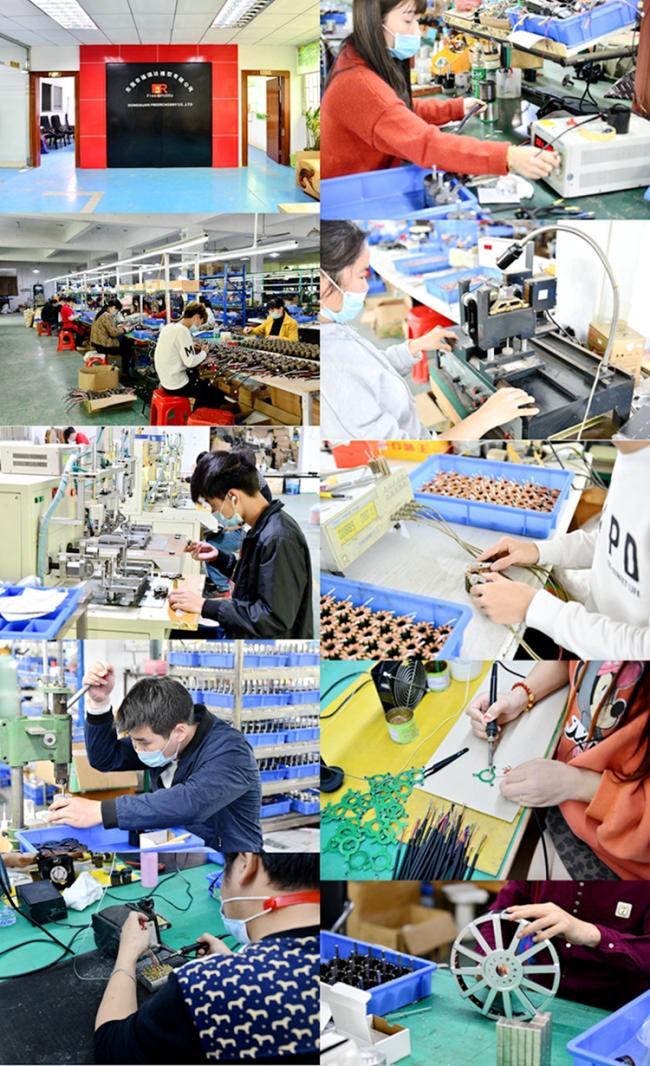

Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
models, BLDC brushless motors, rc tools and accessories.
About our rc car department, We have a design team for 8 people
with many years’ RC experience, the driver who gets awards in the
national championship and merit awards in the domestic and inte-
rnational opening tournament joining us makes our products more
professional, market oriented and diverse. Now our company has
released 1/8th SC truckand buggy ,1-10 scale competition On road
kit and RTR on road car to the market.
About our brushless motor department, our technician, with 12 years’ motor design experiece, designs various size motors for rc bobby
plane, multicopter, such as 28, 35, 42, 50, 63 series.
And for other industrial,such as electric skateboard, electric bike, electric paramotor,paraglider,drone, electric surfboard,electric car,boat etc. We have motor 8085, 80100, 12090, 120100, 154120,23850,238100,202150,240110,240150 ect.
We can make sensored motors, watercooling system for you .
