Freerchobby BLDC 6374 With Hall Sensor 170 to 330KV for DIY Electric Bike Surfboard E-skateboard Longboard Brushless Motor

Product Specification:

• Other details information:
• Max Power: 3250 Watts
• Max Current: 85 Amps
• Max Volts: 12S
• Max Torque: 8Nm
• Motor Resistance: 0.05Ohm
• Recommend ESC: 3-12S 50A
• Weight: 1.9 lb / 0.86 kg
• The motor length:74mm
• The motor diameter: 63mm
• SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot.
• Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
  • Wire configuration:
    • Blue = A
    • Black = B
    • Yellow = C
• Stator: 0.2mm thickness lamination japan steel
• Magnet: N42SH high temp curve magnet
• BLDC Motor
• The number of pole: 14

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch

• Internal PCB with 120 Degree Hall Effect Sensors.
• Motor can be used with or without a sensor. Sensorless operation is most common.
• VESC Sensor Wires required to use with VESC.

Package included

• MP6374 190KV  1pcs
• 4.0mm golden connector male&female

Quality advantage:

• Stator: Lamination Japan steel
• 12awg high strand silicone wire with 4.0mm gold bullet connectors.
• Both support sensor and sensorless mode!

Notice:

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
•  Screws to mount the motor are not included with the motor.
• The key for keyawy is not included with motors for shipping
• The mechanical diagram:

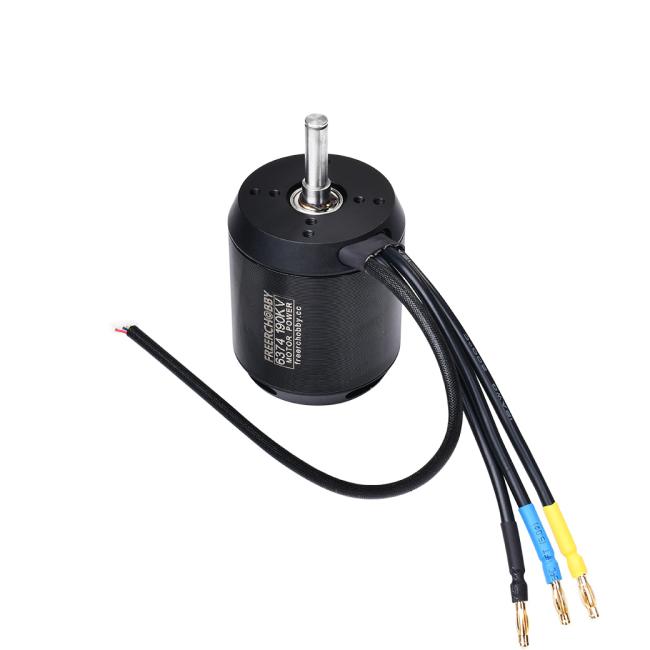

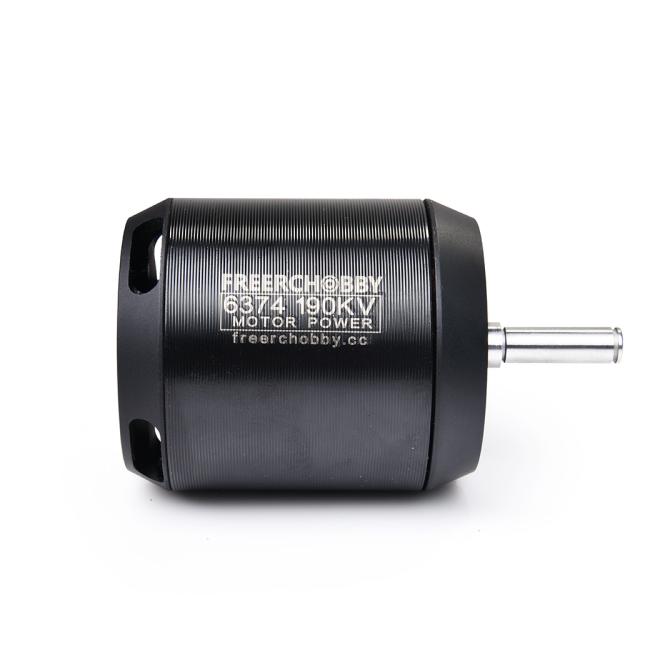

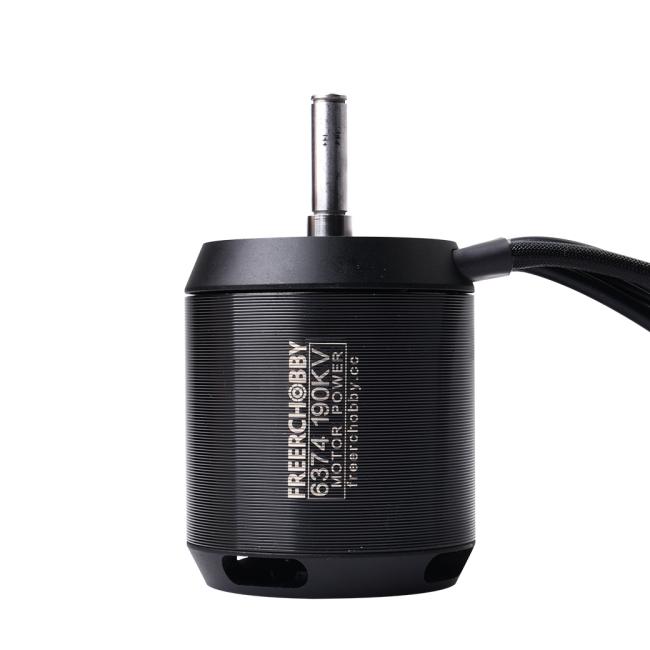

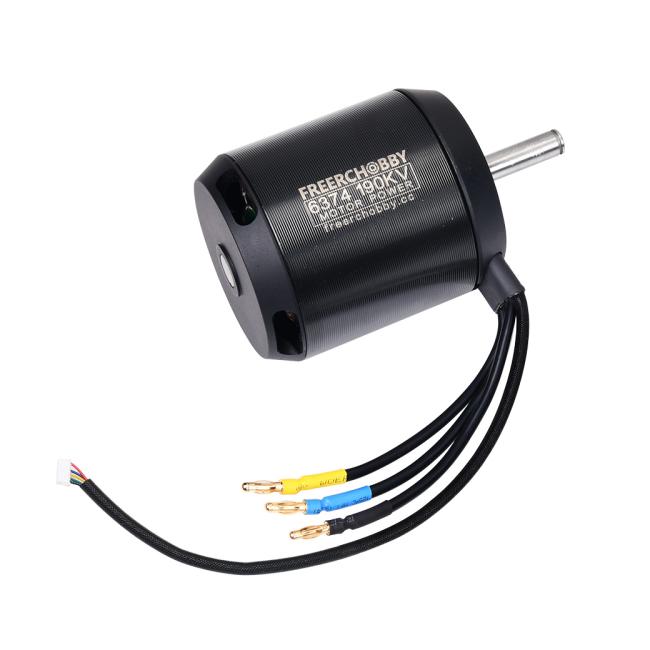

Product Photos:

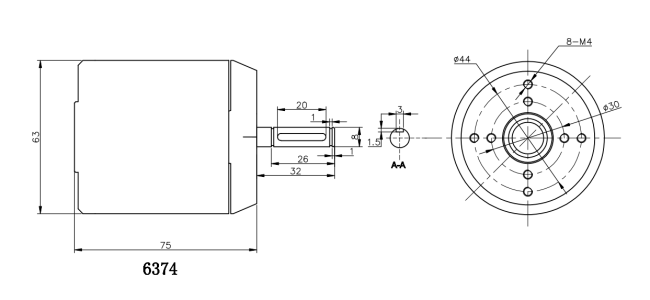

Motor Dimesnion drawing:

) why choose freerchobby?

Freerchobby is a professional motor manufacturer, we have over experience 15 years to work in such product.

Freerchobby always use the highest level material, such as magnet: 0.2mm japan steel lamilation, magnet: curved N42SH high temperature grade, ball bearing: japan NSK.

Affordable price and fast delivery date and reliable after-sale service

OEM and ODM are easily processed in our factory.
