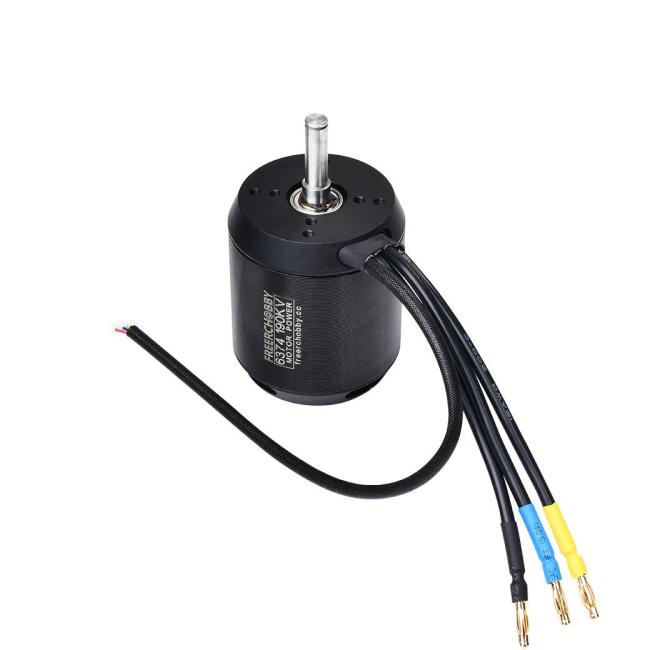

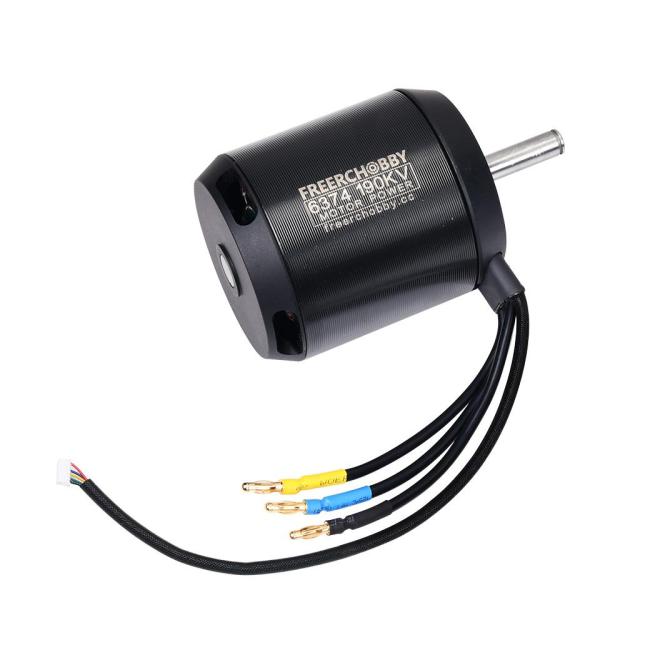

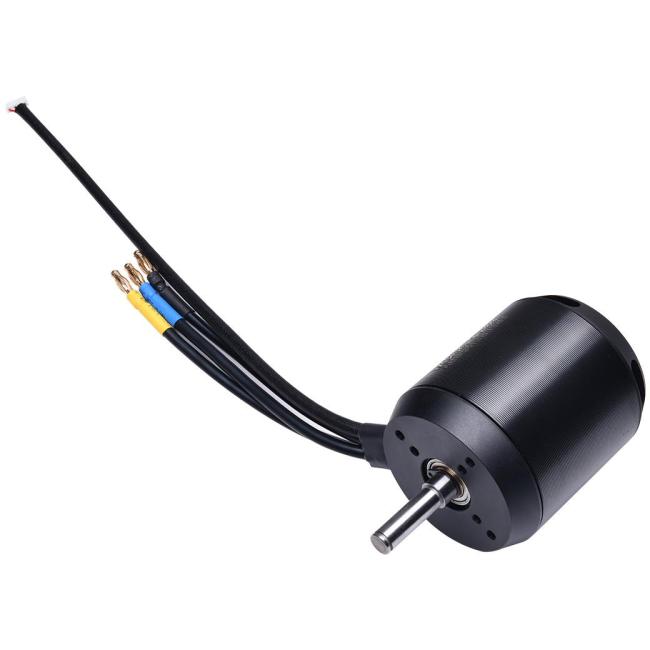

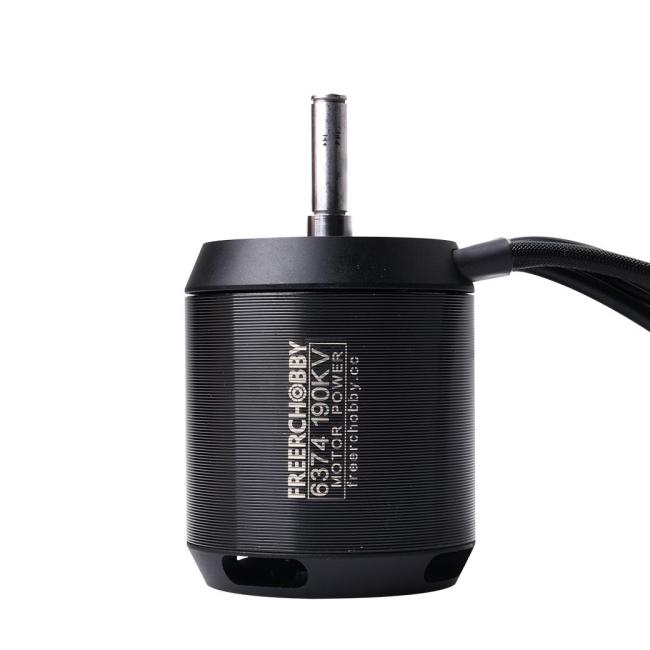

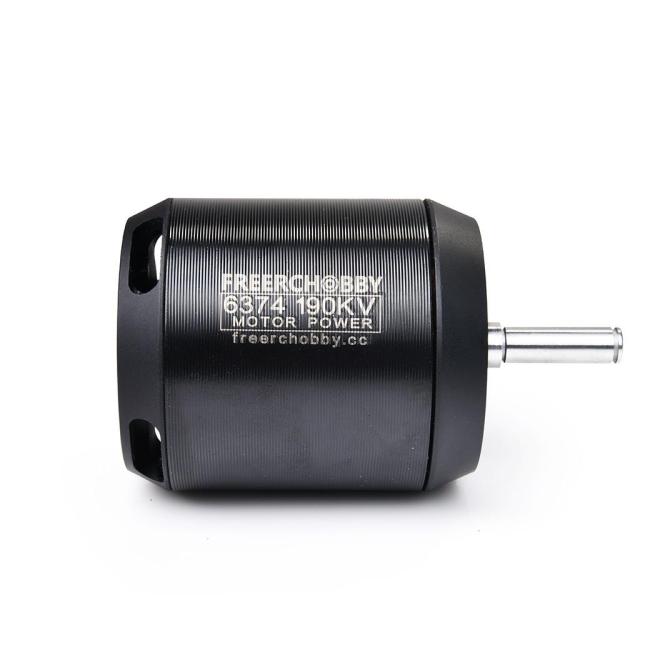

6374 190KV 3250W Dual Hub Belt Direct Drive Dc Brushless Motor for Electric Skateboard Robot Scooter Go Kart Ect
6374 190KV 3250W 12S BLDC Belt Brushless Electric Skateboard Motor
Product Description
| Max power | 3250w |
| Max current | 85Amps |
| No-load current | 1.12A 10V |
| Max volts | 12s |
| Recommend ESC | 3-12s 50A |
| Max Torque | 8Nm |
| Motor Resistance | 0.05Ohm |
| Weight | 1.9lb/0.86kg |
| The motor length | 74mm |
| The motor diameter | 63mm |
| Shaft | Diameter 8mm ,30mm length,3*1.5 keyway slot |
| Motor wire | 130mm silicone 120AWG wire with 4.0mm Gold Bullet Connector male |
| Wire configuration |
Blue=A Black=B Yellow=C |
| Stator | 0.2mm thickness lamination Japan steel |
| Magnet | N42SH high temp curve magnet |
| Brushless Motor fits | Fits 63mm Motor Mount |
| The number of pole | 14 |
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
What's Our Product Feature?
Stator: Lamination Japan steel
12awg high strand silicone wire with 4.0mm gold bullet connectors.
Both support sensor and sensorless mode!
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyawy is not included with motors for shipping

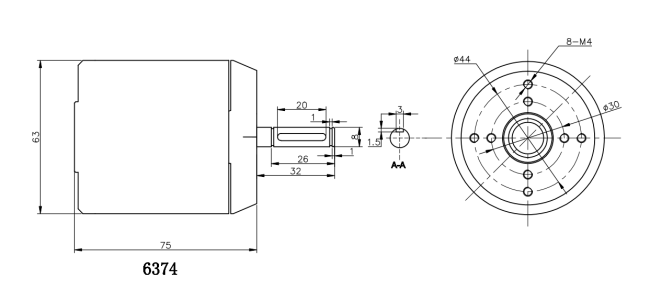

The mechanical diagram:

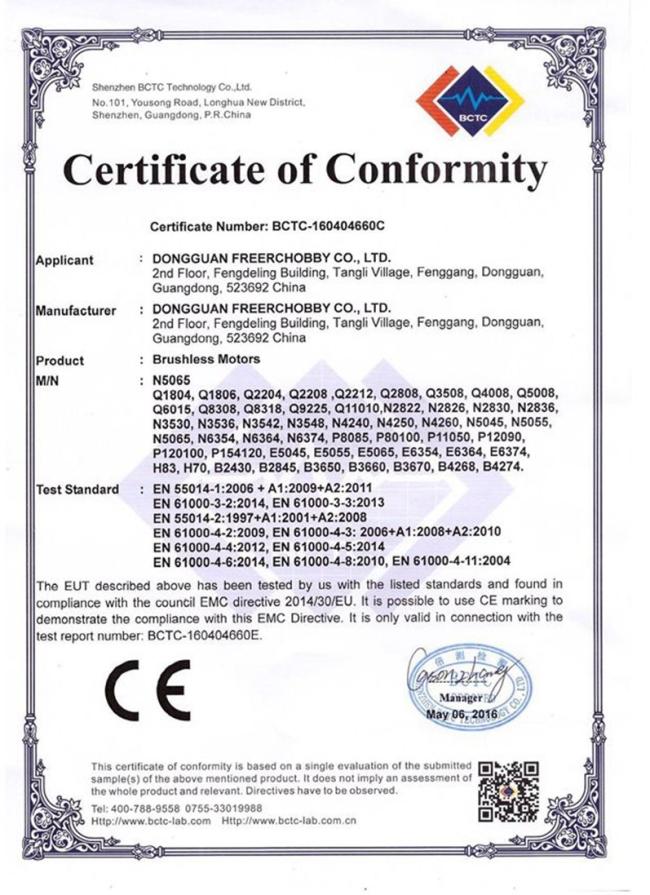

Product Certificate

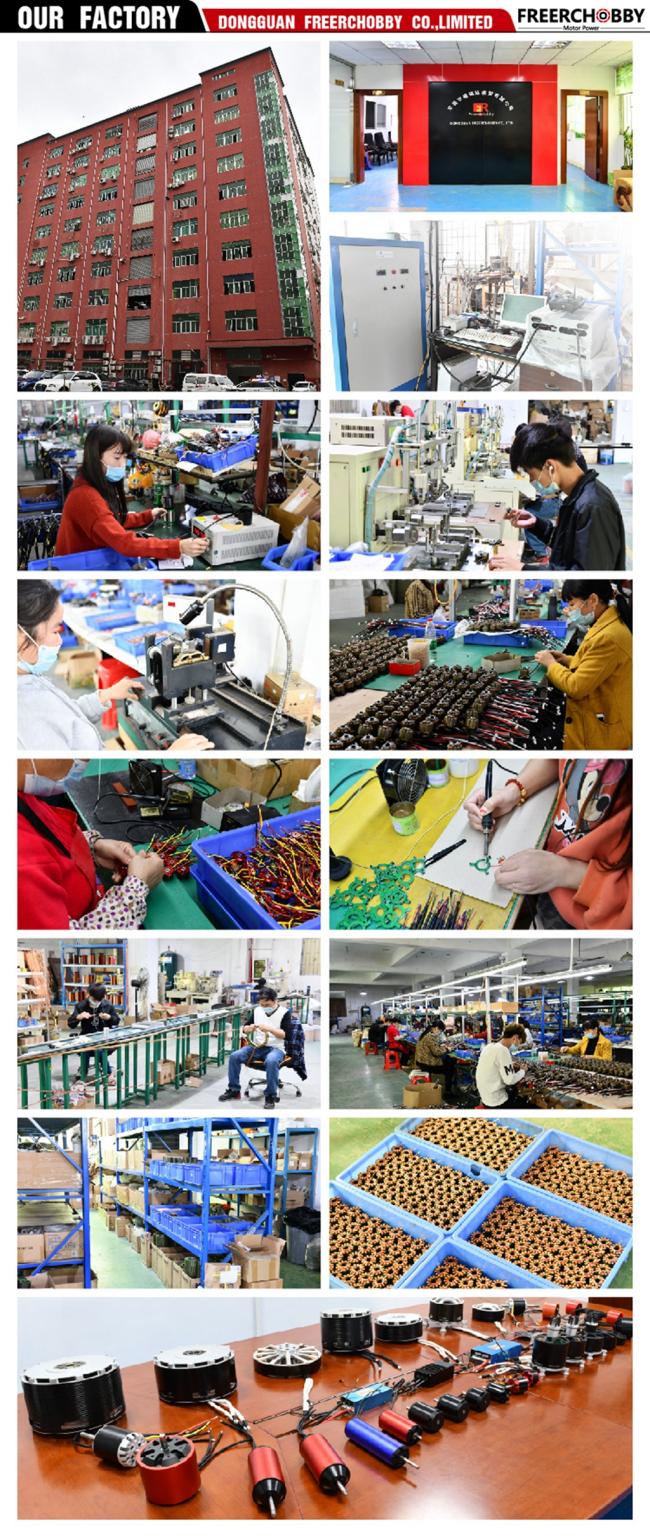

Company Profile
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.
Packaging & Delivery
- Selling Units: Single item
- Single package size: 10X5X10 cm
- Single gross weight: 0.950 kg
- Package Type:
-
Net weight: 860g
Package weight: 1000g
Packing size: 115mm*175mm*90mm
- Lead Time:
-
Quantity(Pieces) 1 - 50 >50 Est. Time(days) 7 To be negotiated ![]()
![]()
