15KW 12090 80KV Sensored Brushless Watercooling Motor with 25Nm Torque for Electric Car Boat

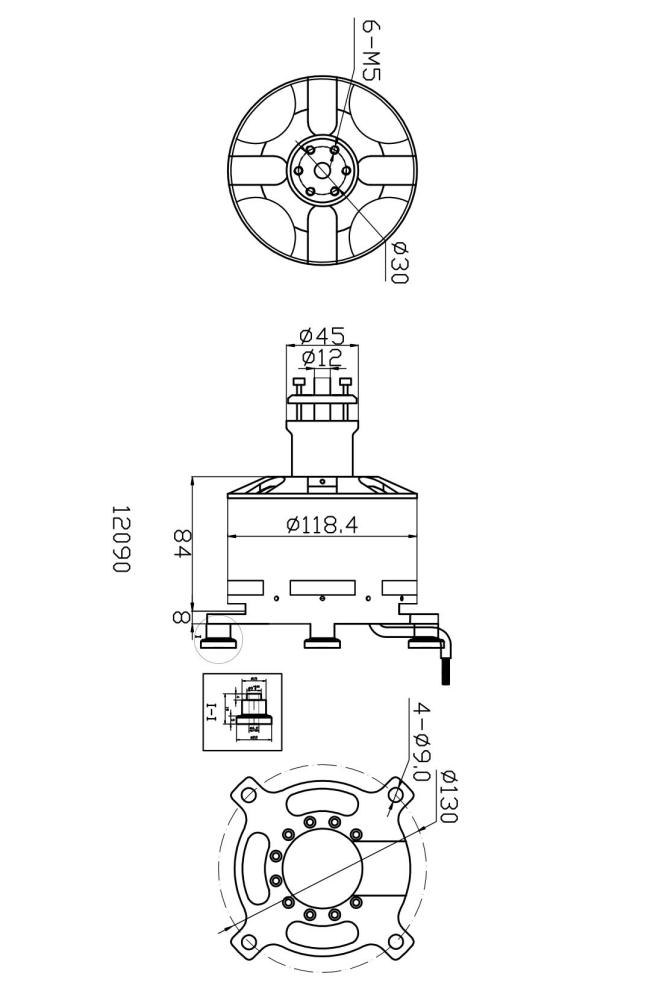

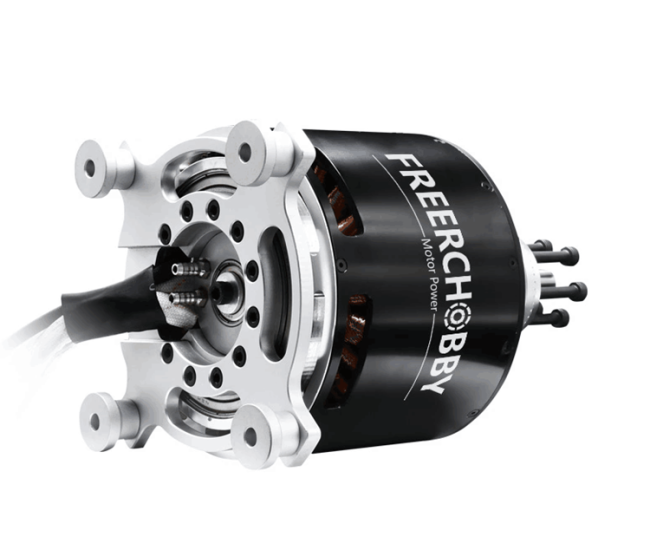

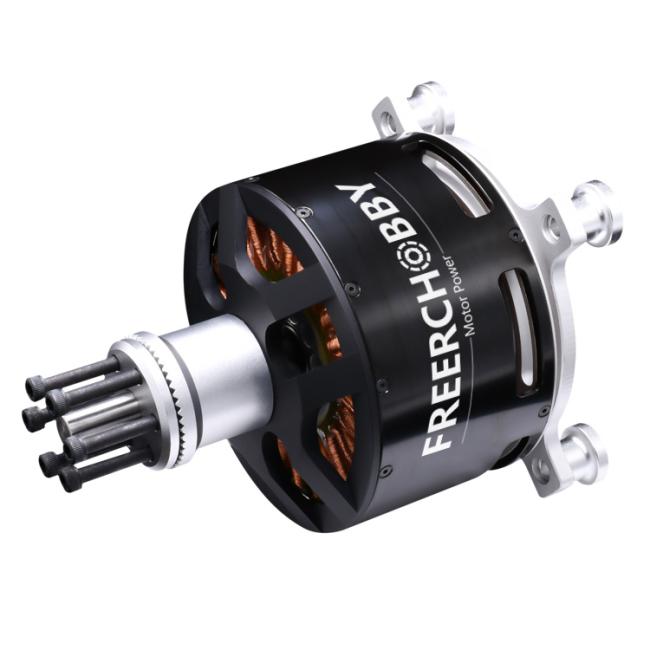

MP12090 80KV sensored & watercooling brushless motor for electric car
Specifications
| Motor | MP12090 | Max voltage | 90V |
| KV | 35/42/55/80/100/121 | Stator | 40mm |
| Max power | 15kw | Torque | 25Nm |
| Max current | 250A | Max RPM | 9000 |
| ESC | 300A-500A | Thrust | 40kg |
| No load current | (15V)6A | Shaft | 12mm |
| Size |
120 x 90mm( without shaft ) |
Weight | 3.2kg |
| Watercooling |
yes |
Hall sensor | yes |
Our company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
model, brushless motor, rc tools and accessories.
About our brushless motor department, our main technician, with 12
years’ motor design experiece, design various size motors for rc hobby
plane, multicopter, such as 28, 35, 42, 50, 63 series. And for other industrial,
such as electric skateboard, electric bike, electric paramotor, electric car&ship,
our sensored motor, watercooling system motors will be what you request,
such as our motor 8085, 80100, 12090, 120100, 154120 ect.
Welcome to visit the updates for our website.

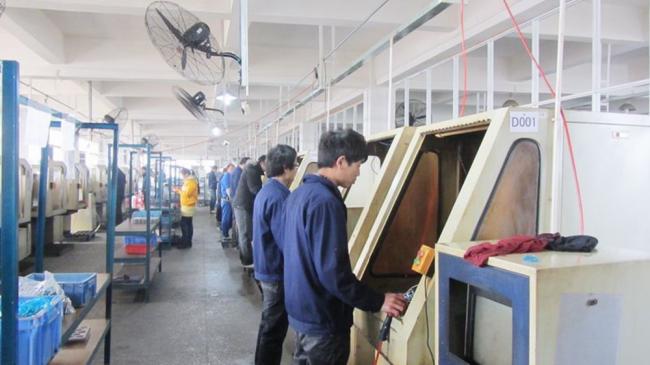

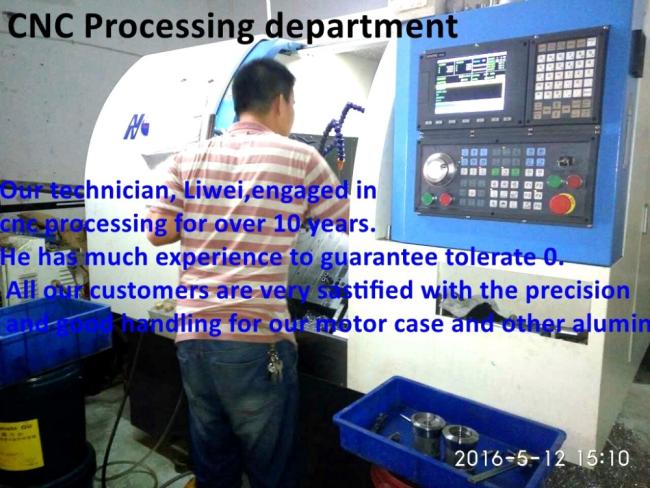

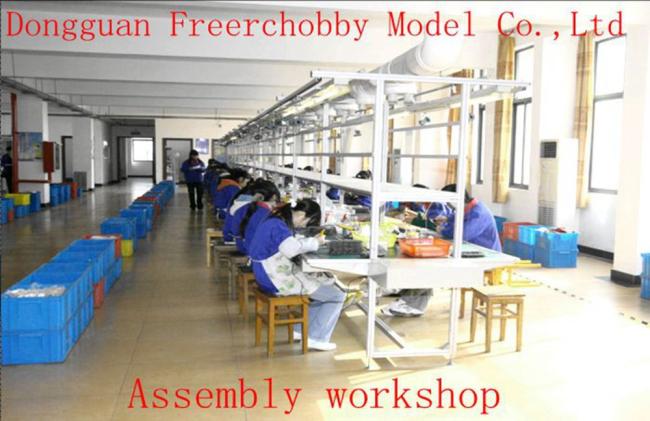

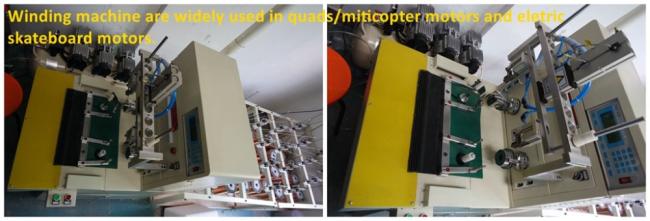

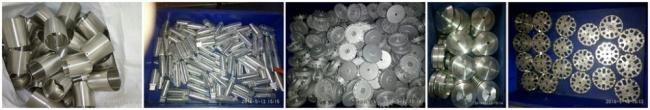

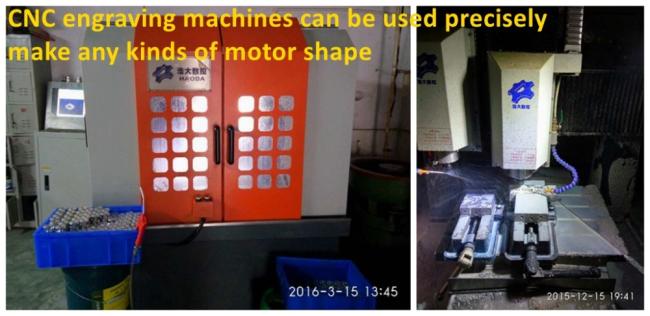

Factory photos:

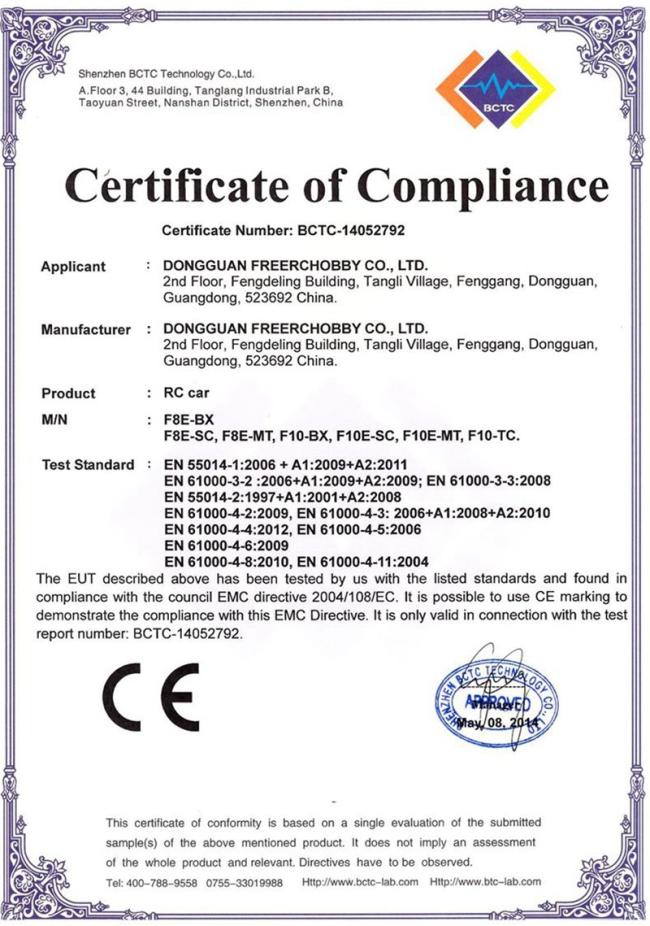

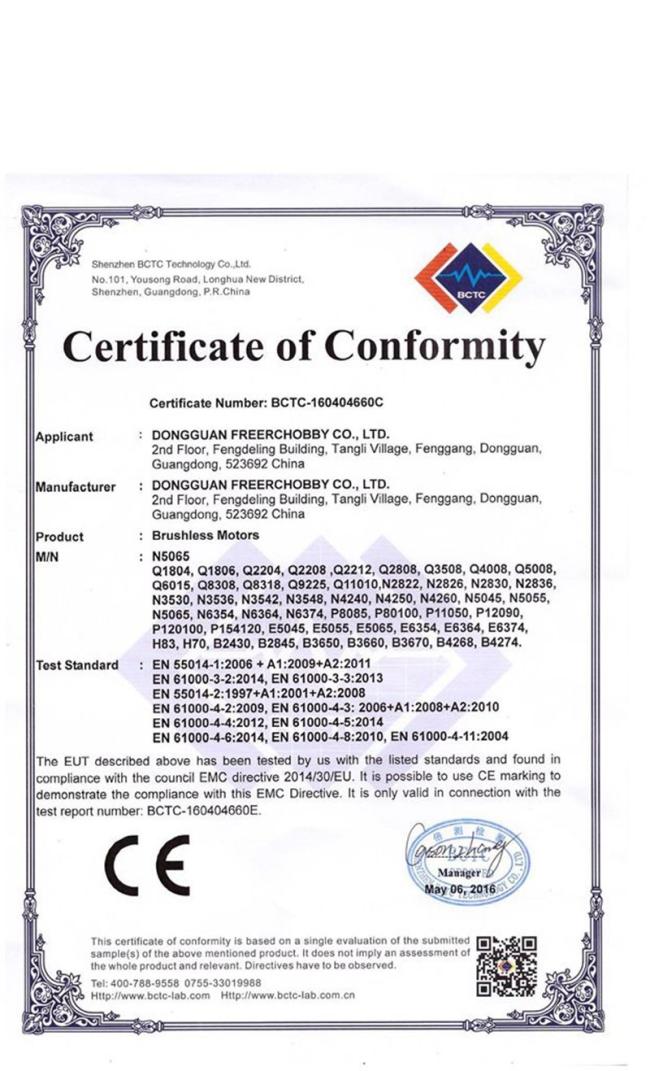

Certificates:
We can provide OEM, ODM serivice for any potential client and projects. Wish to hear from you.
