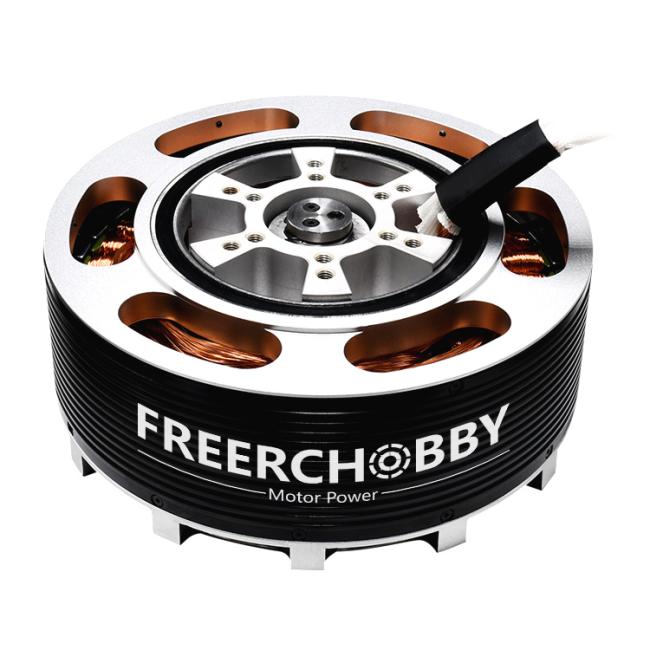

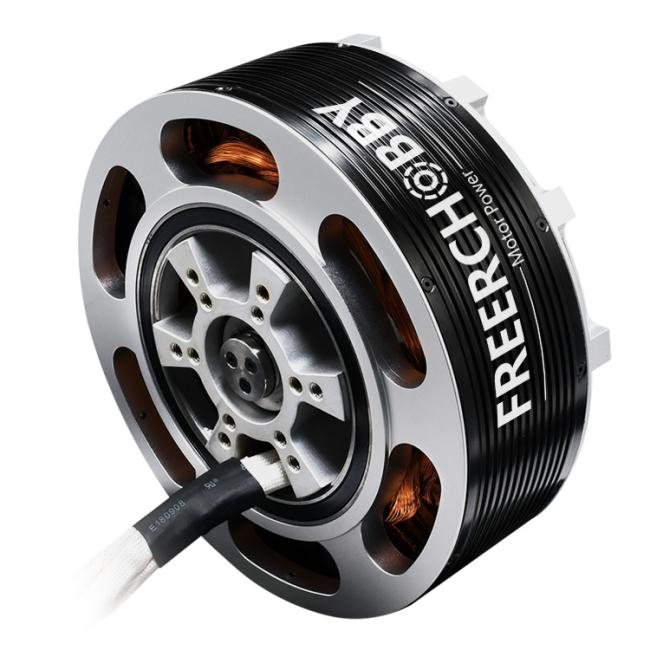

30KW 48V 72V 96V 144V Brushless Permanent Magnet Dc Outrunner Motor for Electric Vehicles Motorcycle Bicycle Go Kart

40KW 48V 72V 96V 144V brushless permanent magnet dc outrunner motor for electric vehicles motorcycle bicycle go kart



MOTOR: MP 20280

KV: 55

MAX POWER: 45KW

CONTINIOUS POWER: 20kw

MAX AMP: 400A

MAX VOLT: 140V

ESC:120v/500A

NO LOAD CURRENT(20v ): 7A

RESISTANCE (mOhm): .45

THRUST: 90kg max

TORQUE:  Max 85Nm

STATOR: 36/40

SIZE: 202x 80( without shaft )

WEIGHT (kg):6.5

SHAFT: 20mm hollow shaft( Accessory pack: Yes)

WOODEN PROPELLER:  JXF propeller

Freerchobby can custom any kinds of Kv for all our motor, the voltage can be fit for 48v-550v.

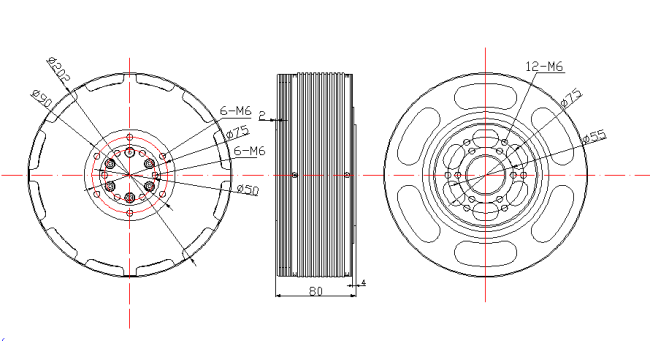

 Motor dimension drawing:



Motor charater:

20280 motor is with 40 magnet design, 20 poles, curve design and SH 155'C high temp level magnet N45 magnet force.

Stator is using japan steel 0.2mm lamilation, less heat

Japan NSK bearing or Skf Bearing

Strong struture design with bottom big bearing support.

Middle center plate with cooling design

 Company profile

 Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.

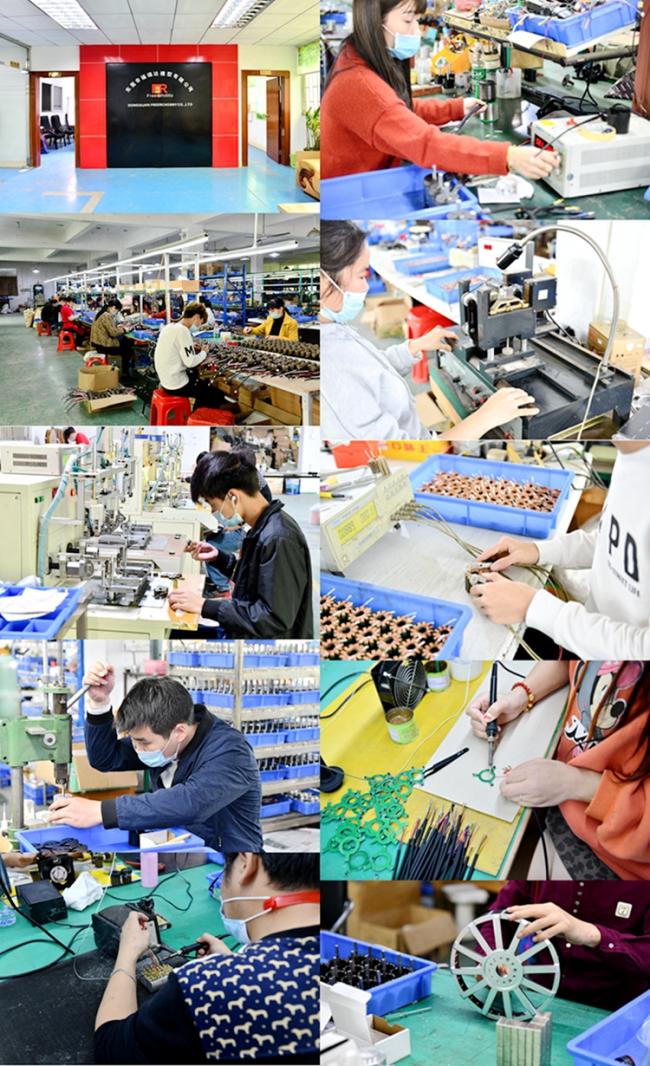

Factory Photos"

Product application:

Certificate

We can provide OEM, ODM serivice for any potential client and projects.  Wish to hear from you.
