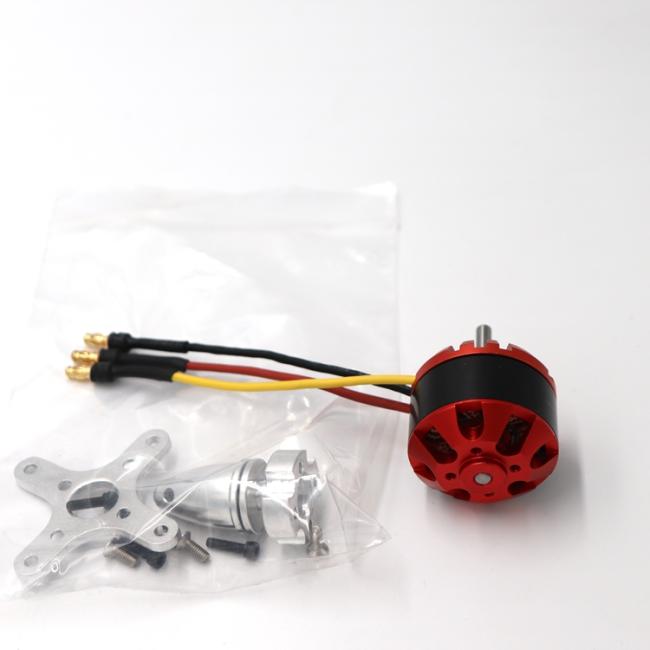

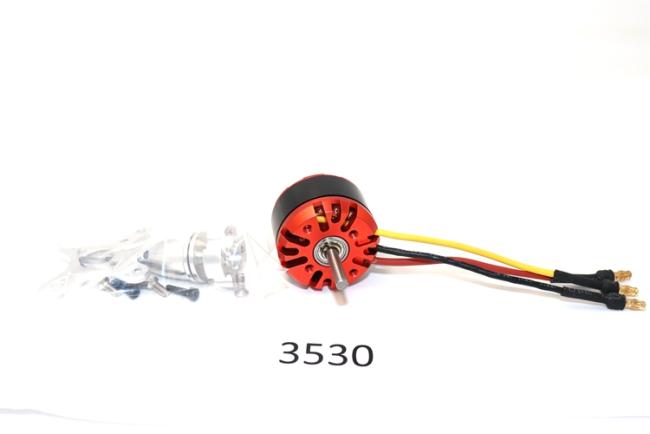

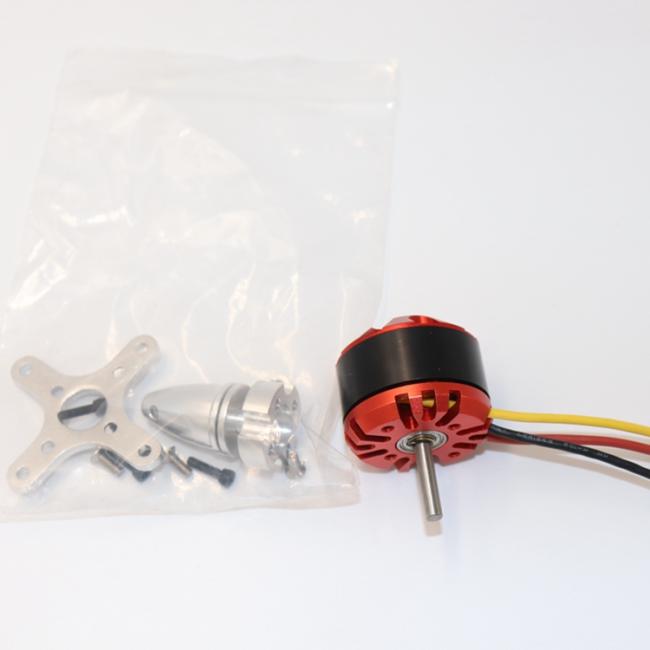

Freerchobby Hot Sale C3530 1000KV RC Outrunner Brushless Motor for Rc Airplane Toy Drone
Freerchobby Hot Sale C3530 1000KV RC outrunner Brushless Motor for rc Airplane Toy drone
The spec MP 3530 1000KV as following:
Motor KV: 1000
Motor type: MP3530
Weight: 90g
Motor Wind: 13
Idle current: 0.6A
Motor Resistance: 0.07600hm
Max. power: 480W
Battery type: 3-4S
ESC(3S): 50-60A
ESC(3S):40-50A
Max Thrust: 2140g
Diameter: 34mm
Length: 32mm
Shaft diameter : 4mm
Extended shaft: 17mm
Total length: 49mm
| prop | prop size | input | motor amp | watts | rpm | pitch speed | static thrust | thrust/W | efficiency | battery loud |
| APC | 10*6 | 11.1v | 22.54A | 259.9W | 9522 | 87km/h | 1464g | 5.63g/w | 82.90% | 4.51c |
| APC | 11*7 | 11.1v | 31.65A | 361.9W | 8757 | 93km/h | 1923g | 5.31g/w | 77.60% | 6.33c |
| APC | 8*6 | 14.8V | 19.28A | 297.7W | 13553 | 124km/h | 1518g | 2.63g/w | 86.60% | 3.86c |
| APC | 9*7 | 14.8V | 27.19A | 462.1W | 12870 | 118km/h | 1949g | 2.72g/w | 84.00% | 5.44c |
Our company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an
RC model manufacturer specializing in designing&producingRC car
model, brushless motor, rc tools and accessories.
About our brushless motor department, our main technician, with 12
years’ motor design experiece, design various size motors for rc
hobby plane, multicopter, such as 28, 35, 42, 50, 63 series. And for
other industrial, such as electric skateboard, electric bike, electric
paramotor, electric car&ship, our sensored motor, watercooling system
motors will be what you request, such as our motor 8085, 80100, 12090,
120100, 154120 ect.
Welcome to visit the updates for our website.

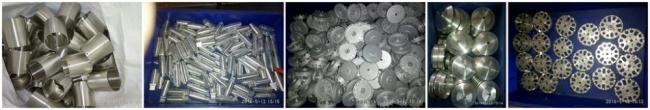

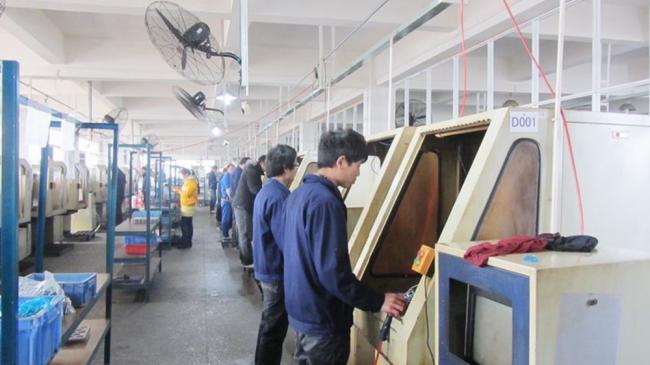

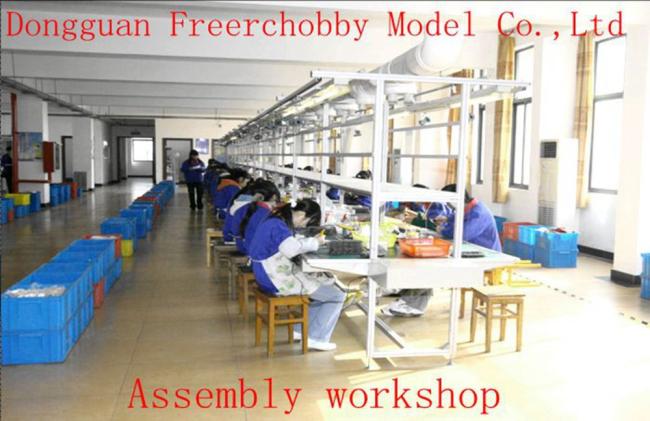

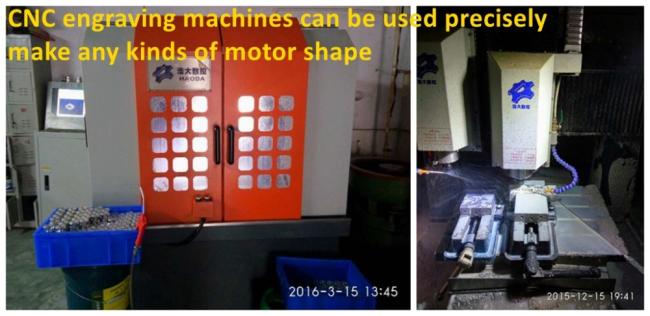

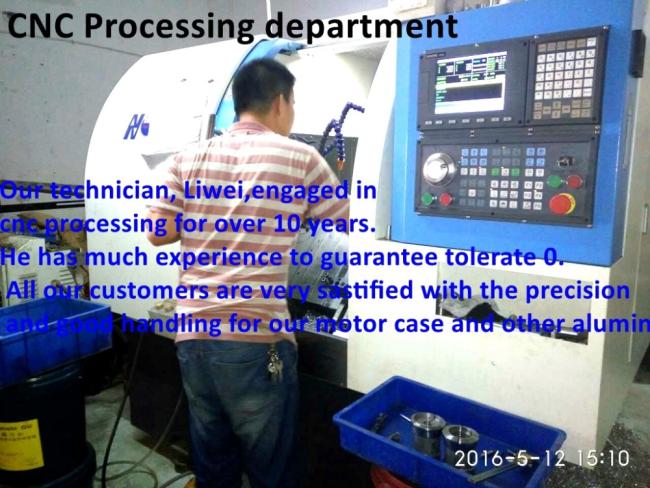

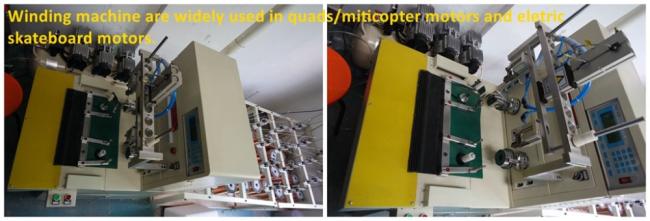

Factory photos:

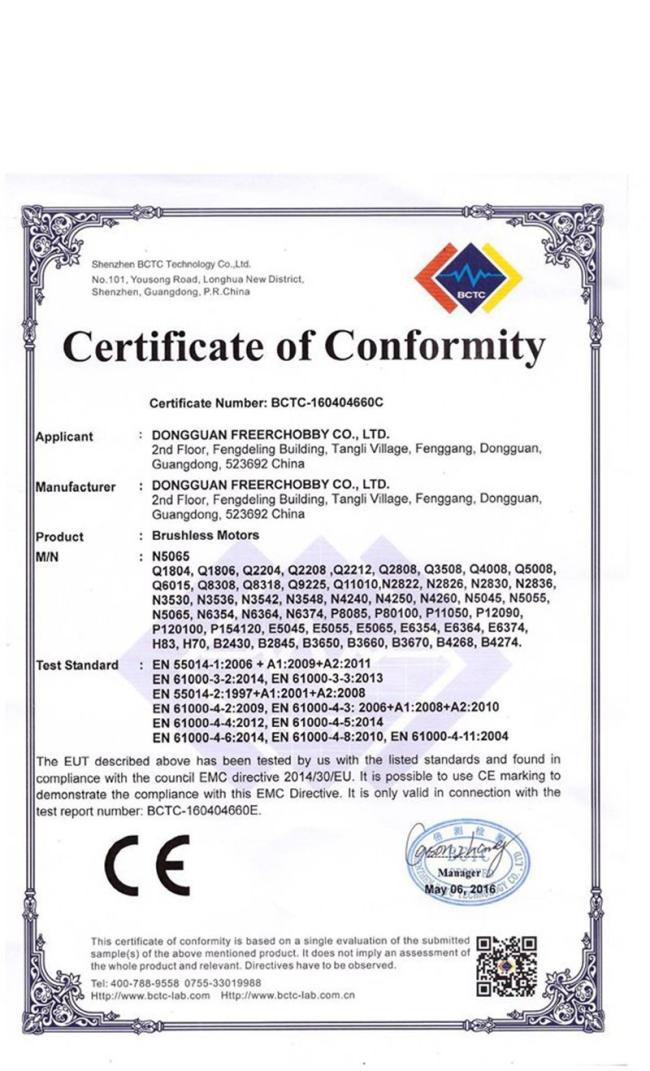

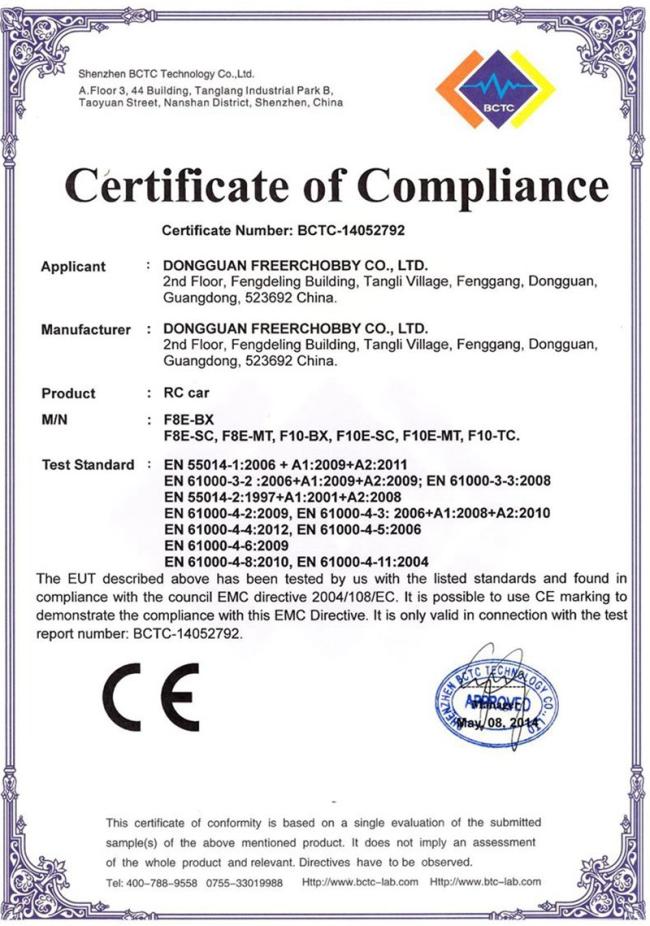

Certificates:
