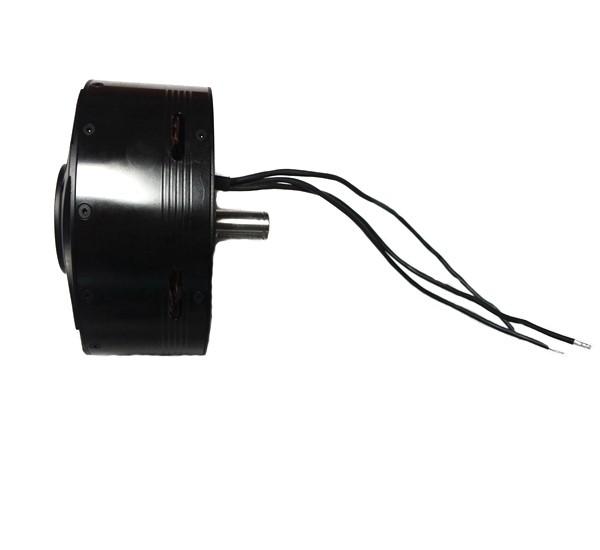

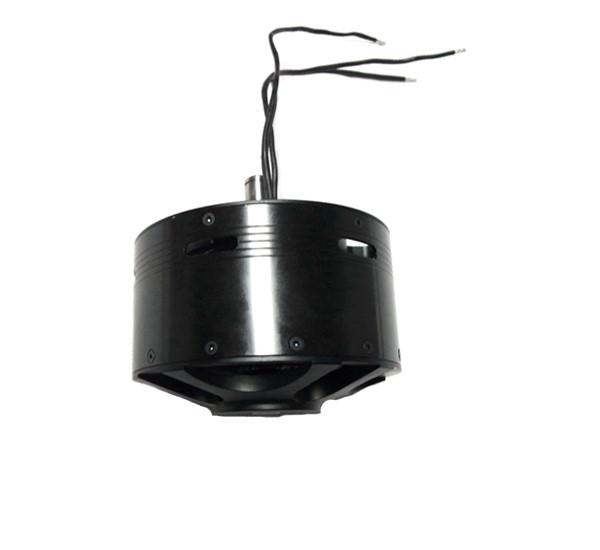

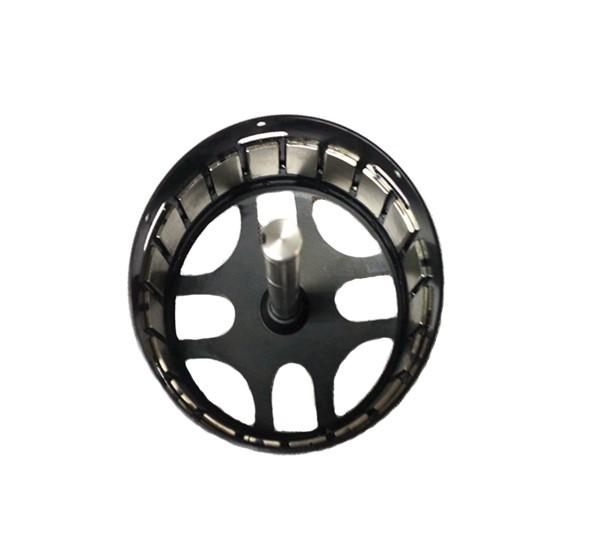

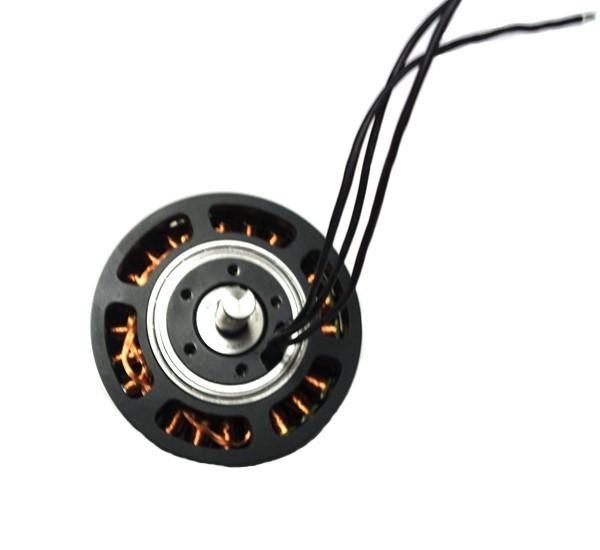

MP10850 50KV 7kw Outrunner Brushless Motor Permanent Magnet Construction for Electric Bikes and Bicycles
MP10850 50KV brushless motor 15Nm toruqe for electric bike, electric bicycles and electric go-karts.
Specifications:
MOTOR: MP10850
KV: 130, 80, 50
MAX POWER: 6KW-7KW
WIRE WINDS:
MAX AMP:150A
ESC: 150/200A
MAX VOLT:18S
NO LOAD current: CURRENT (20V) 1.1A
RESISTANCE (mOhm): 210
SIZE: 108 x 50( without shaft )
Stator: 100*24mm
WEIGHT (g): 1.4kg

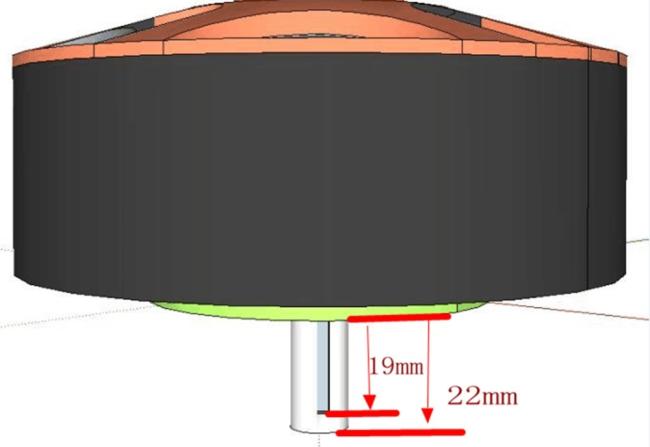

SHAFT: 12mm
Time(seconds) | Temp | RPM | Watt | Nm | Voltage |
0 | 32.2 | 0 | 0 | 0 | 49.7 |
10 | 32.3 | 508 | 90.6 | 0.6 | 49.5 |
20 | 33.3 | 464 | 524.7 | 5.1 | 48.9 |
30 | 39.1 | 515 | 967.3 | 9.4 | 48.1 |
40 | 47.7 | 501 | 999.5 | 10.1 | 47.9 |
50 | 54.9 | 498 | 1000.9 | 10.1 | 47.8 |
60 | 60.7 | 496 | 992 | 10.1 | 47.5 |
70 | 65.6 | 494 | 996.5 | 10.1 | 47.7 |
80 | 69.5 | 493 | 989.4 | 9.9 | 47.5 |
90 | 73.2 | 491 | 986.4 | 9.9 | 47.6 |
100 | 76.3 | 490 | 987.3 | 9.9 | 47.4 |
110 | 79.1 | 489 | 982.9 | 9.9 | 47.3 |
120 | 81.7 | 488 | 989.7 | 9.9 | 47.3 |
130 | 84.2 | 487 | 984.3 | 9.9 | 47.3 |
140 | 86.4 | 486 | 978.2 | 9.9 | 47.3 |
150 | 88.5 | 486 | 979 | 9.9 | 47.3 |
160 | 90.6 | 485 | 984.6 | 9.9 | 47.2 |
170 | 92.6 | 484 | 978.3 | 9.9 | 47.1 |
180 | 94.5 | 484 | 979.7 | 9.9 | 47.1 |
190 | 96.4 | 483 | 976.7 | 9.9 | 47.1 |
200 | 98.2 | 483 | 980 | 9.9 | 47 |
210 | 99.9 | 483 | 984.2 | 9.9 | 47 |
220 | 101.6 | 481 | 979.3 | 9.9 | 46.9 |
230 | 103.4 | 481 | 977.6 | 9.9 | 47 |
240 | 105.1 | 480 | 973.2 | 9.9 | 47 |
248 | 104.6 | 367 | 0 | 0 | 48.3 |
Packaging Details: EVA FOAM PACKAGE
Delivery Detail:10 days after the payment is received
Our Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producing RC car model, brushless motor, rc tools and accessories. About our brushless motor department, our main technician, with 12 years' motor design experiece, design various size motors for rc hobby plane, multicopter, such as 28, 35, 42, 50, 63 series. And for other industrial, such as electric skateboard, electric bike, electric paramotor, electric car&ship, our sensored motor, watercooling system motors will be what you request, such as our motor 8085, 80100, 12090, 120100, 154120 ect.
Welcome to visit the updates for our website.

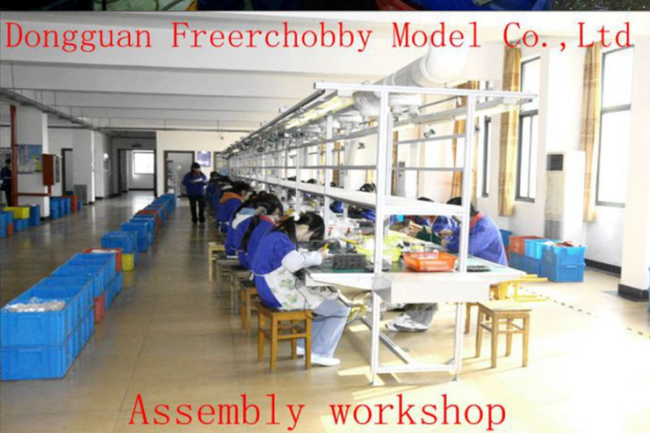

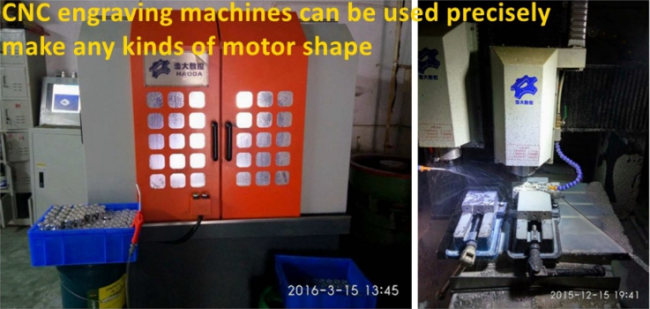

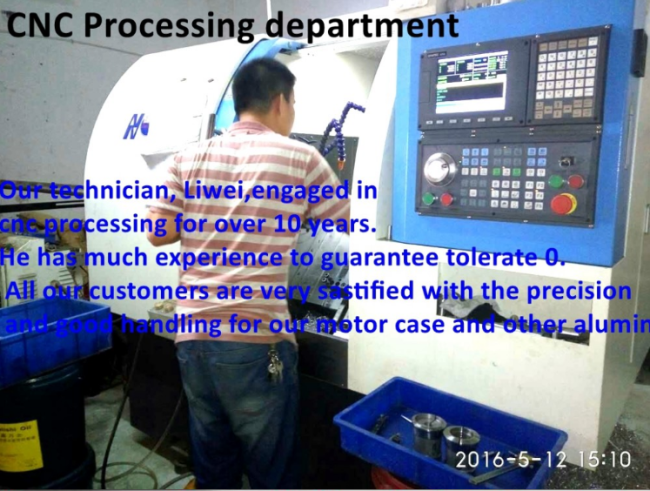

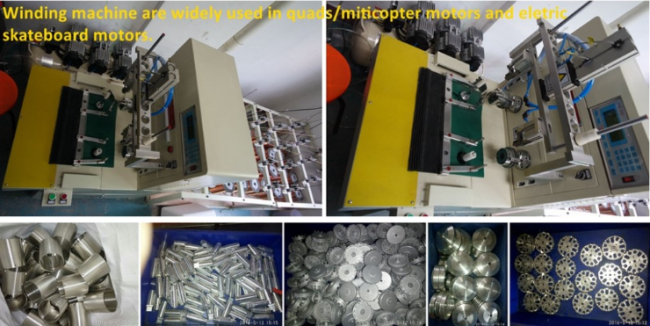

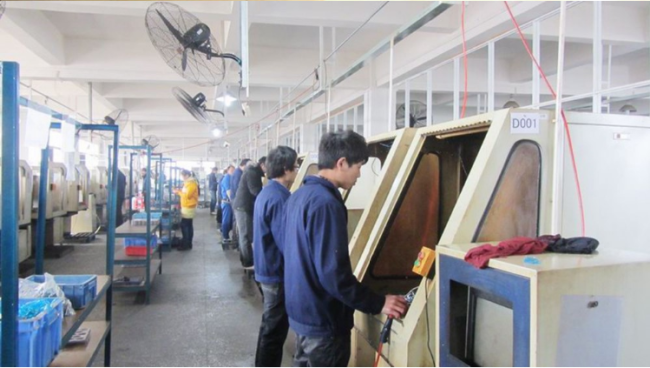

Factory photos:
We can provide OEM, ODM serivice for any potential client and projects. Pleased to hear from you.
Ask: Why choose your company?
Answer: We are an RC model manufacturer specializing in designing & producing RC car model, brushless motor, rc tools and accessories with 12 years' motor design experiece. We have established long term business relations with many famous companies both in the electric skatboard sector and in electric paramotor an paragliders.

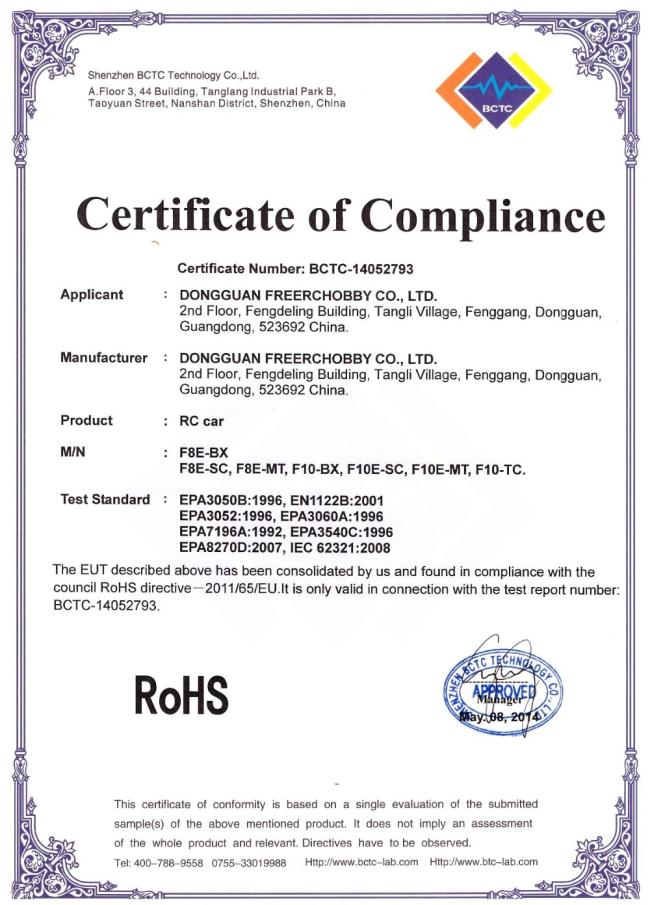

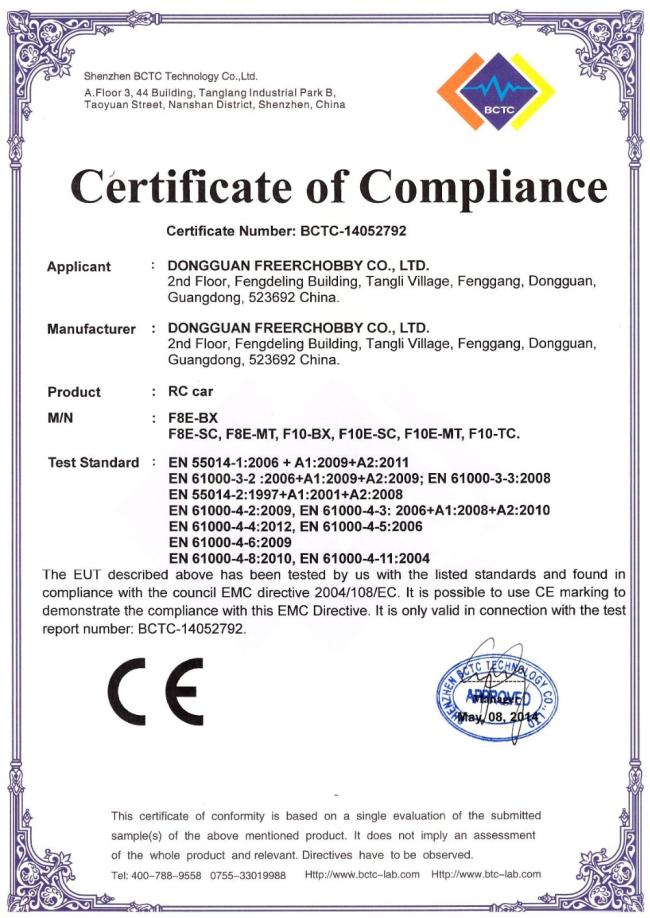

Ask: What certificate have you got?
Answer: Our products has passed CE and ROHS certificates.
