Freerchobby MP202/80 30KW 80Nm DC Outrunner Brushless Motor for DIY Electric Helicopter
MP202/80 KV55 outrunner brushless motor 45kw for DIY Helicopter
Specifications
The spec as following:
MOTOR: 202/80
KV: 55
MAX POWER: 40kw
Continous power:
MAX AMP: 380A
ESC:120v/500A
MAX VOLT: 200V
RESISTANCE (mOhm): .35
SIZE: 202x 80( without shaft )
Stator/magnet: 36/40
WEIGHT (kg):6.4
SHAFT: 20mm hollow shaft
Accessory pack: Yes
Thurst: 90kg
Torque: 80Nm maximum continual
Other kv can be 27 32 36 42 55 ect. For low kv, you had better chosen higher voltage.

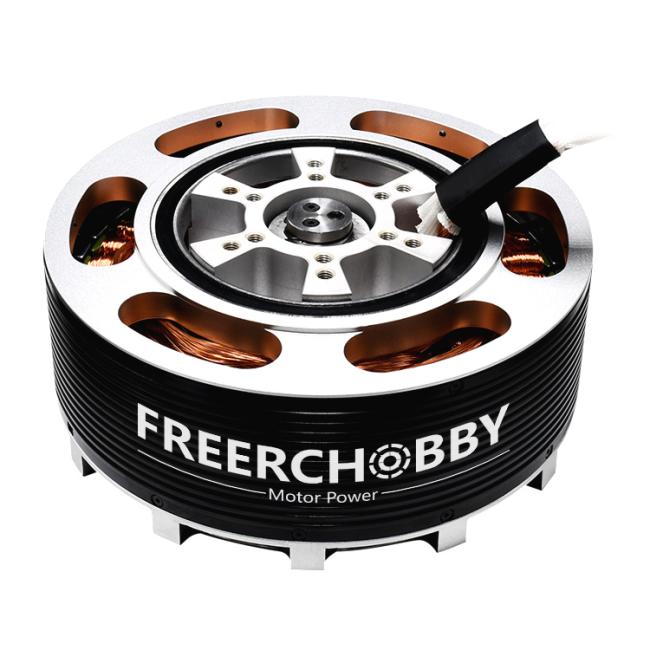

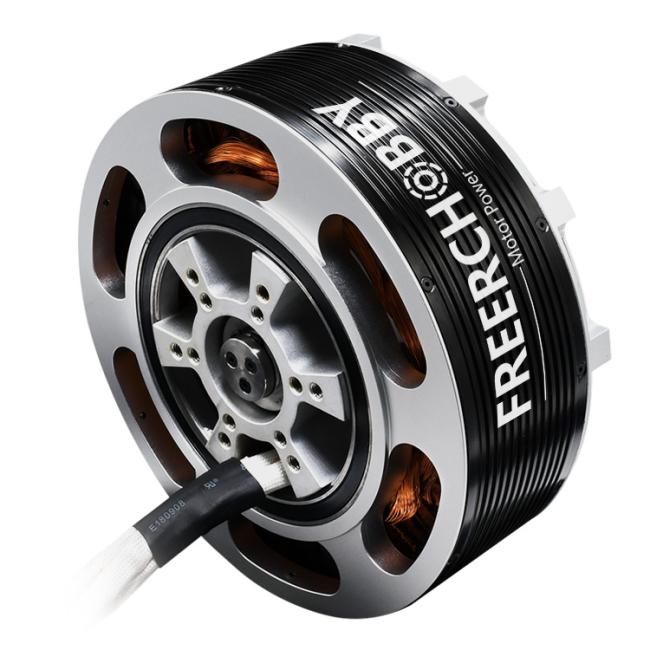

Motor image

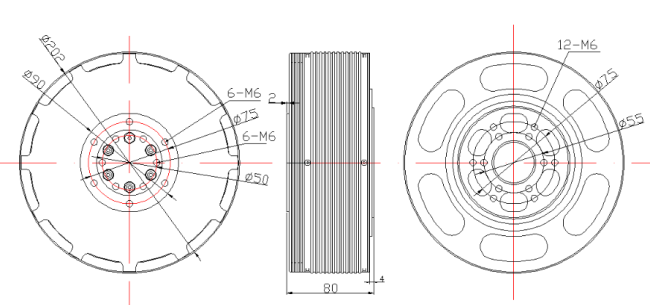

Motor drawing:

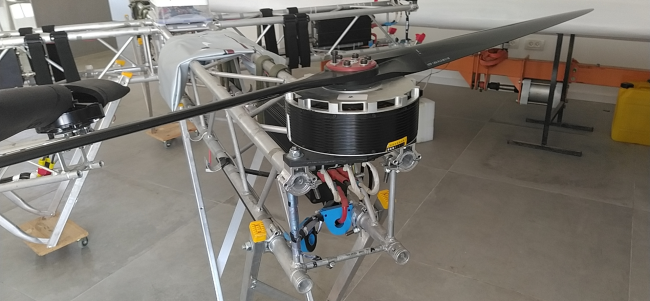

Application:

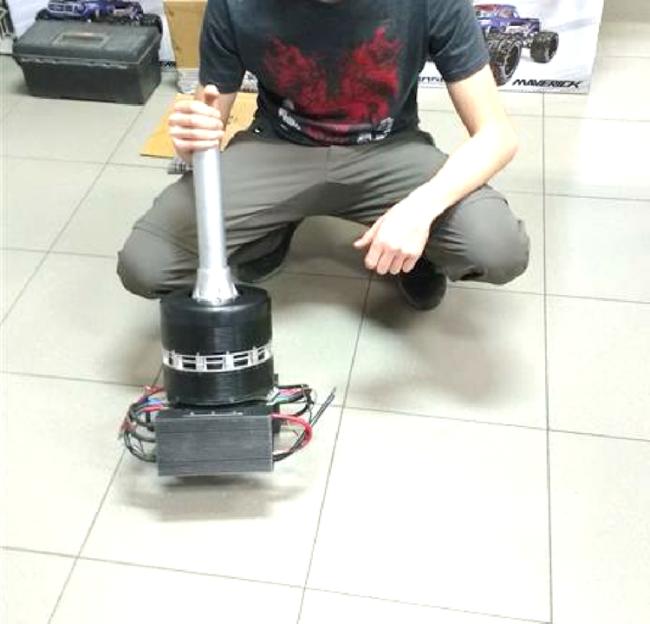

Other application:
Company Introduction:
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.
Certificate:
We can provide OEM, ODM serivice for any potential client and projects. Wish to hear from you.
