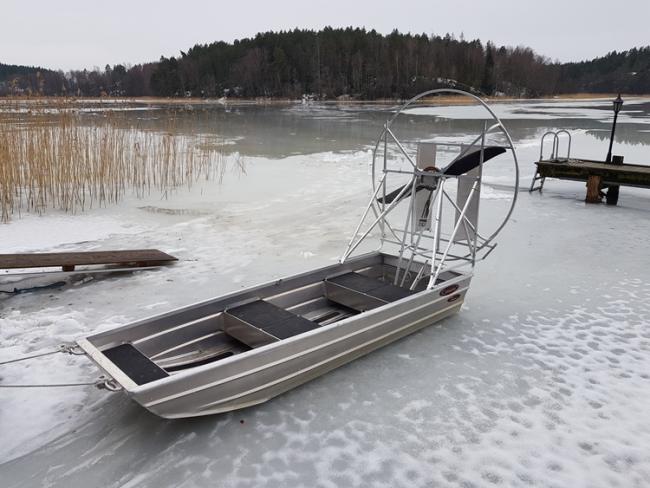

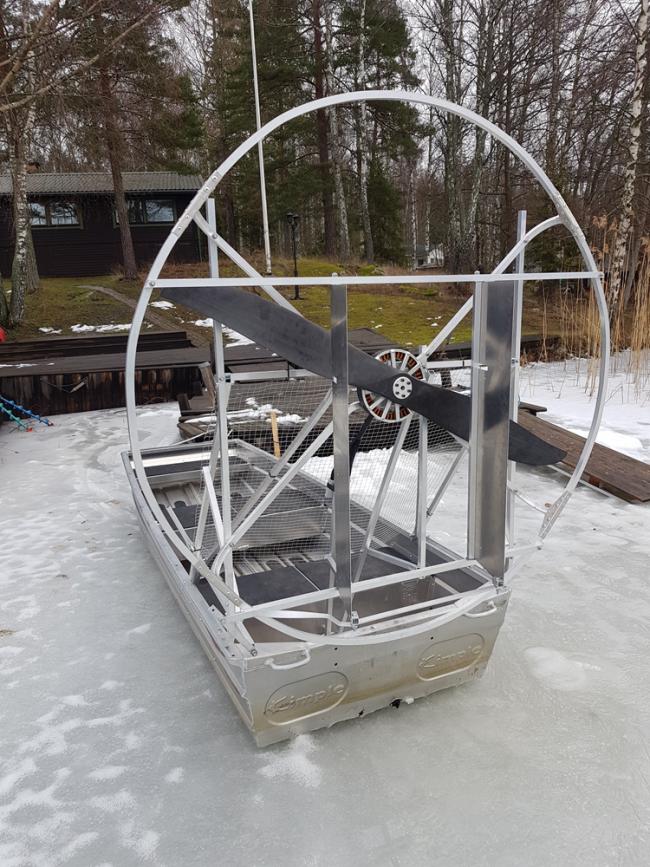

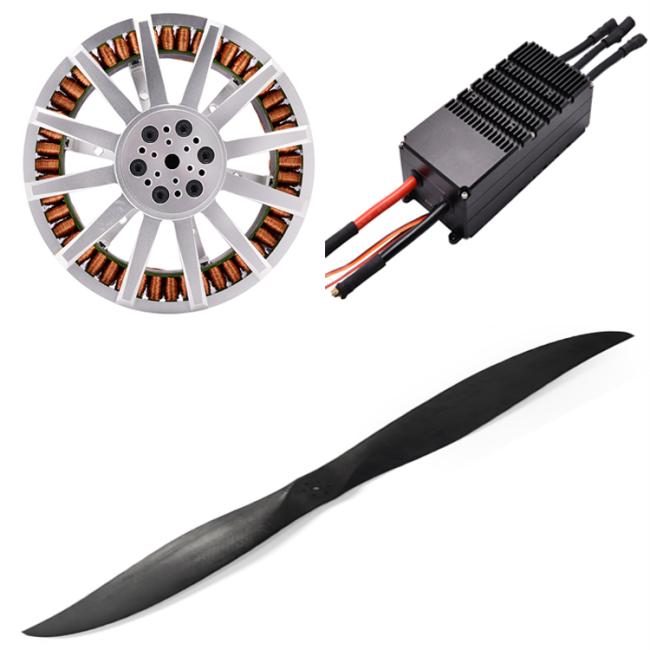

30KW MP23850 Brushless Motor 24s 300A Esc and T6318 Inch Propeller for Airboat Kit Aircraft Airdrives Hovercraft
Price:
$2,395-2,580 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Freerchobby
Product Description
Product Description
30KW MP23850 brushless motor 24s 300A esc and T6318 inch propeller for airboat kit aircraft airdrives hovercraftower Motor
Model No:
Technical description

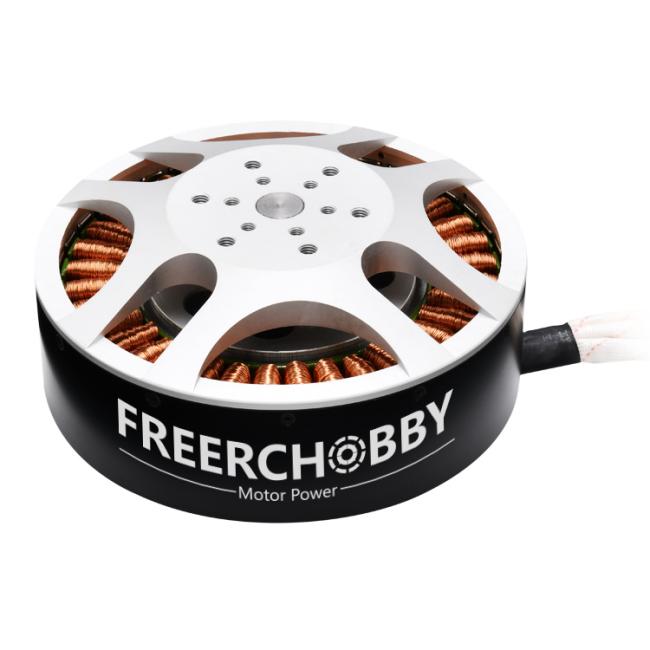

Lightweight MP238/50 35kw Brushless Motor for airboat
Traiff code/ 8501320009
Model/MP238/50 35kw
Size d.238*50
Shaft d. 25 mm
Stator 220*24mm
KV/ 35
Wight( gram) 5000
Axis rotation height 119 mm
DC /synchronous/
Idle current (10V) 4.4A
Rated Voltage (Lipo) (Lipo): 24S
Max. Voltage / 100V
Max Current (120s) / 280A
Rated power/ 16 kW
Max Power / 30 kW
Max. Continuous power 120sec 22 kW , 10 sec 35kW.
Internal resistance/ 0,0143
Induction/ -41 uh
Lead: Enameled wire 200mm (0,34mm 50 pcs one strand 4 turn)
Thrust/92-95 kg
Compatible with ESC 24SV 300A
Propeller : 55 inch 3 blade & 63 inch 2 blade
2. Electronic Speed Controller FRC 24S 300A for paraglider/drone brushless motor
Type/FRC 24S 300A
Tariff code/9032900000
Size mm/ 140.5*66.6*41.1
Non-programmable/
Con. Current/: 240А
Weight g/ : 900
No BEC
Support Voltage/.12-24S
Input voltage range DC50-100V Max DC100V
Max current(5S) : 300Аs.
Model No:
Technical description
Lightweight MP238/50 35kw Brushless Motor for airboat
Traiff code/ 8501320009
Model/MP238/50 35kw
Size d.238*50
Shaft d. 25 mm
Stator 220*24mm
KV/ 35
Wight( gram) 5000
Axis rotation height 119 mm
DC /synchronous/
Idle current (10V) 4.4A
Rated Voltage (Lipo) (Lipo): 24S
Max. Voltage / 100V
Max Current (120s) / 280A
Rated power/ 16 kW
Max Power / 30 kW
Max. Continuous power 120sec 22 kW , 10 sec 35kW.
Internal resistance/ 0,0143
Induction/ -41 uh
Lead: Enameled wire 200mm (0,34mm 50 pcs one strand 4 turn)
Thrust/92-95 kg
Compatible with ESC 24SV 300A
Propeller : 55 inch 3 blade & 63 inch 2 blade
2. Electronic Speed Controller FRC 24S 300A for paraglider/drone brushless motor
Type/FRC 24S 300A
Tariff code/9032900000
Size mm/ 140.5*66.6*41.1
Non-programmable/
Con. Current/: 240А
Weight g/ : 900
No BEC
Support Voltage/.12-24S
Input voltage range DC50-100V Max DC100V
Max current(5S) : 300Аs.
3, Propeller T6318
Length: 63inch
Pitch:18
Weight:1kg
Specification
MP23850 38kv Eprops: 3 blade J6 4L ESC: 100v 300A or 120v 500A flier esc | ||||
Voltage | Current | Thrust(KG) | ||
98V | 33A | 24.8 | ||
98V | 64A | 40.3 | ||
97V | 100A | 54.3 | ||
97V | 134A | 65kg | ||
97V | 160A | 75.7 | ||
97V | 190A | 83.1 | ||
97v | 200A | 88.5 | ||
97v | 210A | 92 | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment.
We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.

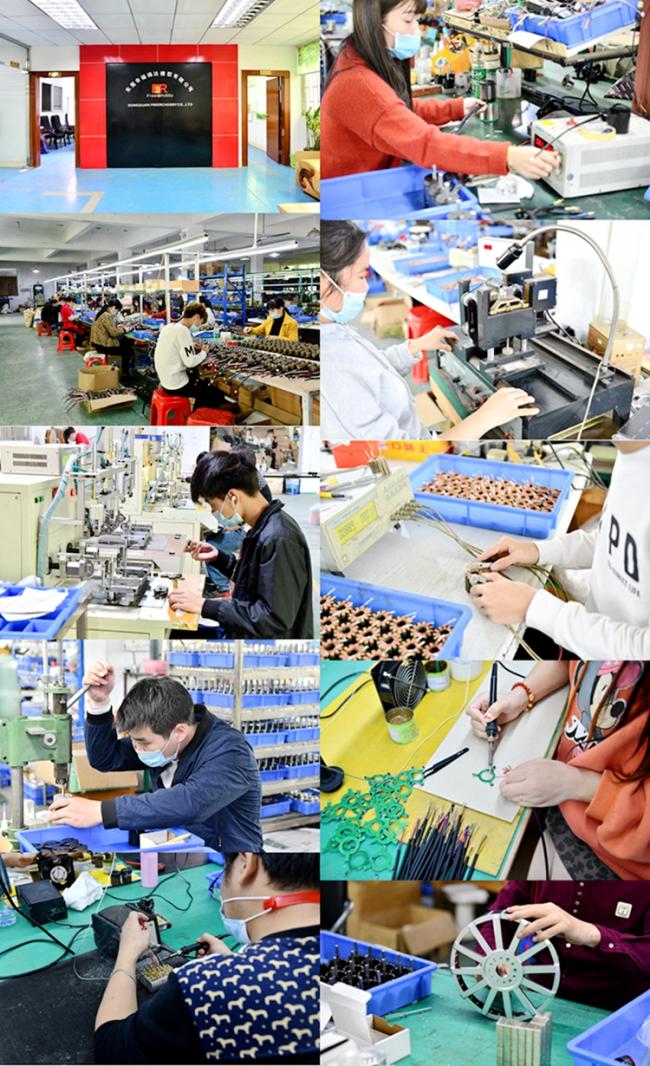

Freerchobby Workshop
The company strictly controls each process to be standardization, systematization and unification. The company has testing
equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester,
oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can
reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS
certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives
full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the
fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!.
equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester,
oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can
reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS
certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives
full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the
fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!.
FAQ
Why choose Freerchobby?
Freerchobby is the only real factory who provide whole solution for EV vehicle, EV boat, EV airplane, Mega drone, EPPG, Eparaglier, Robotic, skateboard, efoil, surfboard, jetboard ect.
Why freerchobby can provide cheap cost in high end qualityWe have all the cnc machine, auto lathes for process all the production. 5 winding machine can help save labor cost. ESC is our own designed electronic product. Propeller is our own mold products as well.
