China FRC H202150 8-10kv 150kg Thust Propulsion System Dc 400v Brushless Motor for Manned Aircraft Multi-rotor Drone and Airplane for sale

FRC H202150 8-10kv 150kg Thust Propulsion System Dc 400v Brushless Motor for Manned Aircraft Multi-rotor Drone and Airplane

Name: FRC H202150 8-10kv 150kg Thust Propulsion System Dc 400v Brushless Motor for Manned Aircraft Multi-rotor Drone and Airplane
Brand: Dongguan Freerchobby Co.,Ltd

Price Negotiable

Price: $1,705-2,015 / piece

MOQ: 1 piece

Delivery Time: Negotiable

Brand: FreeRcHobby

Product Description

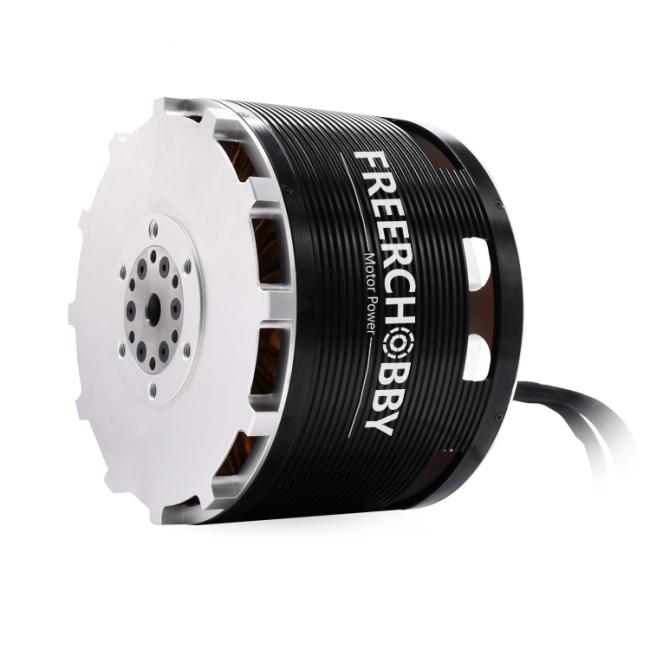

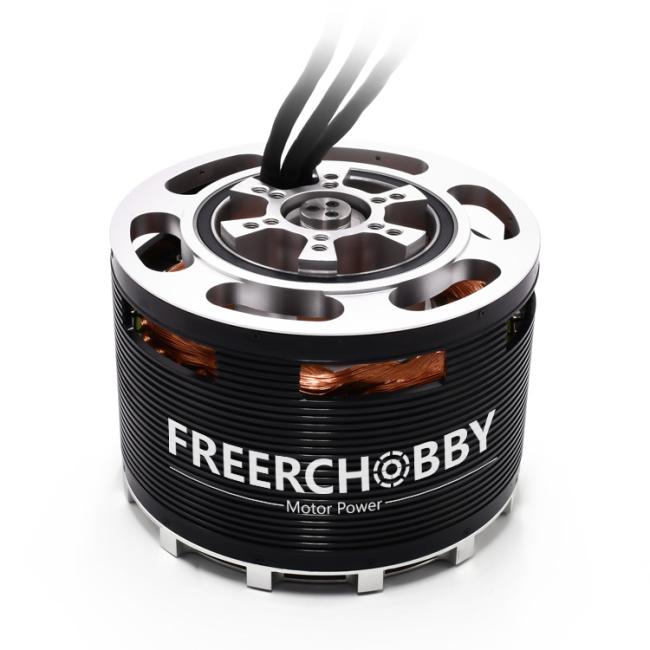

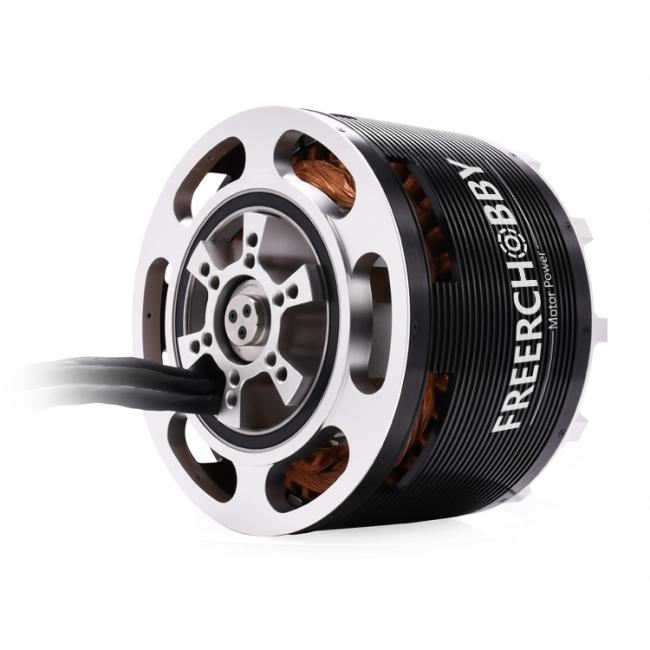

H202150 8-10kv 150kg Thust Propulsion System dc 400v brushless motor for Manned Aircraft Multi-rotor Drone and airplane

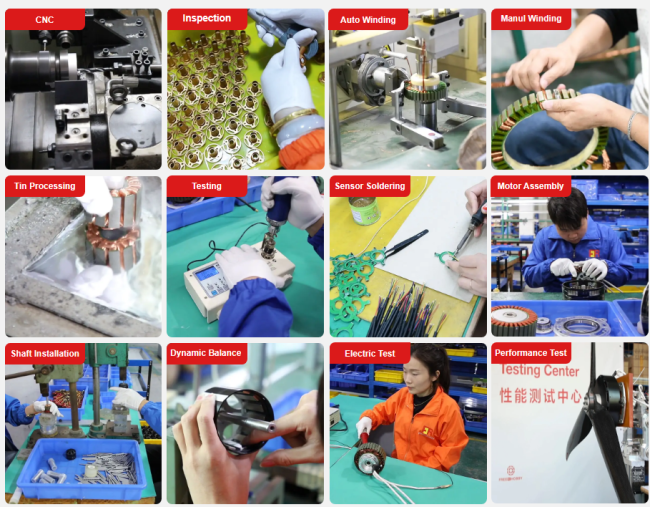

FreeRcHobby high-power brushless motor is widely used in large load multi-rotor UAV, manned ultraight 1-2 seat aircraft, ducted fan and so on. Our products adopt the best electromagnetic scheme design, as well as advanced import cnc auto lathes, fully automated production and processing lines, products through strict testing like internal resistance test, over 1000V grounding test, dynamic balance adjustment, salt spray test, as well as propeller load test, to ensure 100% quality pass, customers buy rest assured, with peace of mind.

Motor	MP202150
Max Power	More than 15kw
Torque	120Nm
Weight	11.8kg
voltage	300-400V
AMP	120-160A

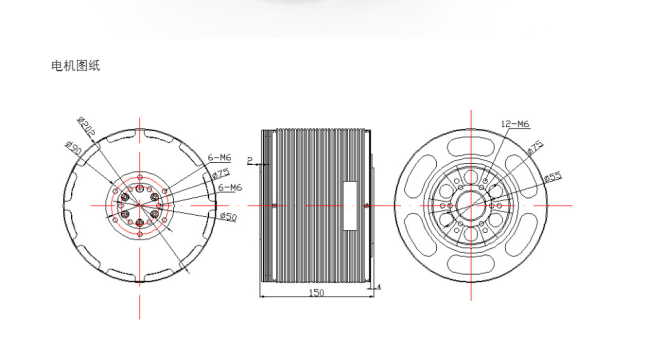

Size	202/150mm
ESC	300-400V 400A
RMP	2500-5000
Shaft	20mm hollow shaft

throttle - %	PWM - us	Voltage - V	current - A	thrust - gf	torque - N*m	RPM	Temp	Main power	shaft power - W	effiency - %	Prop effiency- gf/W	system effiency - gf/W
10	1180	417.6	0.4	1144	0.99	240	30	167	24.9	14.9	46	6.8
20	1266	417.6	1.52	7544	6.06	540	29.9	634.8	342.7	54	22	11.9
30	1352	417.4	2.7	12738	9.86	690	29.6	1127	712.5	63.2	17.9	11.3
40	1437	417.2	10.11	36884	28.3	1200	29.6	4217.9	3556.3	84.3	10.4	8.7
50	1522	416.9	19.31	58195	44.7	1500	29.7	8050.3	7021.5	87.2	8.3	7.2
60	1608	416.5	32.52	82644	64.45	1770	29.9	13544.6	11946.1	88.2	6.9	6.1
70	1694	415.9	51.69	112552	88.74	2070	30.3	21497.9	19236.2	89.5	5.9	5.2
80	1779	415.1	80.16	146772	117.15	2370	30.6	33274.4	29075	87.4	5	4.4
90	1864	414.8	91.23	160154	128.01	2430	31.5	37842.2	32574.6	86.1	4.9	4.2
100	1950	414.5	92.7	160837	129.36	2430	31.5	38424.2	32918.1	85.7	4.9	4.2
