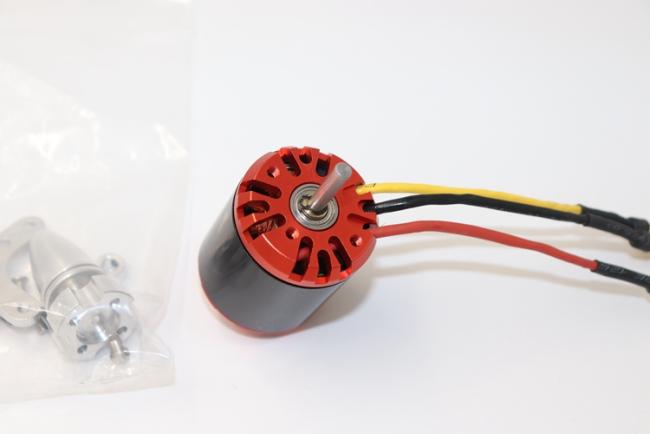

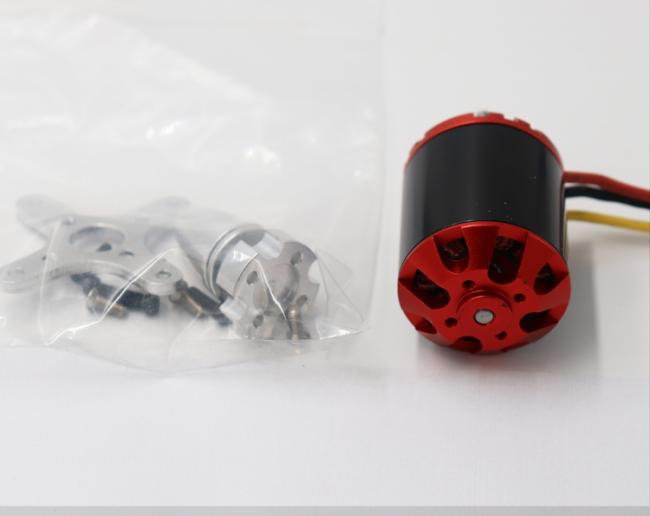

Freerchobby 3548 900kv RC Hobby Outrunner Brushless Motor for Model Airplanes air Plane Engine Helicopter Drone
Freerchobby 3548 900kv RC Hobby outrunner brushless motor for model airplanes air plane engine helicopter drone, rc plane, rc drone ect
The spec MP 3548 900KV as following:
Motor KV: 900
Motor type: MP3548
Weight: 171g
Motor Wind: 5
Idle current: 2.1A
Motor Resistance: 0.04800hm
Max. power: 850W
Battery type: 3-S
ESC: 60-70A
Max Thrust: 2824g
Diameter: 35mm
Length: 52mm
Shaft diameter : 5mm
Extended shaft: 17mm
Total length: 69mm
| prop | prop size | input | motor amp | watts | rpm | pitch speed | static thrust | thrust/W | efficiency |
| APC | 10*7 | 11.1v | 25.77A | 278.1W | 8633 | 92km/h | 1404g | 3.36g/w | 81.30% |
| APC | 11*7 | 11.1v | 29.60A | 360.07W | 8306 | 89km/h | 1730g | 4.84g/w | 81.80% |
| APC | 12*8 | 11.1v | 46.51A | 478.8W | 7792 | 95km/h | 2259g | 3.24g/w | 80.01% |
| APC | 13*8 | 11.1v | 55.99A | 583.9W | 7393 | 90km/h | 2585g | 4.43g/w | 77.40% |
| APC | 9*8 | 14.8V | 34.04A | 482.7W | 11446 | 140km/h | 2056g | 2.23g/w | 81.80% |
Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an
RC model manufacturer specializing in designing&producingRC car
model, brushless motor, rc tools and accessories.
About our brushless motor department, our main technician, with 12
years’ motor design experiece, design various size motors for rc
hobby plane, multicopter, such as 28, 35, 42, 50, 63 series. And for
other industrial, such as electric skateboard, electric bike, electric
paramotor, electric car&ship, our sensored motor, watercooling system
motors will be what you request, such as our motor 8085, 80100, 12090,
120100, 154120 ect.
Welcome to visit the updates for our website.

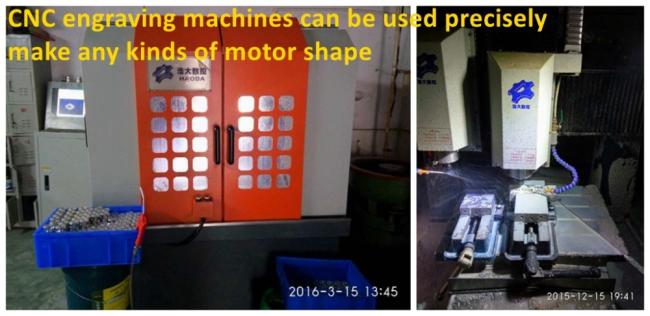

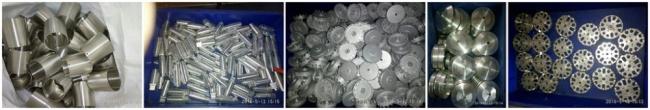

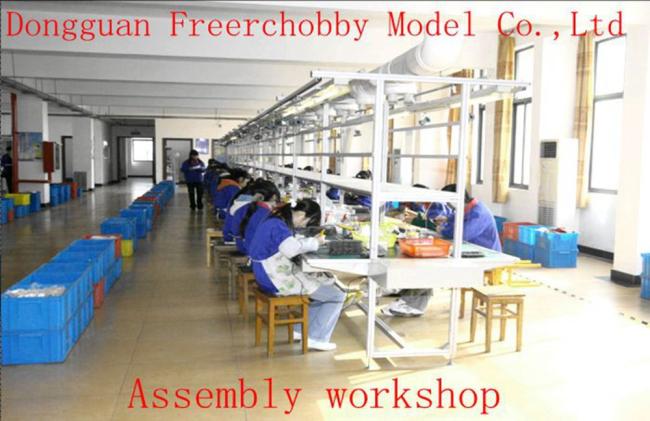

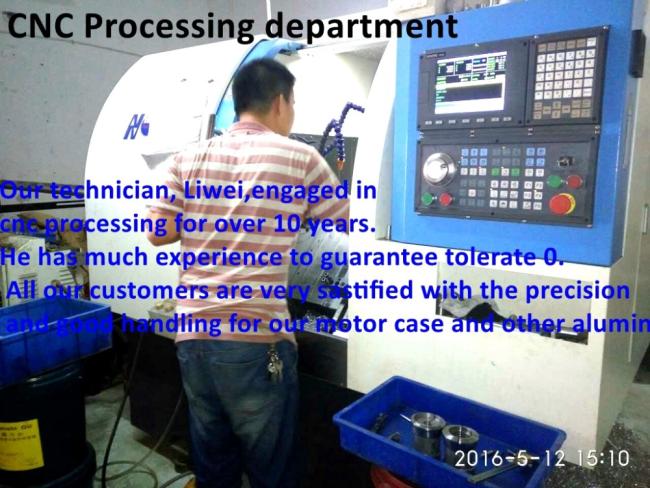

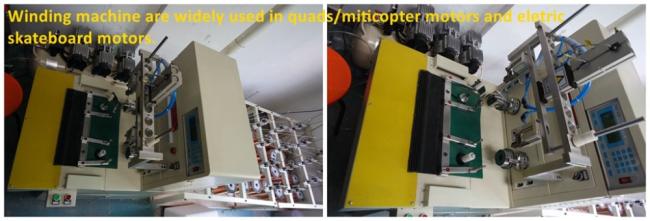

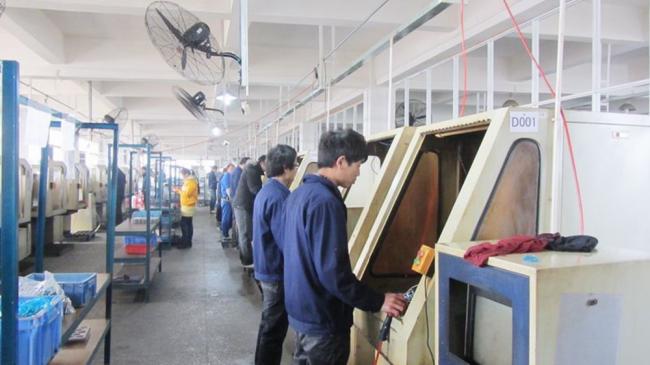

Factory photos:

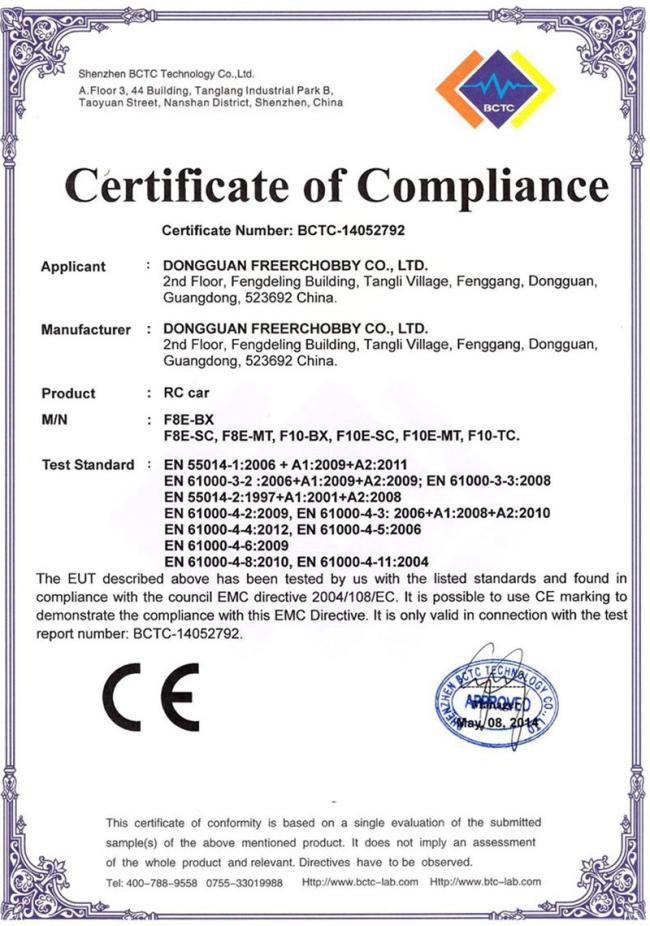

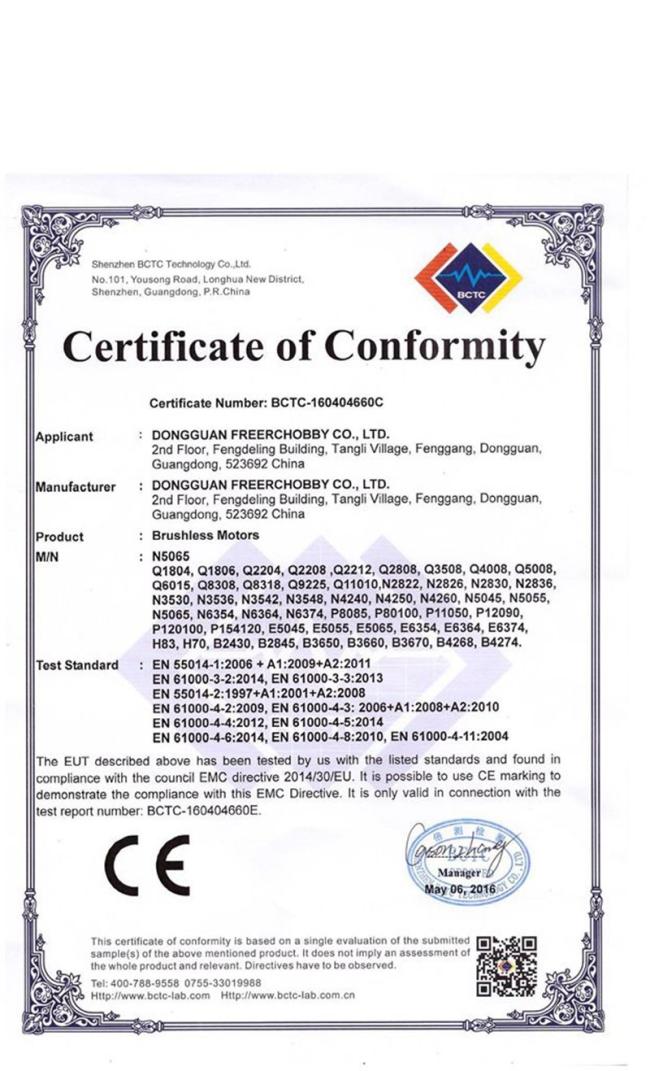

Certificates:
