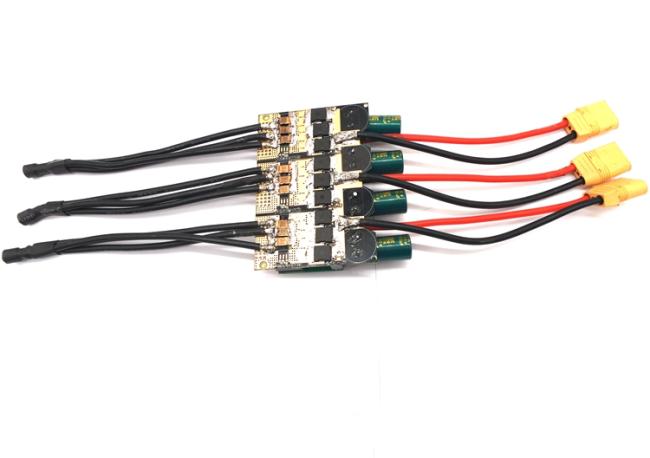

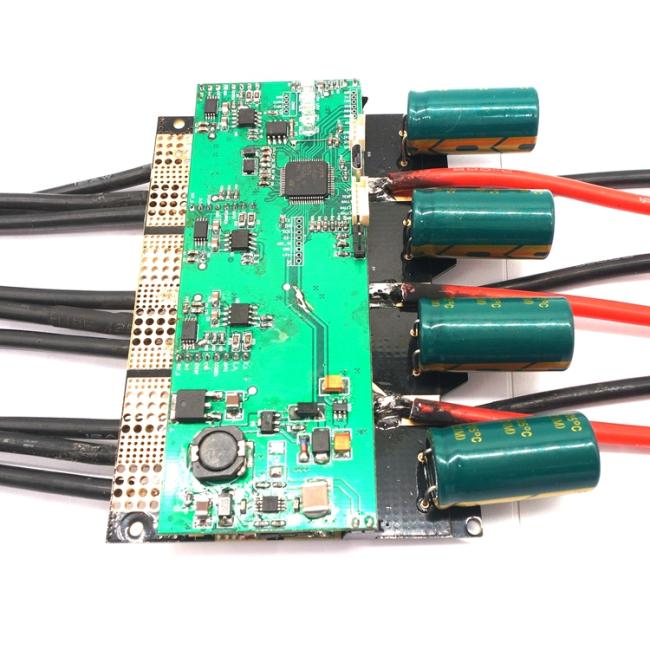

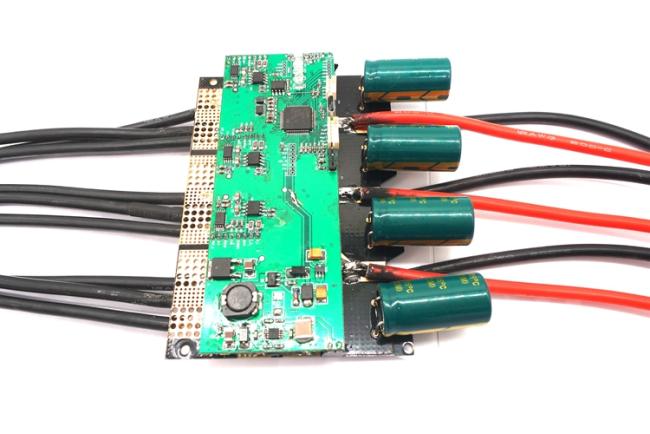

FRC 75V 350A BULL ESC Based on Vesc for EV Vehicle Efoil Boat Go Kart Ect

FRC NEW 75v 350A ESC - based on Vedder Electronic Speed Controllers with sealed CNC Heat sink Box

Spec:

       Hardware:  V 6.8

       Firmware:  V3.65 (Always updated with lattest version)

 Voltage: 6V – 75V (Safe for 3S to 16S LiPo).
Voltage spikes may not exceed 60V!
 Current: Continuous 300A, Burst 450A.  Values depend on the temperature and air

         circulation around the device!
5V 1.5A output for external electronics
 3.3V 1A output for external electronics
 Modes: DC, BLDC, FOC (sinusoidal)
 Supported sensors: ABI, HALL, AS5047

Features

Current and voltage measurement on all phases
Regenerative braking
Traction control (single and twin setup)
Sensored or sensorless operation + hybrid mode
Configurable RPM-, current-, voltage- and power limits

Input source: PPM, Analog, NRF Nyko Kama Nunchuck

Communication ports: USB, CAN, UART

Throttle curve and ramping for all input sources
Separate throttle curves for acceleration and brakes
Seamless 4-quadrant operation
 Motor revolution, amp hour, watt hour counting

Real time data analysis and read out via communication ports


Adjustable protection against:
Low input voltage
              High input voltage
             High motor current
             High input current

                  High regenerative braking current (separate limits for the motor and the input)
                High RPM (separate limits for each direction).
               Over tempertaure (MOSFET and motor)
