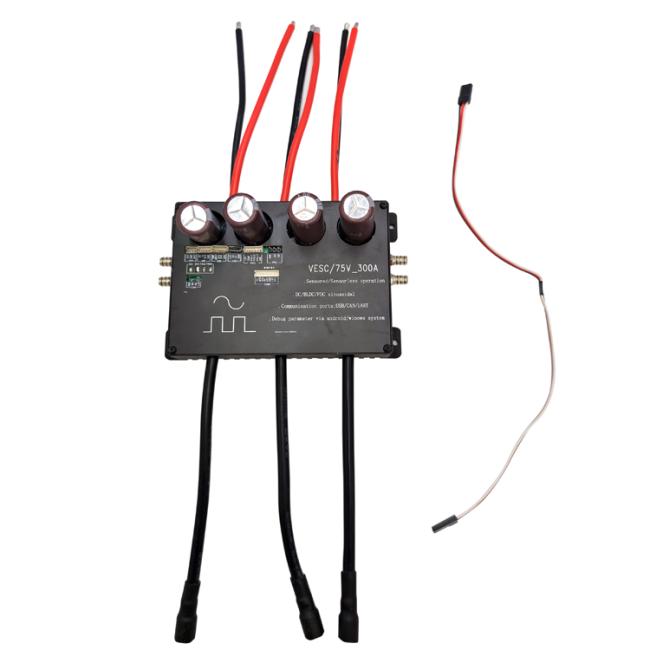

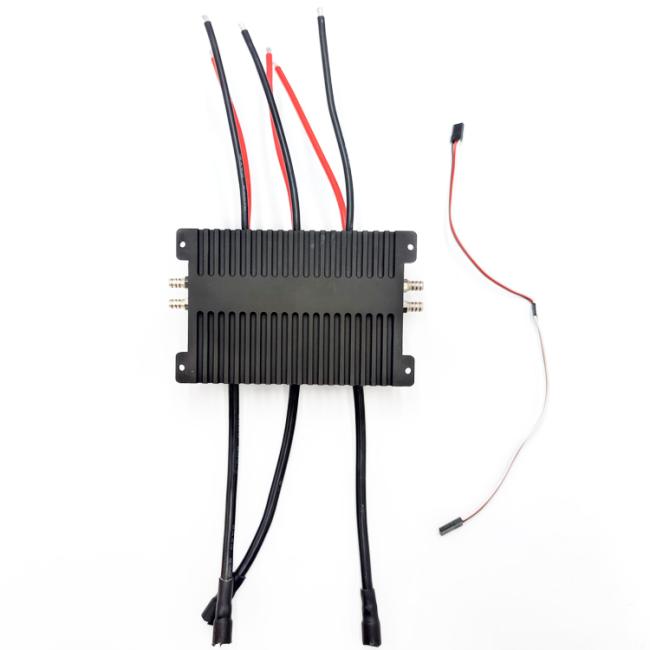

16S 75V 300A VESC Controller Waterproof Watercooled for Electric Motorcycle Efoil Bldc Motor
VESC 75V 300A In CNC T6 Silicone Sealed Aluminum Box - The most Powerful Vedder Electronic Speed Controller ever
Basic specification
| Model | 75V 300A ESC | Voltage | 14V - 75V (Safe for 3S to 16S LiPo). |
| Current | Continuous 200A, Burst 350A | Size | 75mm*70mm*19mm |
| Supported sensors | ABI, HALL, AS5047 | Weight | 500g |
Rating
· Voltage: 14V – 75V (Safe for 3S to 16S LiPo).
Voltage spikes may not exceed 75V!
· Current: Continuous 300-350A, Burst 450A. Values depend on the mounting, ambient temperature and air/water circulation around the device!
· 5V and 12V 1A output for external electronics
· 3.3V 0,5A output for external electronics
· Modes: DC, BLDC, FOC (sinusoidal)
· Supported sensors: ABI, HALL, AS5047
· up to 150K ERPM drivable
e
Features
· Accurate current and voltage measurement on all motor phases (3x phase shunts)
· Regenerative braking
· Sensored or sensorless operation + hybrid mode
· Configurable RPM-, current-, voltage- and power limits
· Input source: PPM, Analog, NRF Nyko Kama Nunchuck
· Communication ports: USB, CAN, UART
· Throttle curve and ramping for all input sources
· Seamless 4-quadrant operation
· Motor revolution, amp hour, watt hour counting
· Real time data analysis and read out via communication ports
· Adjustable protection against:
- Low input voltage
- High input voltage
- High motor current
- High input current
- High regenerative braking current (separate limits for the motor and the input)
- High RPM (separate limits for each direction).
- Over tempertaure (MOSFET and motor)
Company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
models, BLDC brushless motors, rc tools and accessories.
About our rc car department, We have a design team for 8 people
with many years’ RC experience, the driver who gets awards in the
national championship and merit awards in the domestic and inte-
rnational opening tournament joining us makes our products more
professional, market oriented and diverse. Now our company has
released 1/8th SC truckand buggy ,1-10 scale competition On road
kit and RTR on road car to the market.
About our brushless motor department, our technician, with 12 years’ motor design experiece, designs various size motors for rc bobby
plane, multicopter, such as 28, 35, 42, 50, 63 series.
And for other industrial,such as electric skateboard, electric bike, electric paramotor,paraglider,drone, electric surfboard,electric car,boat etc. We have motor 8085, 80100, 12090, 120100, 154120,23850,238100,202150,240110,240150 ect.
We can make sensored motors, watercooling system for you .
Factory Certification:
RFQ:
1) What is the quality Guarantee for your Motor and esc
Answer: All the motor will be 180days quality Guarantee for our products. If we indentify the quality issues, we will send replacement immediately.
2) How long the delievery date
Normally the goods will shipped 2-3days after payment. If custom motor, the delivery date will be 25-30days for change design. If just kv changes, the delievery date is same as regular items.
3) Why choose freerchobby
As we are the real manufacturer in the market. We have custom many brands motor for diy market or completed board projects.
