1810 Chesterton Mechanical Seal Heavy Duty AXIUS Modular Cartridge Mechanical Seal
- Mechanical Seals
- Cartridge Seals

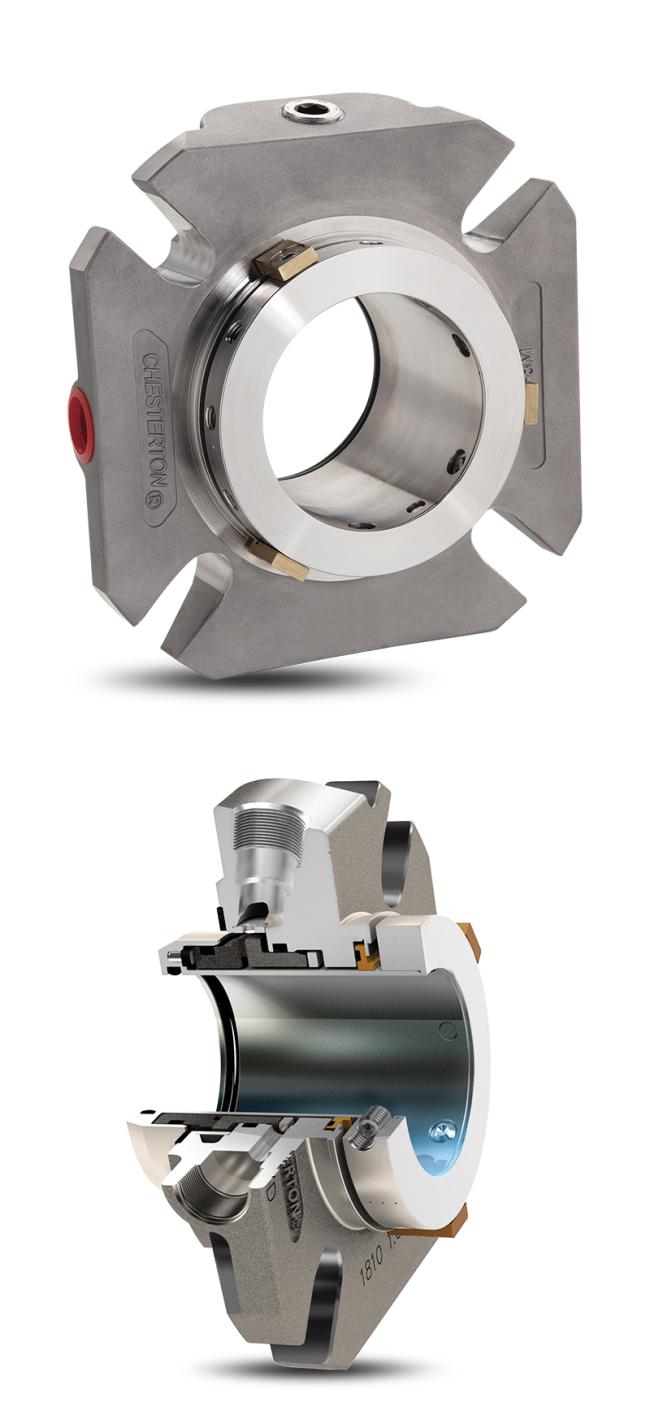

Heavy-Duty Modular Single Cartridge Seal
Built on Chesterton’s AXIUS™ modular platform for simple configuration and installation plant-wide.
The 1810 Single Cartridge Seal offers you the ultimate in seal quality, flexibility, and convenience. Leveraging Chesterton’s proprietary AXIUS modular platform, the 1810 can be configured with several different face profiles and auxiliary components which allows seal performance to be tailored to a wide range of process conditions. A plant-wide sealing solution, the 1810 is effective for both simple and highly demanding applications. It offers selectable features around a common gland housing. This flexibility allows for the creation of the best sealing parameters for your equipment and application needs to maximize single seal reliability.
- Simplifies configuration and maximizes seal performance with the AXIUS™ modular platform
- Maintains reliability through-out temperature cycling and stop/start processes with monolithic seal faces
- Increases face life and reduces contact stress with cushioned drive pins
| Size Range | 25 mm to 200 mm (1.000 inch to 8.000 inch) |
|---|---|
| Standards and Approvals | ISO-3069C, ASME B73.1, ASME B73.2, ACS, WRAS, NSF61 |
| Variants | 1810H - Hydropad Faces 1810SL - Line-Line Slurry Faces 1810PR - Pumping Ring 1810OS - Oversized seal chambers INJ - Multiport Injector Ring QDB - Quench & Drain Bushing |
| Faces | CB, TC, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metals | EN 1.4401 (316SS), Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
| Temperature | -55 to 300 °C (-67 to 570 °F) |
|---|---|
| Speed | 25 m/s ( 5000 fpm ) |
| Pressure |
711 mm (28") Hg Vacuum – 40 bar g (600 psig) |
| Notes |
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL. |
