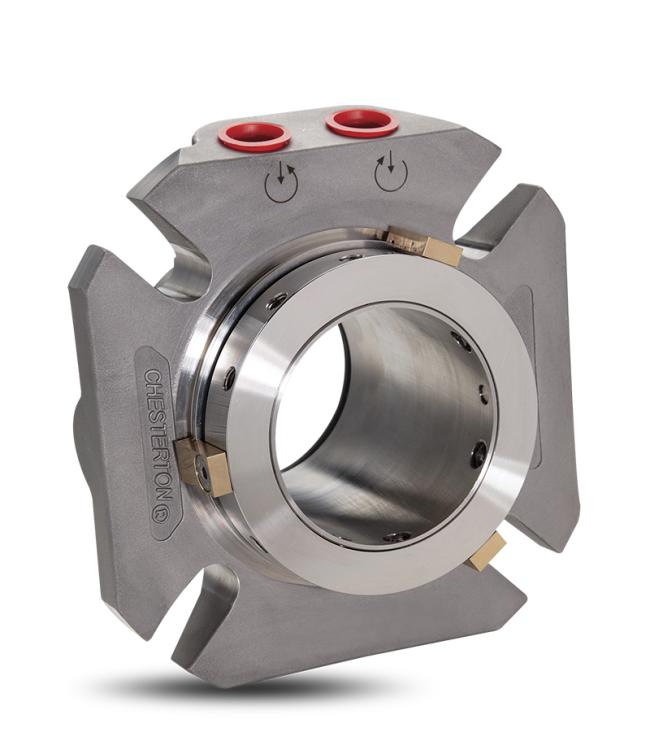

Chesterton 2810 Heavy-Duty AXIUS Modular Double Cartridge Mechanical Seal
- Mechanical Seals
- Cartridge Seals
Heavy-Duty Modular Double Cartridge Seal
Built on Chesterton’s AXIUS™ modular platform for simple configuration and installation plant-wide.

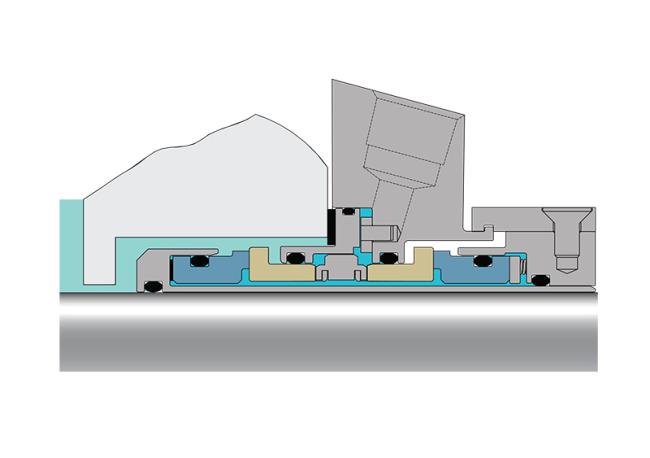

The 2810 Double Cartridge Seal offers you the ultimate in seal quality, flexibility, and emissions control. Leveraging Chesterton’s proprietary AXIUS modular platform, the 2810 can be configured with several different face profiles and auxiliary components within a common gland housing. This flexibility allows seal performance to be tailored to a wide range of process conditions. A plant-wide sealing solution, the 2810 uses a geometric double-balanced seal face design. An optimized barrier/buffer channel for enhanced fluid flow provides greater seal reliability even at elevated temperatures.
- Simplifies configuration and maximizes seal performance with the AXIUS™ modular platform
- Maintains reliability through-out temperature cycling and stop/start processes with monolithic seal faces
- Increases face life and reduces contact stress with cushioned drive pins
- Accommodates axial, radial, and angular shaft movement through unified seal face alignment
| Size Range | 25 mm to 200 mm (1.000 inch to 8.000 inch) |
|---|---|
| Standards and Approvals | ISO-3069-S, ISO-3069C, ASME B73.1, ASME B73.2, ATEX |
| Variants | 2810OS - Oversized Seal Chambers |
| Faces | CB, TC, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metals | EN 1.4401 (316SS), Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
| Temperature | -55 to 300 °C (-67 to 570 °F) |
|---|---|
| Speed | 25 m/s ( 5000 fpm ) |
| Pressure |
711 mm (28") Hg Vacuum – 40 bar g (600 psig) |
| Notes | Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL. |
