316L SS Mechanical Seal Aesseal 15m/S BSAI BSAIG Bellows Mechanical Seal
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 working days
Brand:
BESTSEAL
Product Description

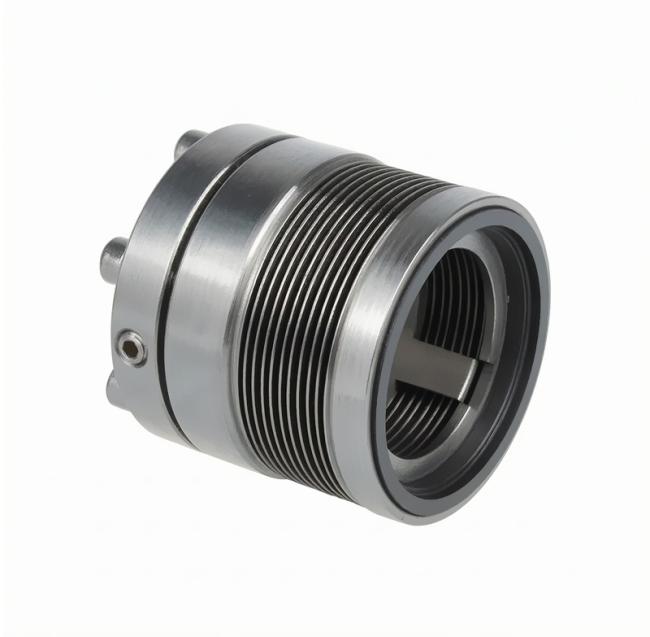

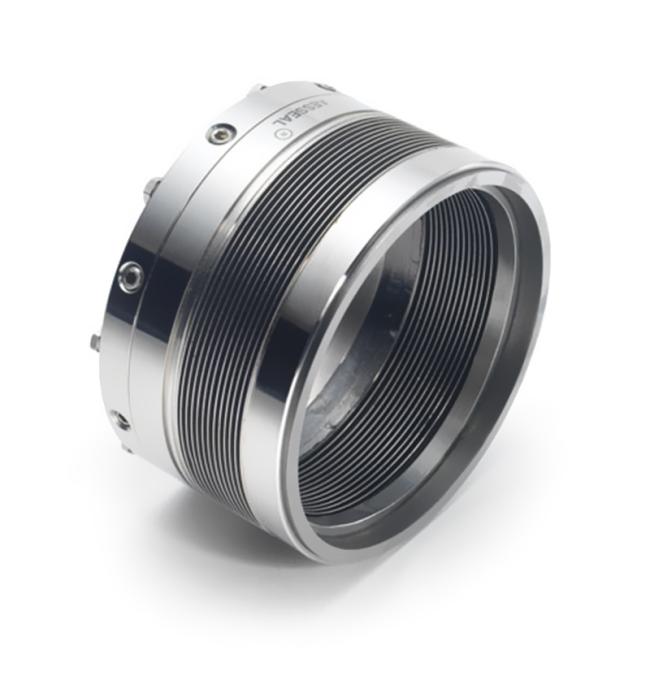

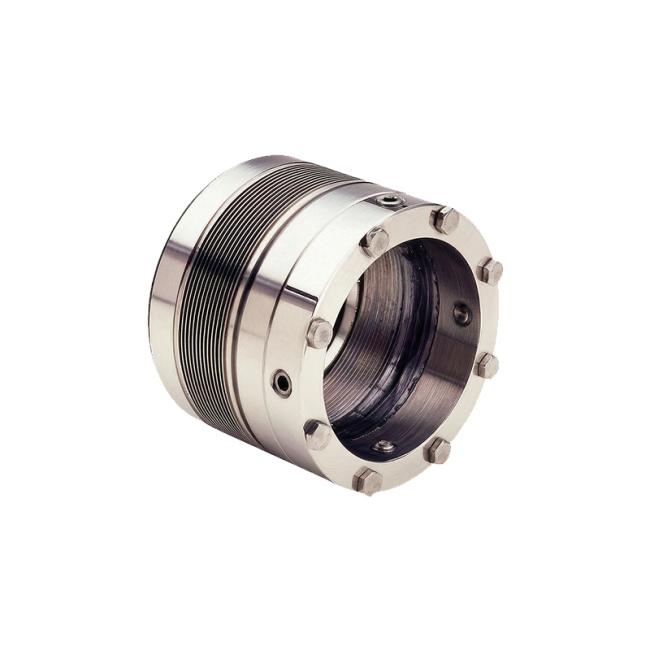

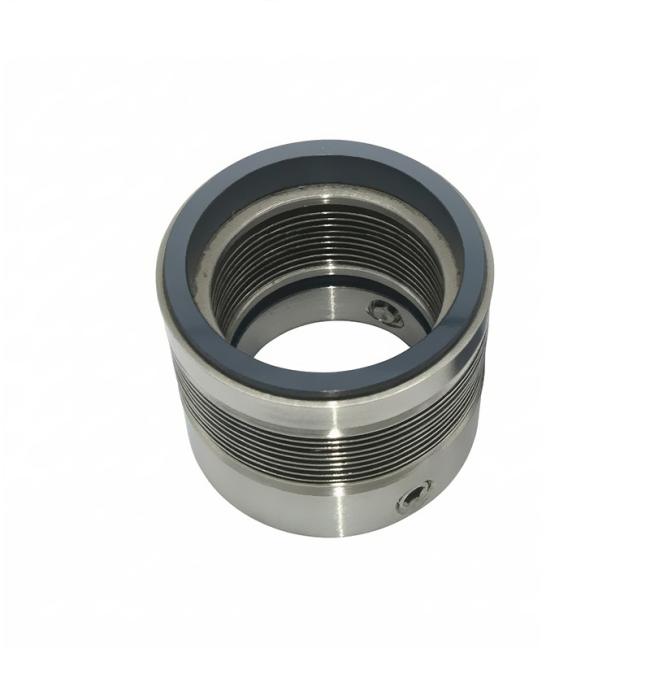

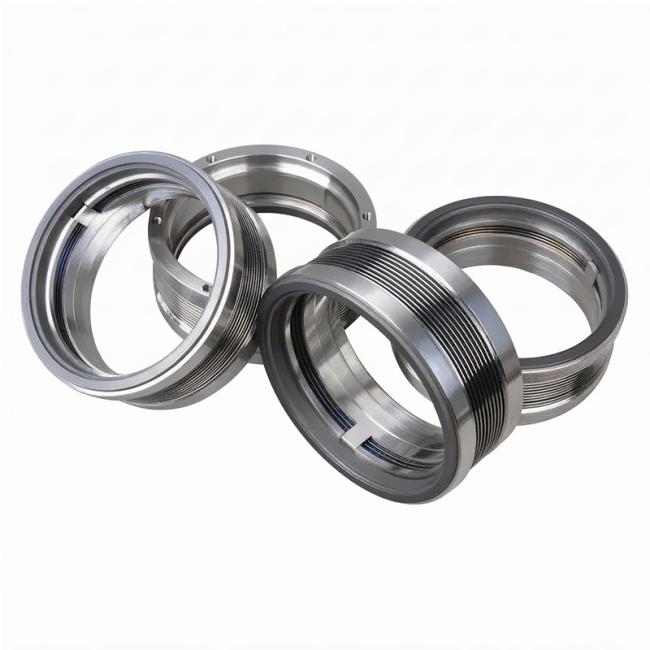

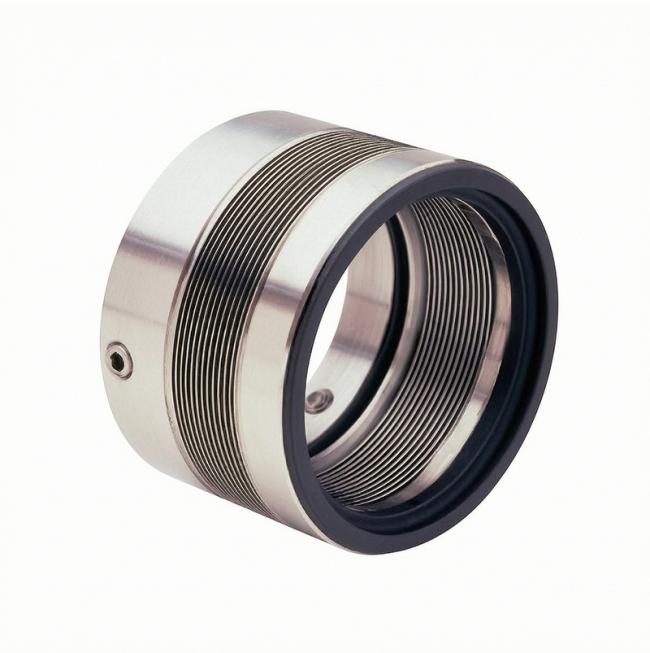

AESSEAL BSAI BSAIG Metal Bellows Component Seals Internal Cartridge Mechanical Seal
Cartridge Mechanical Seals
Bellows Seals

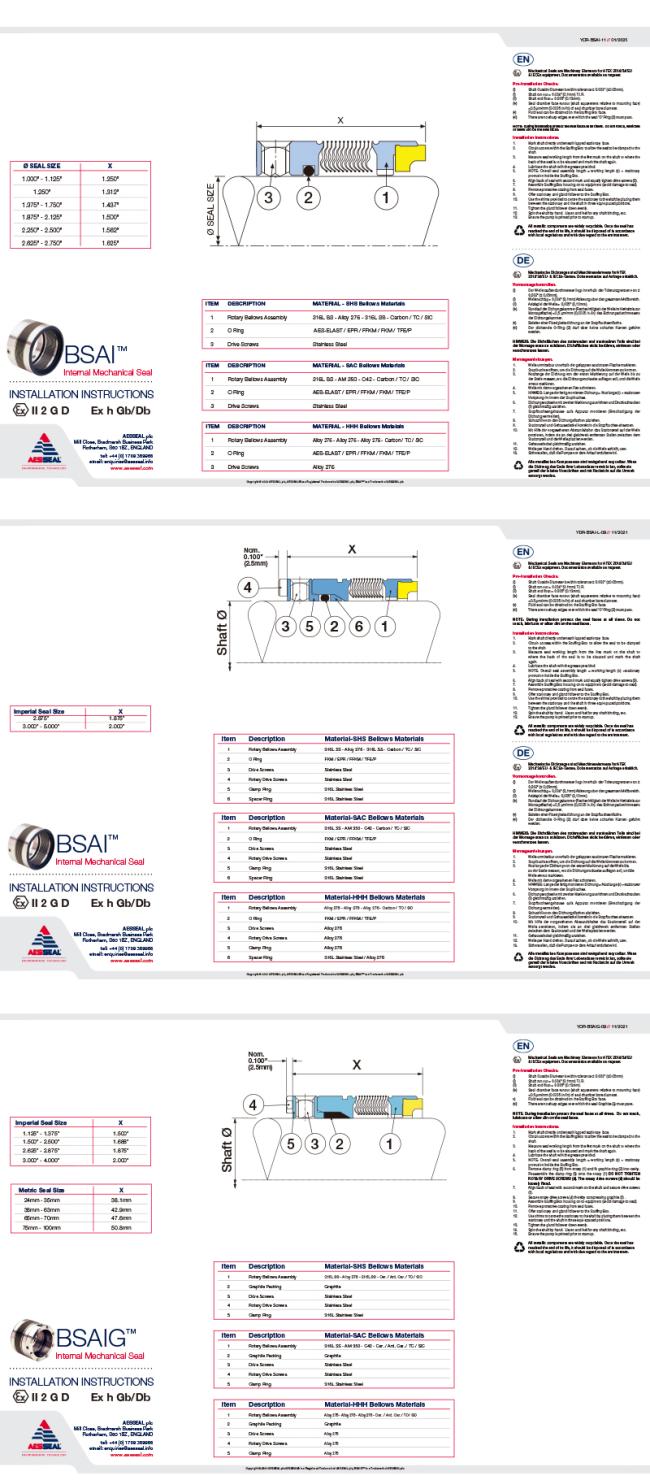

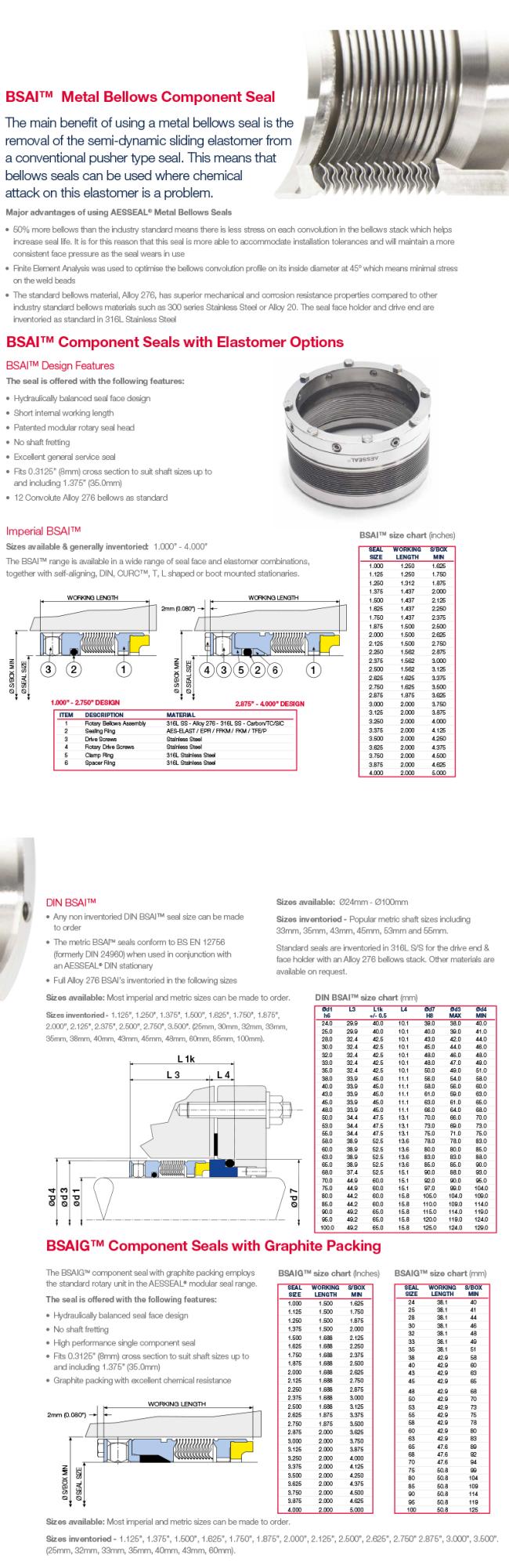

BSAI - BSAIG

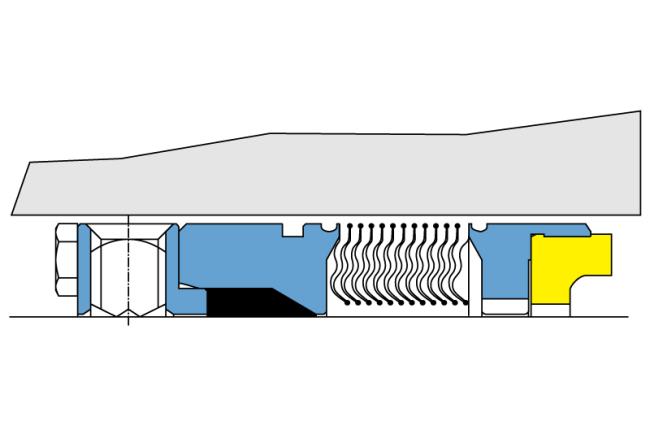

Bellows Single Cartridge Seal
The BQFD™ (Bellows Quench Flush Drain) range of single cartridge mechanical seals uses many of the same modular parts as a BSIV™ but has the added features of Quench and Drain, making it usable in more diverse applications.
Features
- Cartridge design for reliable installation
- Hydraulically balanced seal face loading, which maximizes seal life and allows for vacuum service capability
- The BQFD™ range has quench flush and drain ports with optional restriction bush (BQFD-R)
- BQFD™ sizes available from 1.000" to 5.000" (24mm - 125mm)
Performance Capabilities
| Temperature | -20℃ to 200℃, dependent on the elastomer |
|---|---|
| Pressure | Up to 2.5MPA |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 24mm-100mm |
| Brand | BESTSEAL |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Elastomer | NBR, EPDM, FKM etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
