BSIV BSIVN AESSEAL Mechanical Seal Single Metal Bellow Zinc Alloy
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 working days
Brand:
BESTSEAL
Product Description

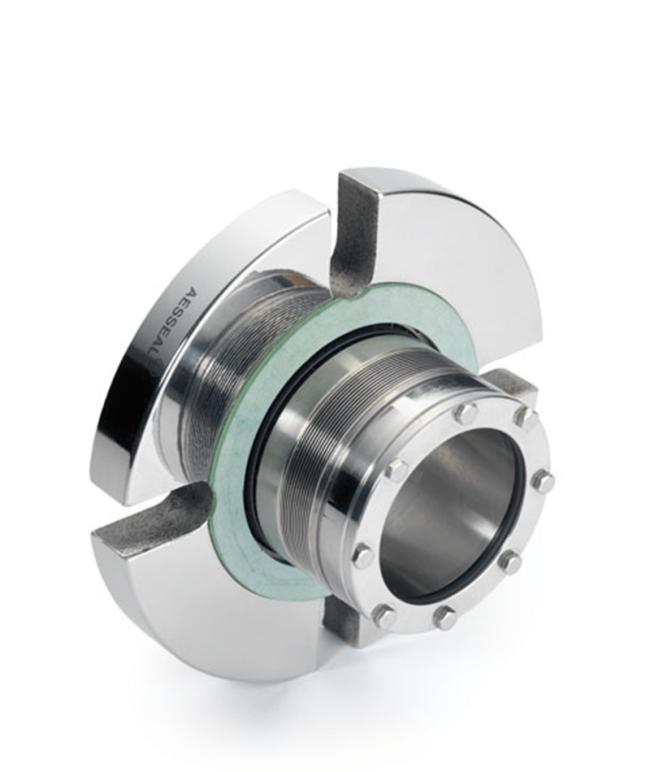

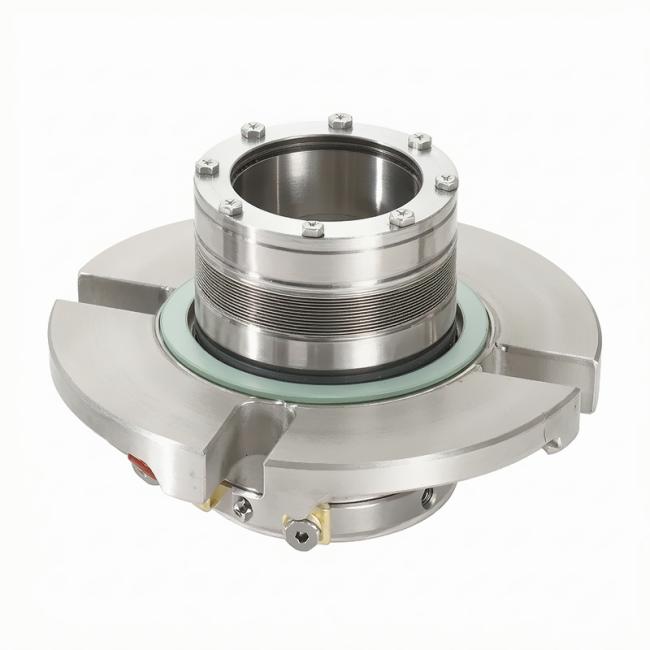

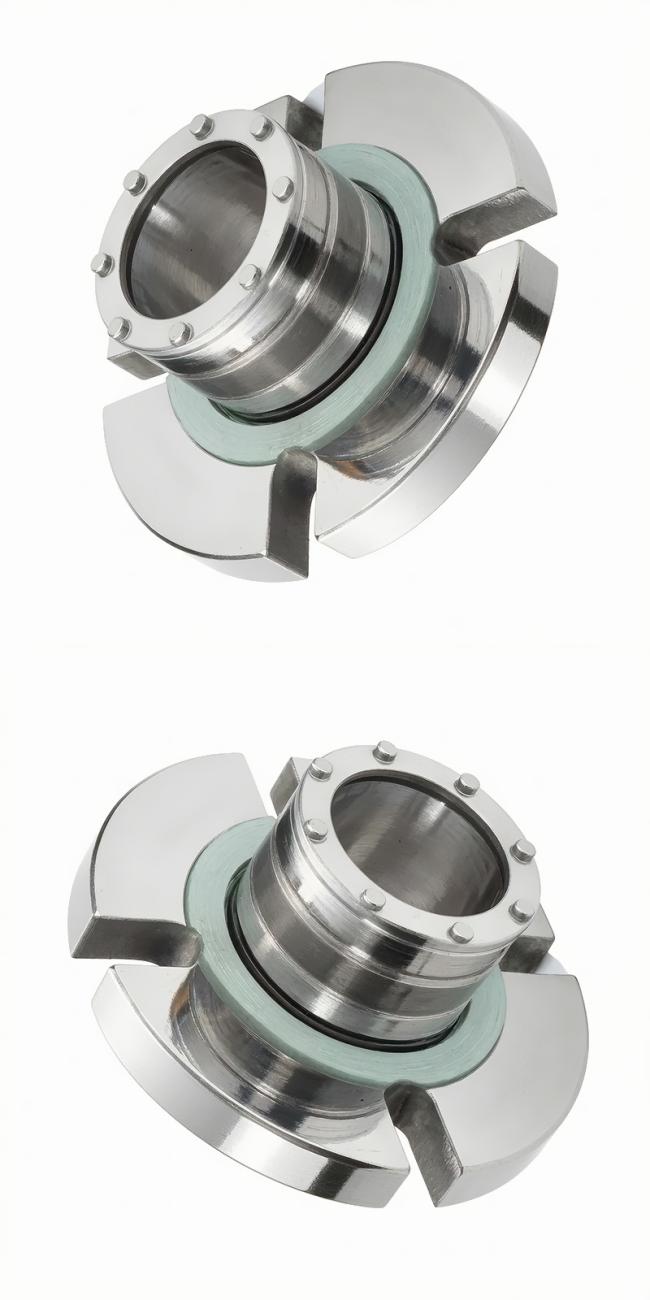

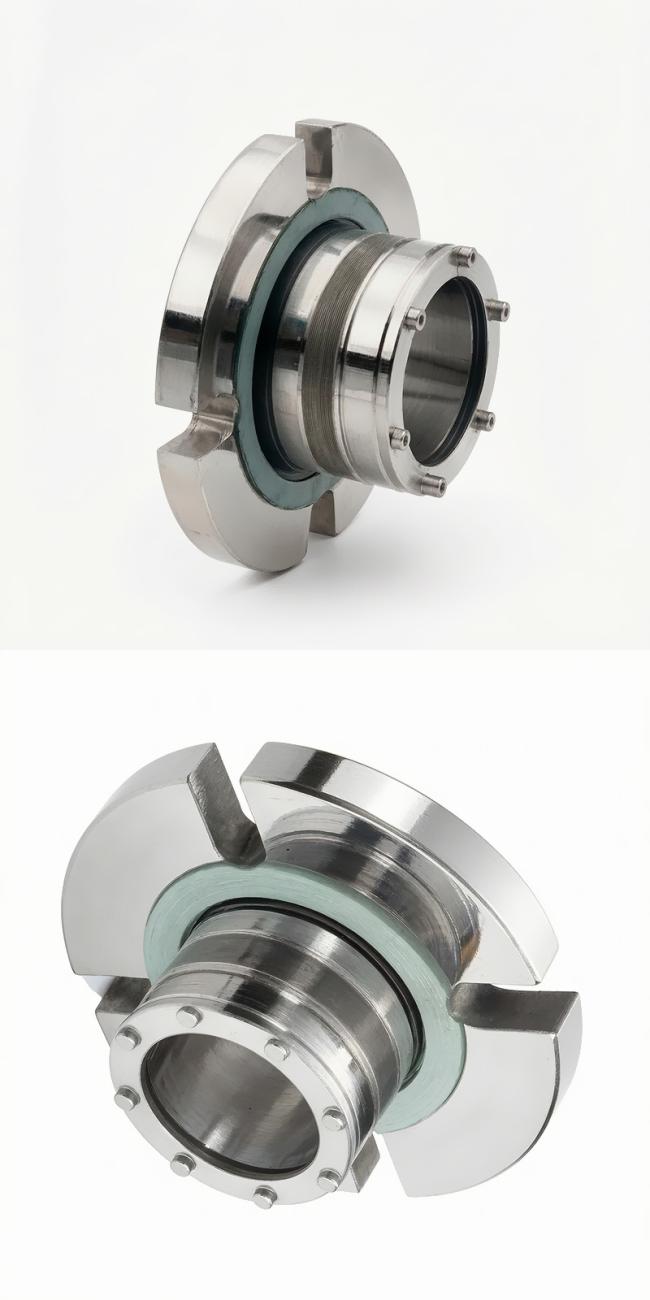

AESSEAL BSIV BSIV-N Single Bellows Cartridge Mechanical Seals for Pumps
Bellows Seals
BSIV
Single Bellows
The BSIV™ range of single cartridge mechanical seals has been designed as a value-for-money, high-performance sealing solution for general applications. Inventoried in SHS bellows materials. Other material combinations are available, including a full, solid alloy 276 bellows and gland arrangement in all ANSI sizes.
Features
- Cartridge design for reliable installation
- Hydraulically balanced for reduced seal face loading which maximizes seal life and allows for vacuum service capability
- Sizes available from 1.000" to 3.500" (24mm - 85mm) in standard and ANSI plus gland formats
Performance Capabilities
| Temperature | -20℃ to 200℃, dependent on the elastomer |
|---|---|
| Pressure | Up to 2.5MPA |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Brand | BESTSEAL |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Elastomer | NBR, EPDM, FKM etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
