DISP Aes Seal Double Stationary Alloy 276 Cartridge Ptfe Mechanical Seal
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 working days
Brand:
BESTSEAL
Product Description

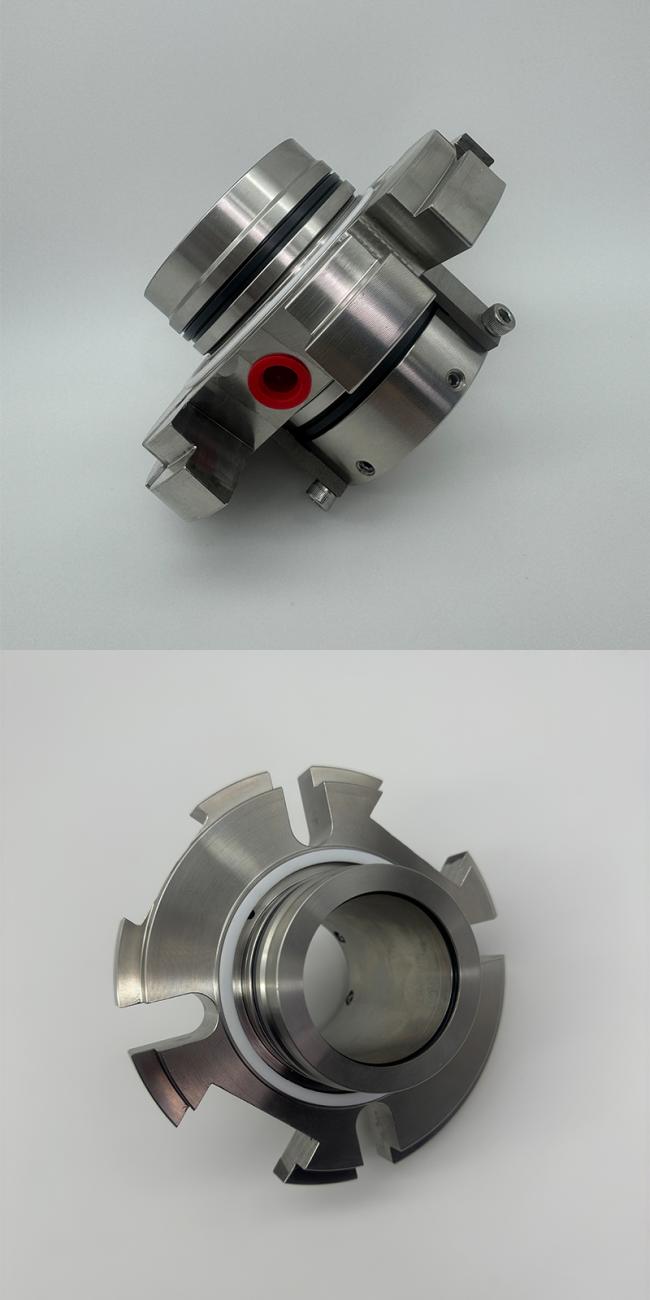

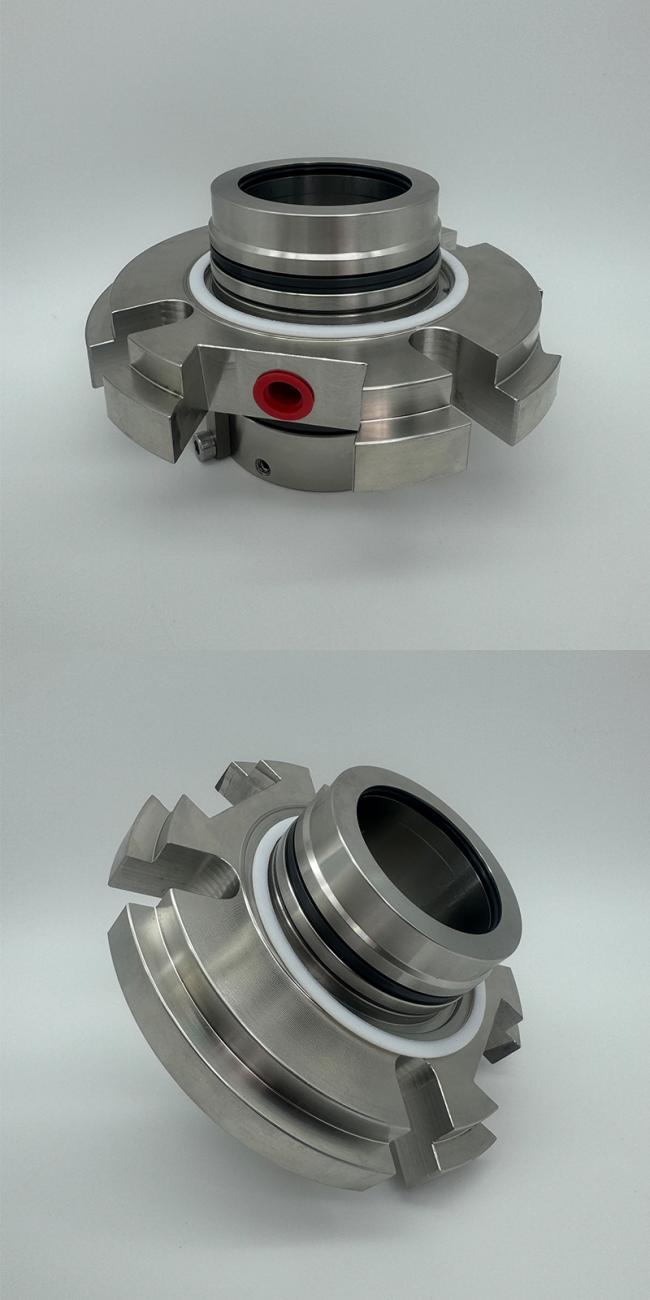

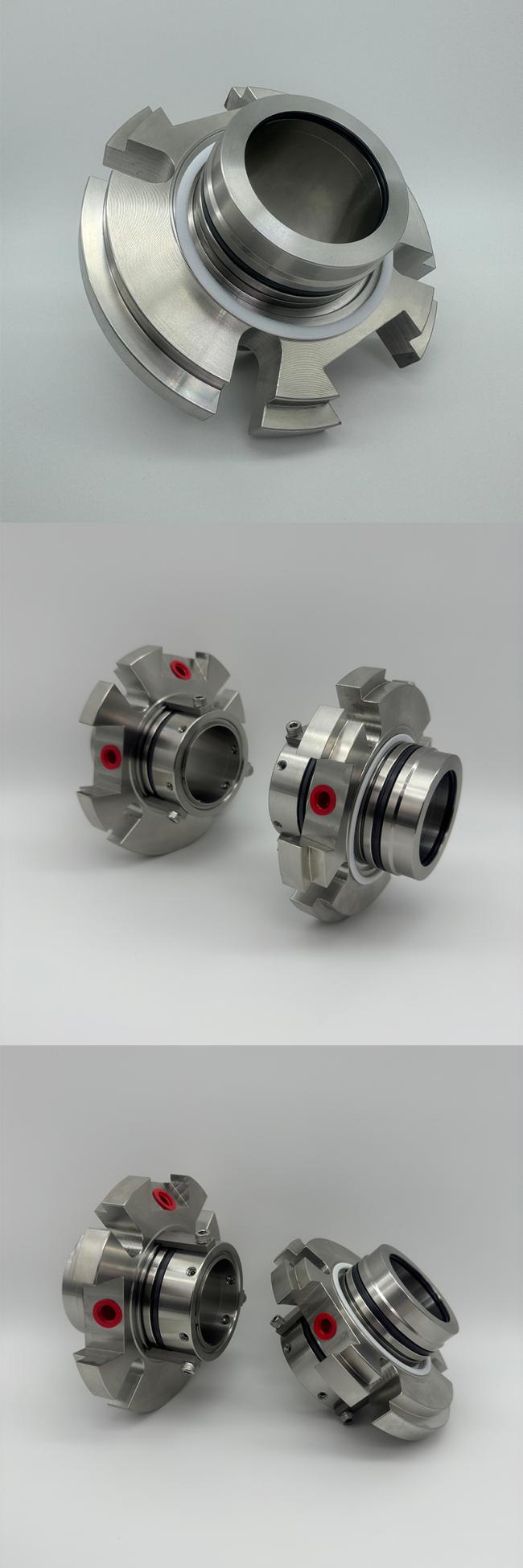

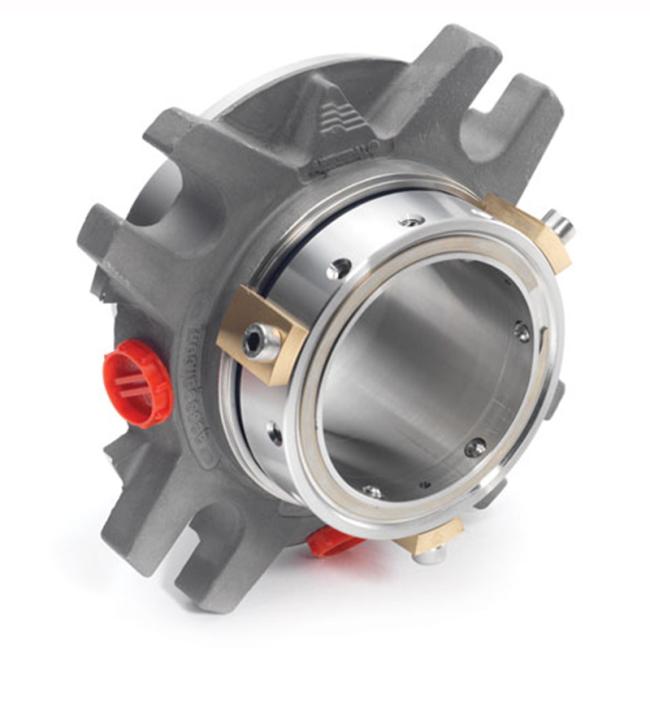

AESSEAL DISP Double Stationary Seal Cartridge Mechanical Seals for Pumps
Cartridge Mechanical Seals
Double Seals
DISP

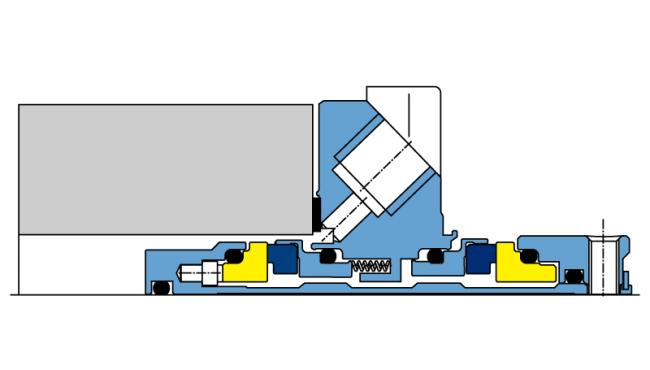

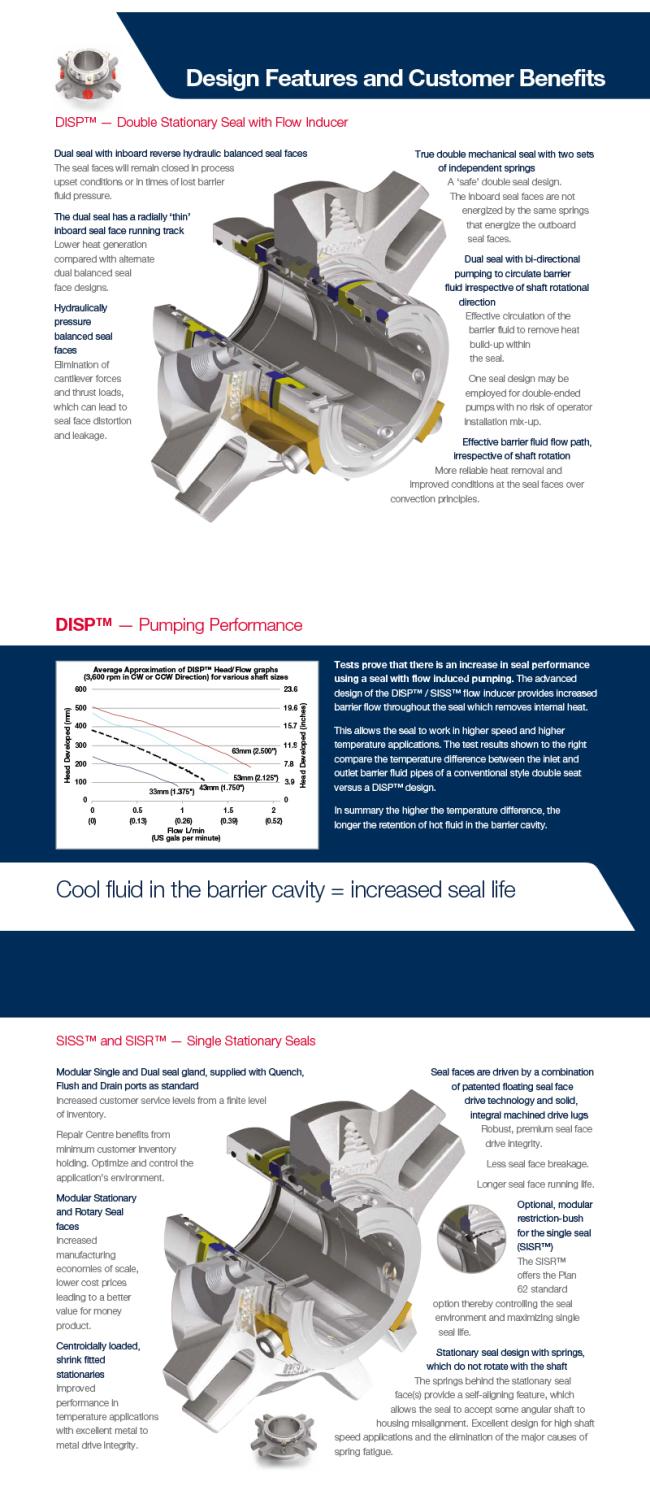

Double Stationary Seal with Pumping Scroll
Features
- Efficient bi-directional pumping circulates barrier fluid for effective seal face cooling and extended seal life.
- High-integrity drive design features improve reliability and seal life
- Thin radial faces reduce heat generation compared to alternative dual balanced designs
- Supplied with quench, flush and drain ports

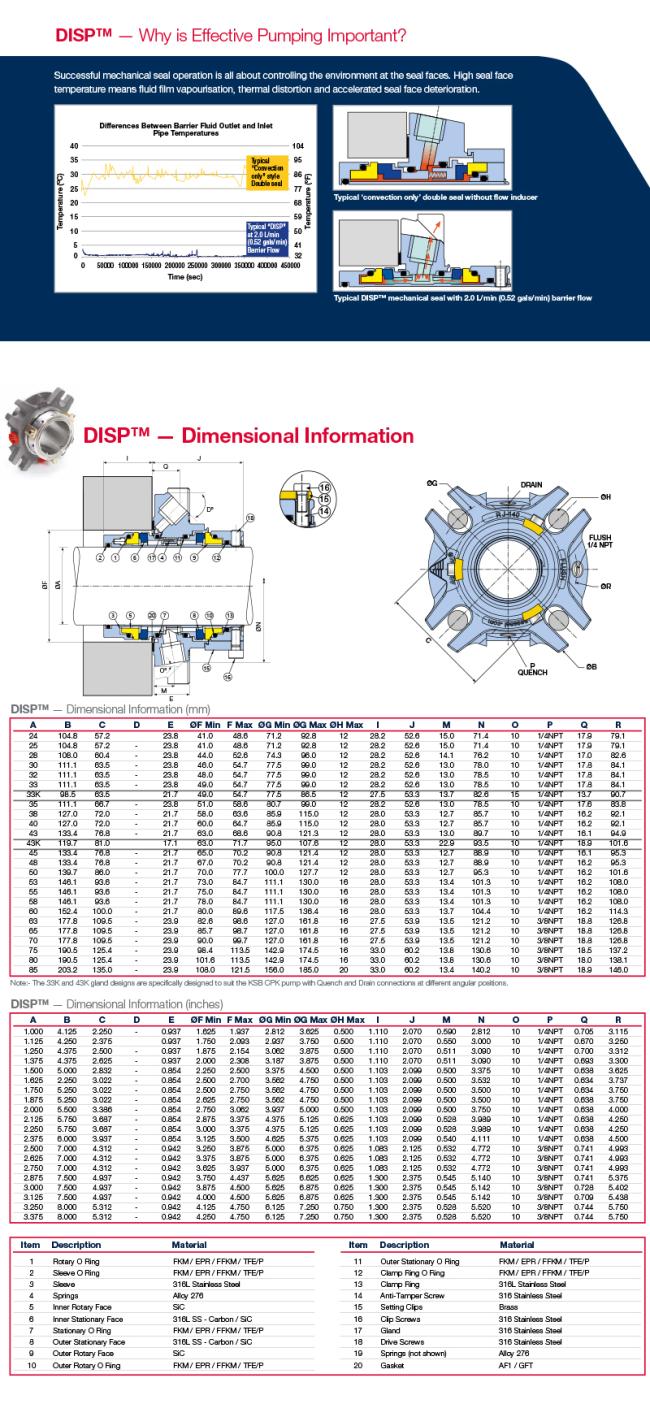

- Sizes available from 1.000" to 3.375" (24mm - 85mm) in standard and ANSI plus gland formats

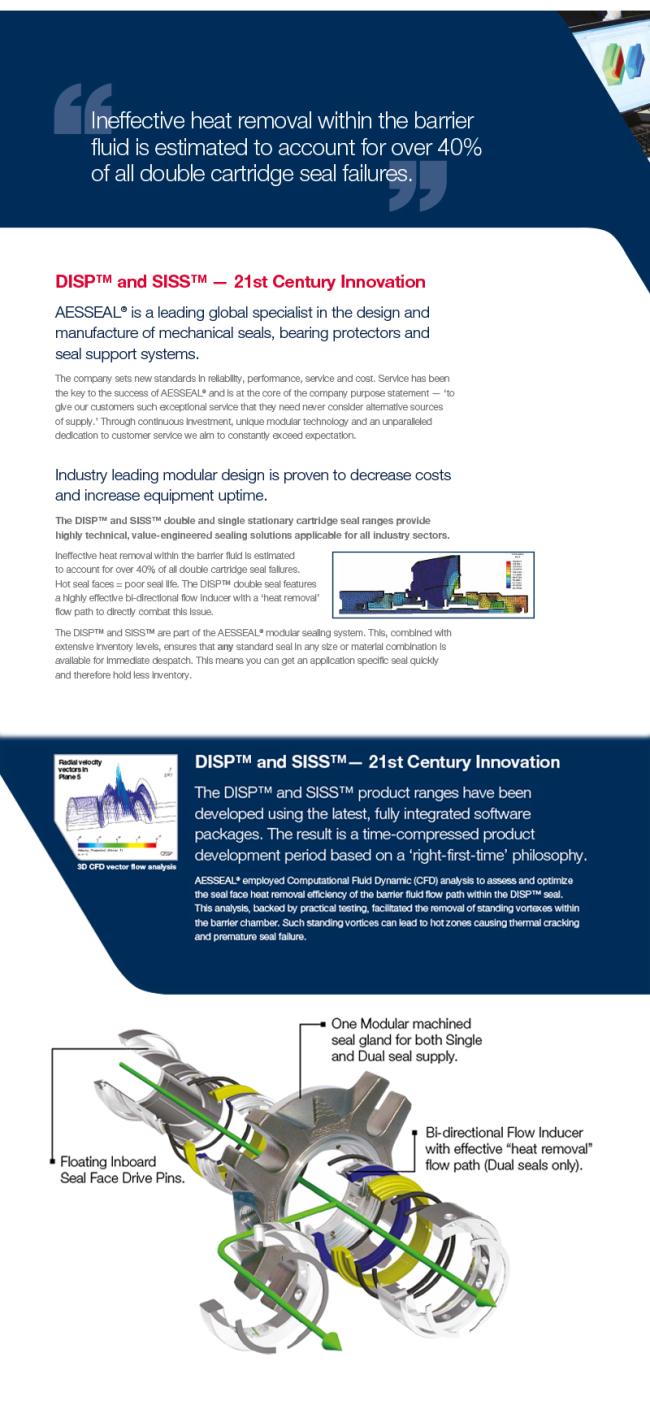

Hot seal faces = poor seal life. The DISP™ double seal features a highly effective bi-directional flow inducer with a ‘heat removal’ flow path to directly combat this issue.
Performance Capabilities
| Temperature | -20℃ to 200℃, dependent on the elastomer |
|---|---|
| Pressure | Up to 2.5MPA |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Brand | BESTSEAL |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Elastomer | NBR, EPDM, FKM etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
