Heavy Duty Slurry Pump Mechanical Seal SS316 AESSEAL TPDS Cartridge Type Seal
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 working days
Brand:
BESTSEAL
Product Description

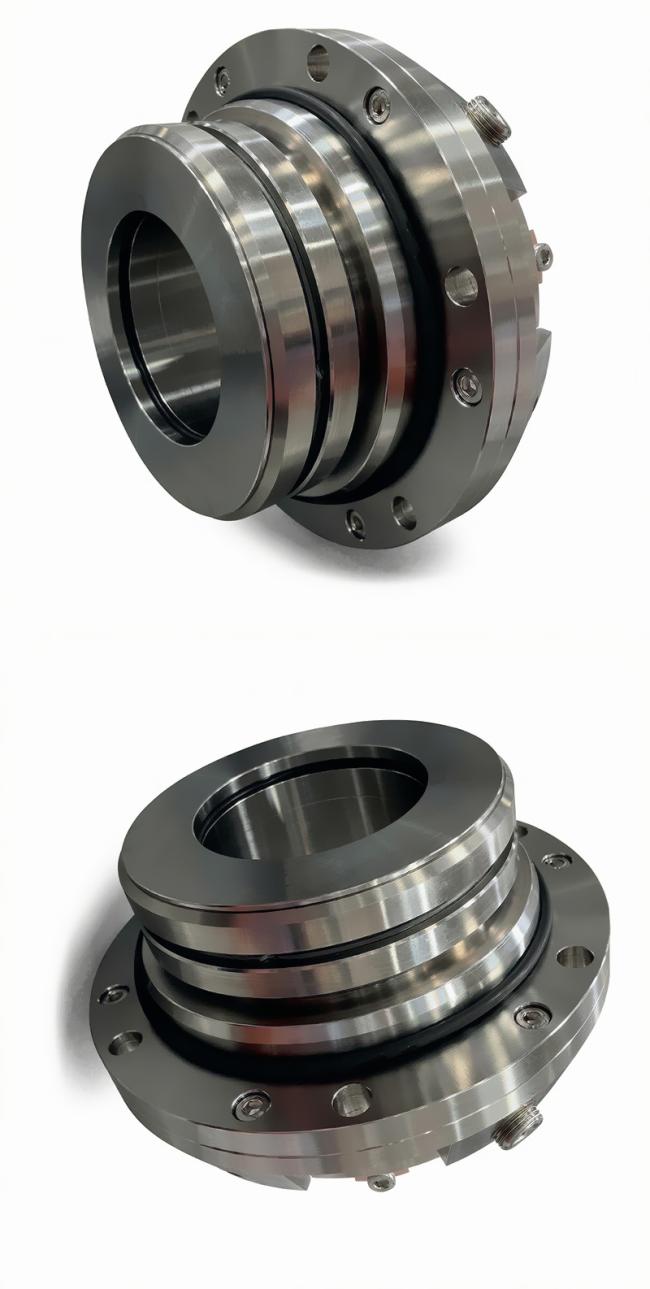

AESSEAL TPDS Double Heavy Duty Slurry Seal Cartridge Mechanical Seals for Tailings Pump
Cartridge Mechanical Seals
Double Seals
TPDS
Double Heavy Duty Slurry Seal

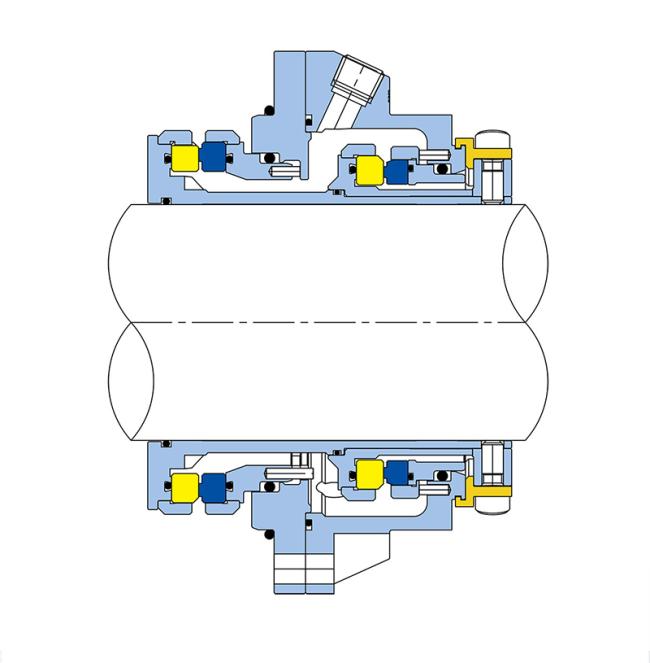

The TPDS™ double heavy duty slurry seal is designed for use on difficult applications including slurry pumping, tailings, and other heavy-duty slurry seal applications.
The seal design uses the latest multi-spring double stationary pusher seal technology. This enhances durability and performance, thereby helping to increase seal life.
Key Features / Benefits
- Double heavy-duty stationary slurry seal for arduous duties
- Solid drive mechanism and thicker face sections to handle high pressures and temperatures
- Large BI and BO ports (typically 1/2” or 3/4” NPT) to enhance heat removal
- Hydraulically balanced seal faces (inboard & outboard)
- Bi-directional rotation for versatile application
Performance Capabilities
| Temperature | -20℃ to 200℃, dependent on the elastomer |
|---|---|
| Pressure | Up to 2.5MPA |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Brand | BESTSEAL |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Elastomer | NBR, EPDM, FKM etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
