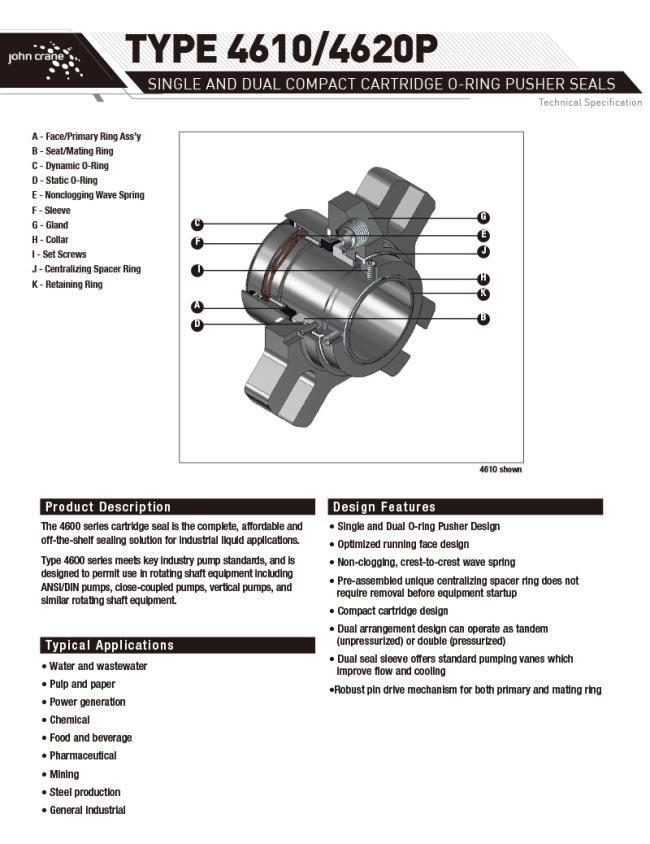

4610 John Crane Mechanical Seal 316SS Single Cartridge For Pumps
The Type 4610 single cartridge seal, available off-the-shelf the world over, combines affordability with fluid-sealing dependability.
It's the complete solution for sealing satisfaction in general industrial applications.
It meets key industry pump standards and is designed to permit use in rotating shaft equipment, including ANSI/DIN pumps, close-coupled pumps, vertical pumps and similar rotating shaft equipment.
Fully compliant with NSF-61 standards for clean drinking water services.
- Running face design optimized using proprietary computer simulation program technology.
- Premium-grade carbon and silicon carbide are standard.
- Robust pin drive provides positive torque transmission.
- Hydraulically balanced for optimal performance.
- Non-clogging, crest-to-crest wave spring
- Less prone to corrosion problems
- Uniform face loading
- Unique centralizing ring eliminates setting clips and prevents component damage from over-compression during seal fitting.

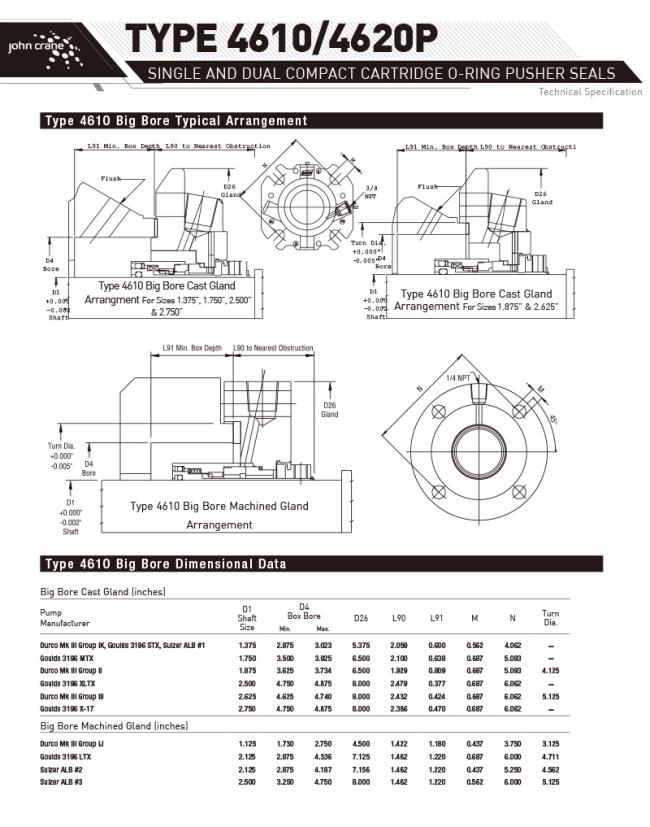

- Compact cartridge design with precise investment cast gland plate design.
- Four-bolt gland accurately sets the seal axially and radially.
- Large flush connection drilling ensures optimum flow and allows seal chamber venting for horizontal and vertical applications.
- Factory-preset and pressure-tested assembly.
Performance Capabilities
| Temperature Limits | 400°F/205°C |
|---|---|
| Speed Limits | 3600 rpm |
| Pressure Limit | 220 psi(g)/15 bar(g) |
| End play/axial float allowance | ±0.1mm |
| Brand | BESTSEAL |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Elastomer | NBR, EPDM, FKM etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
| Recommended Applications |
Process pumps
Mixer and agitators
Other rotating equipment
|
"15 years in mechanical seals.
we quote in 3 hours, deliver production drawing in 24 hours, and ship in 15–20 working days.
From 1 piece. Real-time tracking. Direct alternative to John Crane Type 4610."
