5610Q 5610L Carbon Mechanical Seal SS316 O Ring Single Spring Seal

As the first truly universal cartridge seal, the modular family concept of John Crane's Universal Cartridge Seal series will change your approach to sealing. Since the Type 5600 Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.

The Type 5610 seal is a single cartridge o-ring pusher seal.

The Type 5610Q seal provides a quench gland with carbon ring throttle bushing.

The Type 5610L seal provides a quench gland with lip seal.

• Incorporates an elastomer O-ring as the secondary sealing member.
• A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads.
• Reversible seal head.
• Fits ANSI, ISO and DIN seal chambers.
• Optimized primary ring design for greater reliability.
• Non-clogging wave spring outside the product.
• 5610Q designs available conforming to API 682, Category 1.

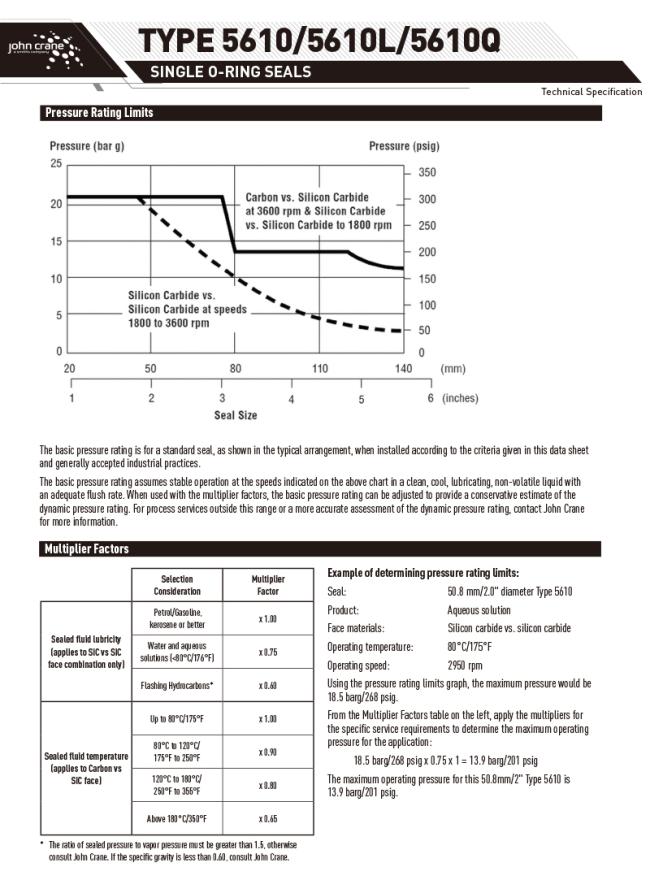

Performance Capabilities

"15 years in mechanical seals.

we quote in 3 hours, deliver production drawing in 24 hours, and ship in 15–20 working days.

From 1 piece. Real-time tracking. Direct alternative to John Crane Type 5610/5610Q/5610L."
