PSS 4 Flowserve Mechanical Seal SS316 Alloy Industrial Mechanical Seals For Pump

Flowserve PSS 4 Split Seals Industrial Process Cartridge Mechanical Seal for Pump and Mixer

• Mechanical Seals
• Pump Seals
• Split Seals

Advanced technology semi-cartridge split seal for pump and mixer applications. The PSS 4 split seal, with intrinsic joint alignment technology, provides the easiest and most successful installation to make reduced equipment downtime and increased reliability routine.

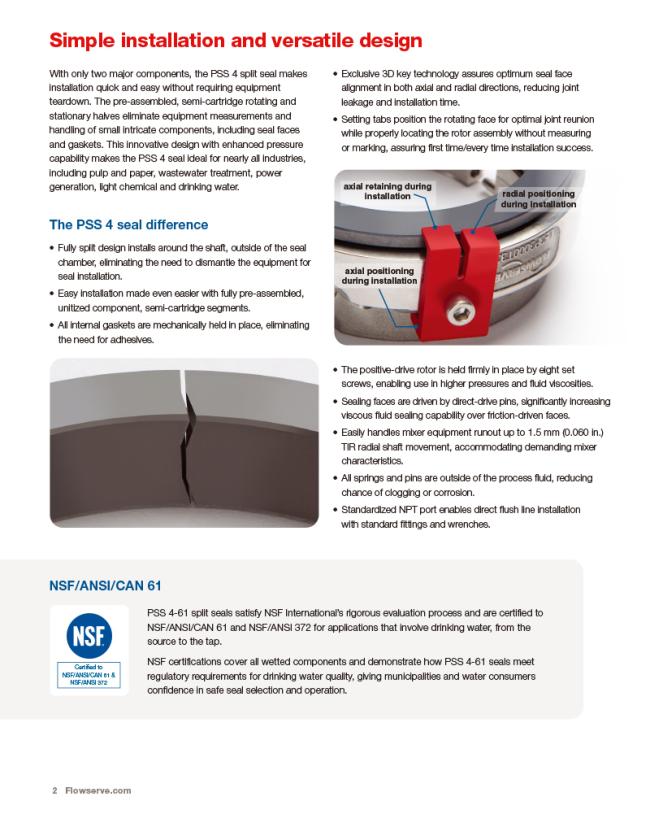

Features and Benefits

• Exclusive 3D Key technology assures optimum face alignment in both axial and radial direction, reducing leakage and installation time.
• Unique setting tabs optimally position the rotating face for installation while eliminating all seal positioning, measuring and marking, further assuring first time/every time installation success.
• Easily handles mixer equipment runout up to1.5 mm (0.060 inch) TIR radial shaft movement, accommodating demanding mixer characteristics.
• Fully split designs installs easily around the shaft, outside of the seal chamber, eliminating the need to dismantle the equipment for seal installation.
• Easy installation made even easier with fully pre-assembled, unitized component, semi-cartridge design.

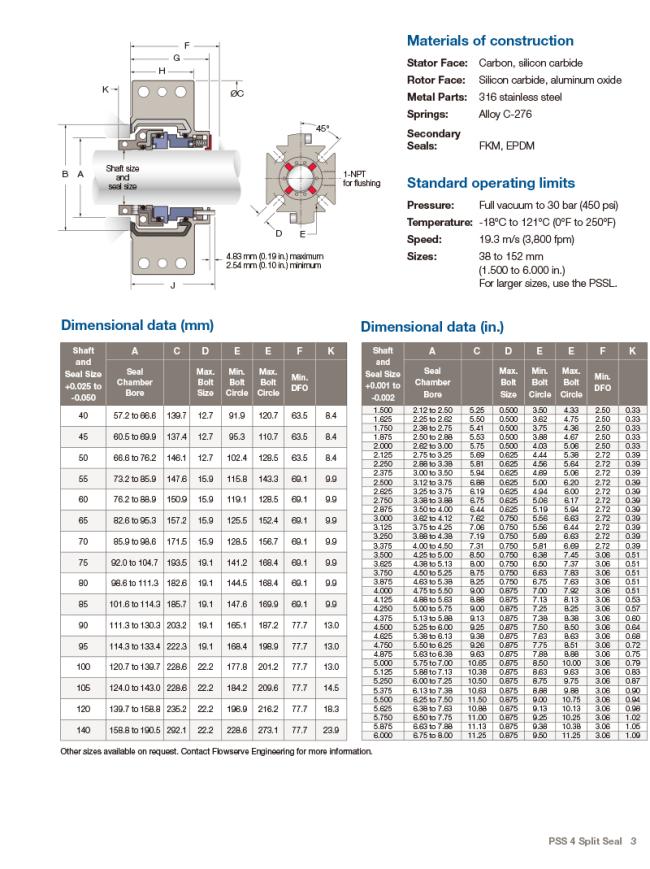

Specifications

• Full vacuum to 30 bar (450 psi), -18° to 121°C (250°F), up to 19.3 m/s (3800 fpm), 38 to 152 mm (1.500 to 6.000 inch)
• Size Range: 1.500" to 6.000

Industries

• Power
• Nuclear
• Conventional Steam
• Combined Cycle
• Concentrated Solar Power (CSP)
• Biomass & MSW
• Geothermal
• Chemicals
• Basic (Organic & Inorganic)
• Specialty (Fine & Consumer)
• Biofuels
• Pharmaceutical
• Mining
• Water
• Water Management
• Wastewater
• Agriculture & Irrigation
• Flood Control System
• Oil & Gas
• Upstream Exploration & Production
• Downstream Processing
• General Industries
• Pulp & Paper
• Steel & Primary Metals
• Food & Beverage
• Corn Wet Milling & Ethanol
