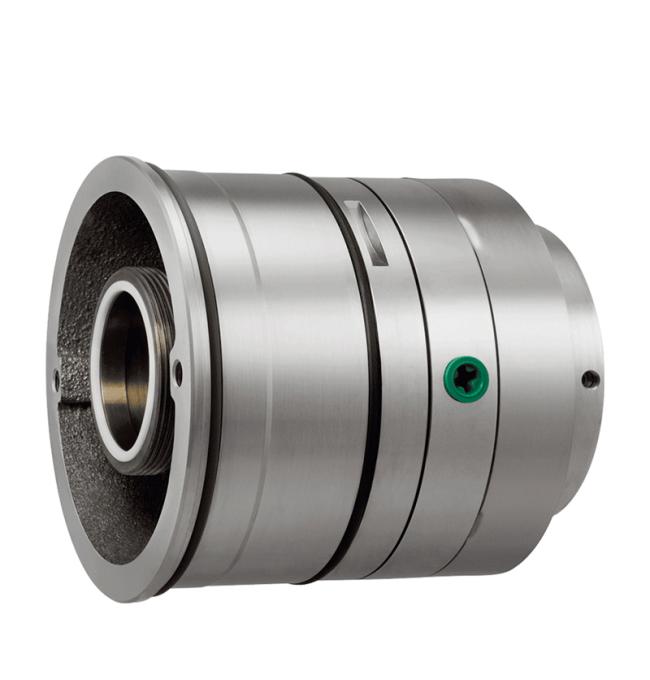

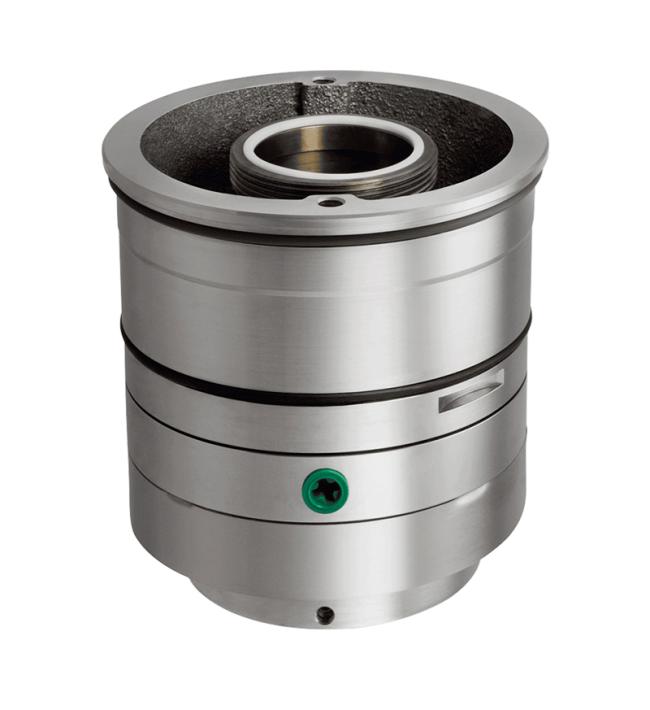

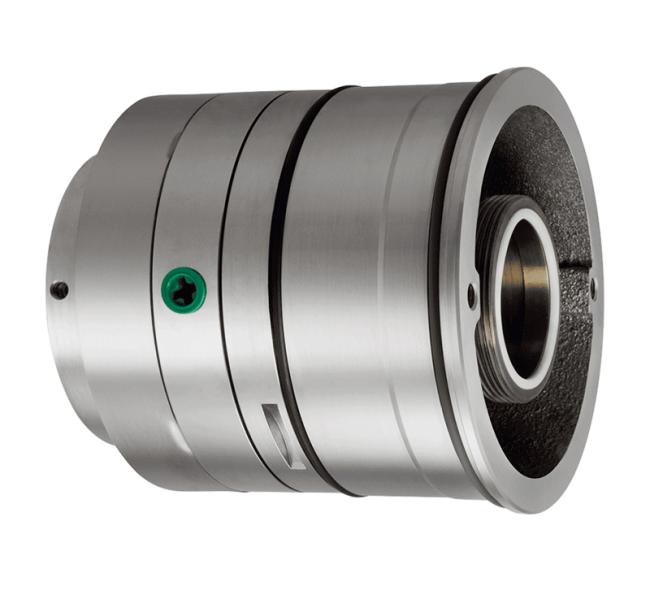

Huhnseal Type BF-ISP Balanced Single Cartridge Mechanical Seal for ABS Scanpump Pumps
Cartridge Mechanical Seal
BF-ISP
Balanced single cartridge seal equipped with flush
Huhnseal BF-ISP is a balanced single cartridge seal equipped with flushing arrangement and two Grafoil rings.
This seals is specially designed for ABS Scanpump pumps.
Features
-
1. Specially designed for ABS Scanpump pumps (Locks in place) and Robust and balanced design
Easy installation reduces risk of human error. No measurements required for installation. Undisturbed operation even with sudden pressure shocks
-
2. Springs are protected from the process media
Prevents clogging of seal
-
3. Axial movement ±3mm
Necessary if shaft has large axial clearance Heat expansion of shaft does not impact on spring load
-
4. Shaft sleeve clamped to recess in shaft, no stop screws
Shaft sleeve clamped to recess in shaft, no stop screws Contributes to safe operation
-
5. Large buffer volume
Provides for excellent cooling
-
6. Special vortex braking geometry
Extends the lifetime of the sea
Performance Capabilities
| Temperature | up to 80 °C without quench |
|---|---|
| Pressure | up to 25 bar |
| Speed | up to 18 m/s |
| End play/axial float allowance | ±0.1mm |
| Brand | BESTSEAL |
| Packing | Individual packing ,1 pc in 1 small box is available as well |
| Application Areas |
Pulp & Paper |
