Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 working days
Brand:
BESTSEAL
Product Description

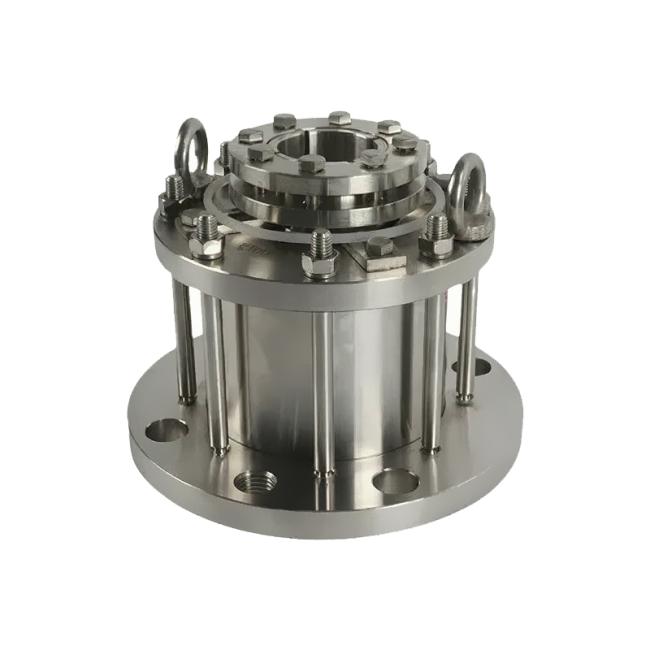

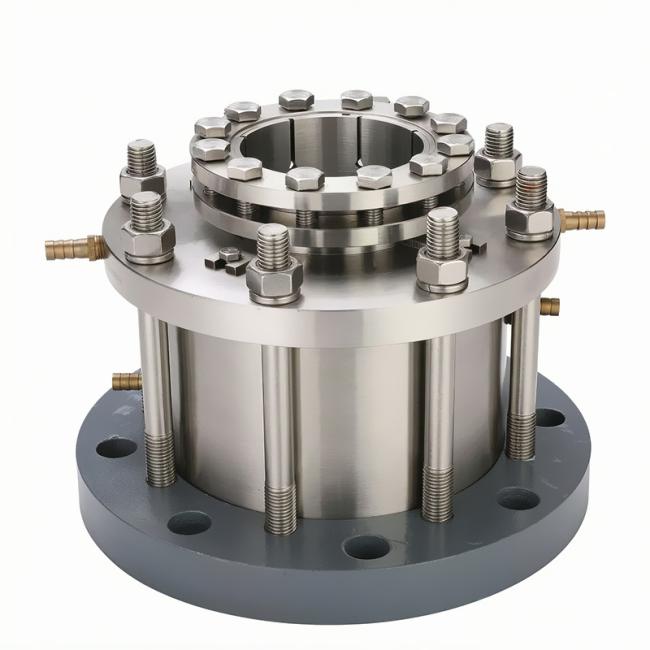

Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Mechanical Seals For Mixers
2009
Basic Features
- Structure: Single End and Double End
- Pressure: Low Pressure Mechanical Seals
- Speed: Low Speed Mechanical Seal
- Temperature: General Temperature Mechanical Seal
- Performance: Corrosion
- Standard: HG21571-95
- Model NO.: 2009
- Balance: Unbalanced and Balanced
- Specification: Inner Diameter: 30 mm to 220 mm
Operation Parameters
- Pressure: - 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
- Temperature: - 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
- Linear Speed: 2 m/s or less
Materials
- Rotary Ring Face: SiC/Carbon
- Stationary Ring Face: TC/SiC
- Elastomers: NBR/Viton/EPDM/PTFE/FFKM
- Springs: SS304/SS316/HC-276
- Metal Parts: SS304/SS316/SS316L
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
BESTSEAL — Your Reliable Partner for Mechanical Seals
| BESTSEAL Advantage: | |
|---|---|
| 15 years | Focused in mechanical seal manufacturing |
| 3 hours | Quotation response only takes 3 hours |
| 1 day | Provide production assembly drawings |
| 1 piece | MOQ, One piece can also be produced |
| 15-20 working days | The production cycle only takes 15-20 working days |
| real-time | Real time synchronization of production progress |
BESTSEAL Reaction Kettle Mechanical Seal
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
