John Crane 587-SP Mechanical Seal for Andritz SP Series Pumps
John Crane 587-SP Mechanical Seal for Andritz SP Series Pumps

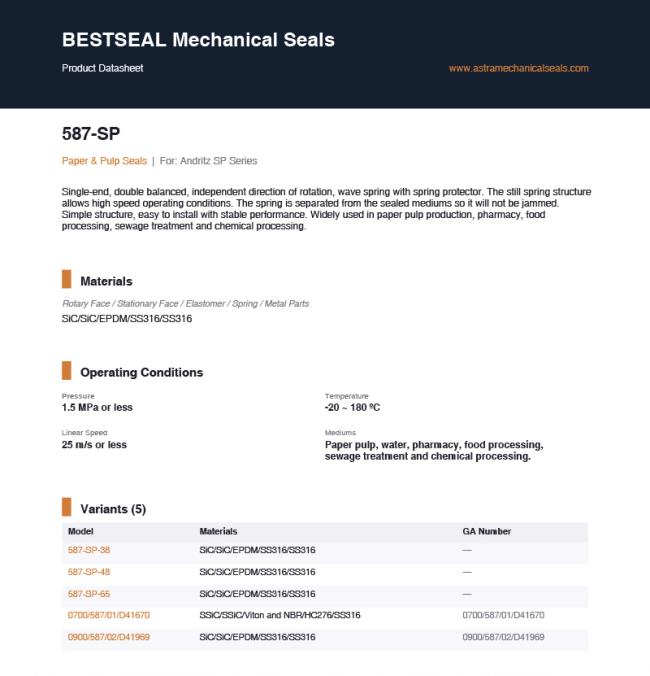

John Crane Type 587-SP
587-SP
For: Andritz SP Series
Single-end, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. Simple structure, easy to install with stable performance. Widely used in paper pulp production, pharmacy, food processing, sewage treatment and chemical processing.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/SS316/SS316
| Model | Materials | GA |
|---|---|---|
| 587-SP-38 | SiC/SiC/EPDM/SS316/SS316 | — |
| 587-SP-48 | SiC/SiC/EPDM/SS316/SS316 | — |
| 587-SP-53 | SiC/SiC/EPDM/SS316/SS316 | — |
| 587-SP-65 | SiC/SiC/EPDM/SS316/SS316 | — |
| 0700/587/01/D41670 | SSiC/SSiC/Viton and NBR/HC276/SS316 | 0700/587/01/D41670 |
| 0900/587/02/D41969 | SiC/SiC/EPDM/SS316/SS316 | 0900/587/02/D41969 |
Pressure: 1.5 MPa or less
Temperature: -20 ~ 180 ºC
Linear Speed: 25 m/s or less
Mediums: Paper pulp, water, pharmacy, food processing, sewage treatment and chemical processing.
Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
