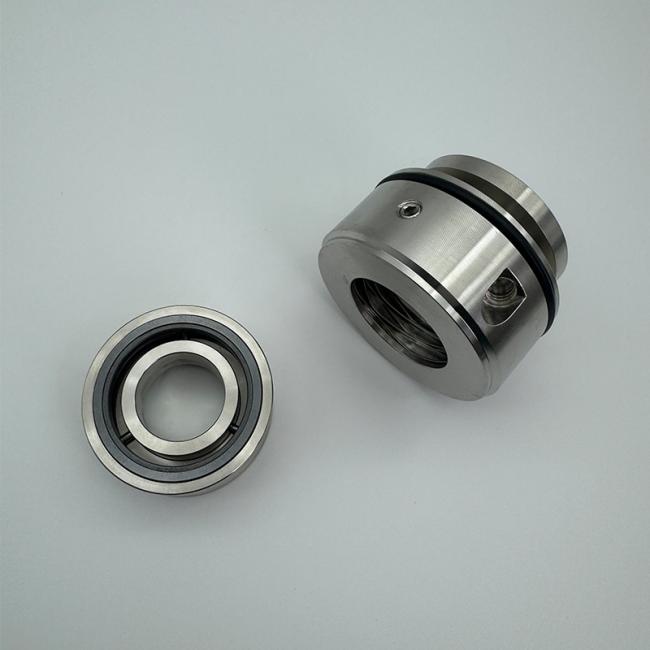

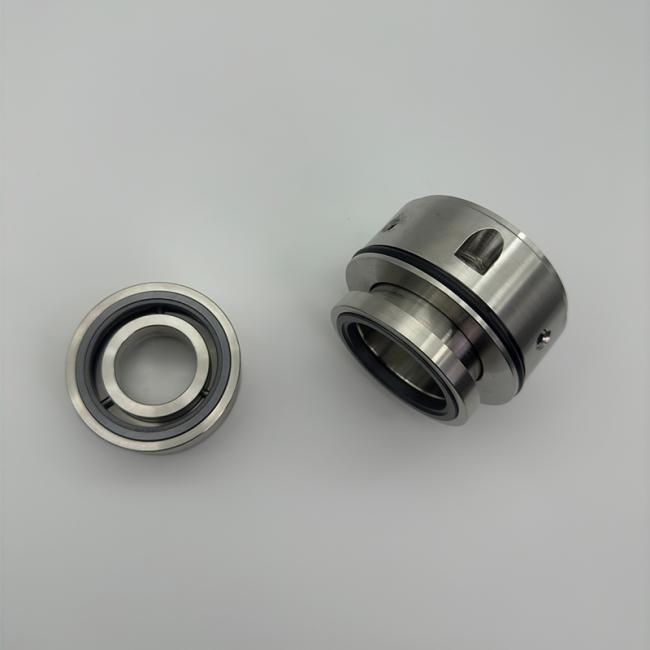

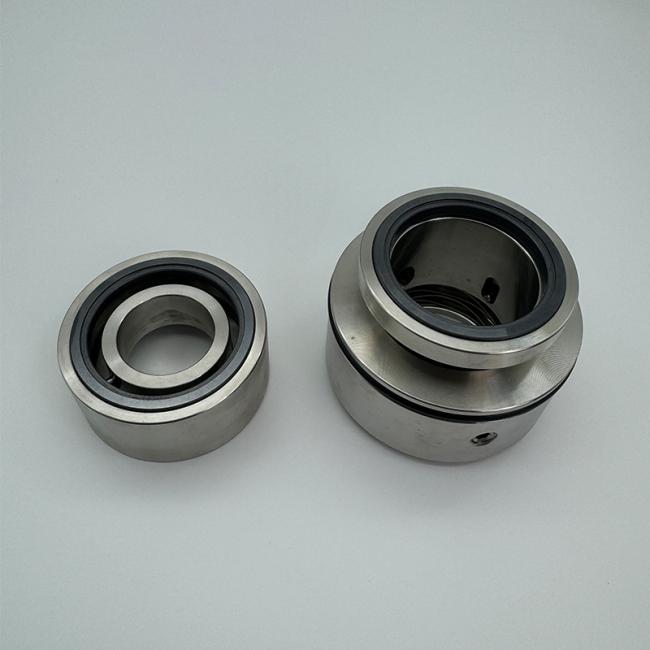

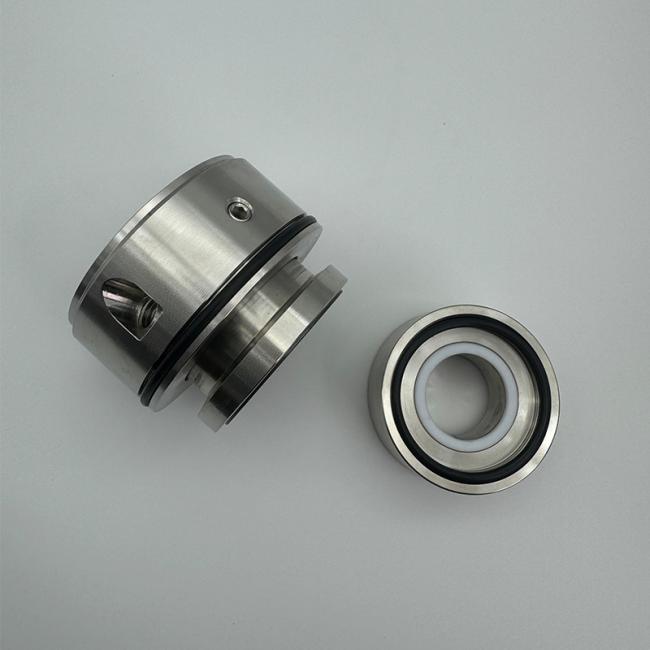

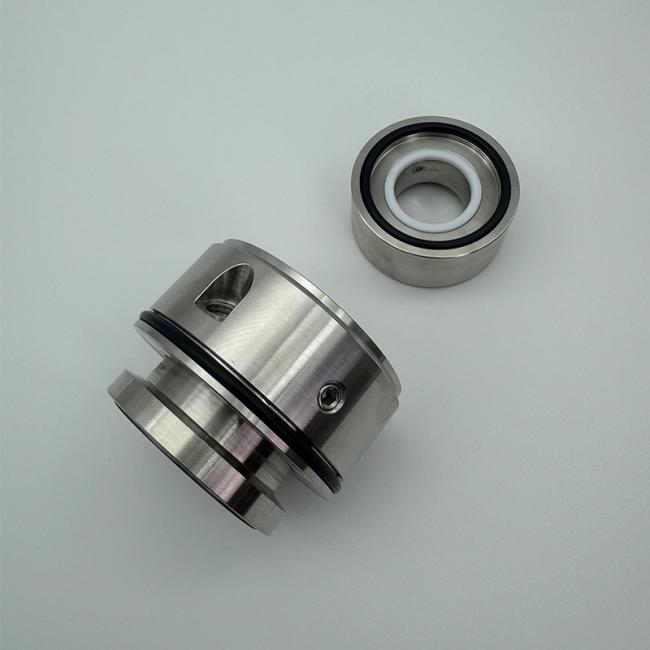

John Crane SE2-070-QTMG-301616 Safematic Mechanical Seal SiC/SiC/PTFE/Titanium

John Crane SE2-070-QTMG-301616 Safematic Dual Mechanical Seal SiC/SiC/PTFE/Titanium for Sulzer Pumps

SE2-070-QTMG-301616

Type SE2 | Dual Cartridge Seal

Dual Mechanical Seals for Sulzer Process Pumps

The Safeseal Type SE2 is a customer-fitted (OEM standard) dual, balanced cartridge seal designed for the severe applications found in the pulp and paper industry and slurry applications. This seal is typically used in pumps for abrasive and environmentally hazardous liquids in cooking, evaporation and causticizing facilities in pulp mills. It is designed as a dual-pressurized (double) seal, but incorporates a patented double-balance feature which also allows it to be used as an unpressurized (tandem) dual seal arrangement.

Features

• Seal faces are installed using a patented heat shrink process, ensuring correct, distortion-free face alignment at all recommended temperatures.
• The springs are located in the stationary body of the seal in the seal water (barrier fluid). The seal water washes the springs, preventing corrosion by process chemicals and reducing the risk of the springs becoming clogged. Shaft misalignment does not vibrate or wear out the O-rings.
• The piston design permits free axial movement. It allows ± 2mm axial movement. Impeller adjustments do not affect face stress or spring strength.
• PTFE slot rings replace the traditional O-rings in places where they are exposed to the product, preventing sticking.
• Protected faces, the seal face carriers are driven by machined fits, preventing metal stress from distorting the face.
• Patented double-balanced design allows the use of both pressurized and un-pressurized seal water (barrier/buffer fluid) and prevents face overload.

Parameters

• Temperature Limits: 350°F/180°C
• Pressure Limits: Process pressure: 290 psi(g)/20 bar(g), Seal water pressure: 215 psi(g)/15 bar(g)
• Speed Limits: 65fps/30m/s

Standard Materials

• Seal faces: SiC/SiC (product side), SiC/Carbon (atmosphere side)
• O-rings: PTFE (product side), EPDM, Viton
• Metal parts: AISI 329 (standard), titanium, UHB, super duplex
• Springs: Nimonic steel

Recommended Applications

• Process pumps
• Other rotating equipment
