One-Stop Green Solder Mask PCB Assembly Solution Manufacturer Portable GPS GSM Tracker SIM Card Circuit Board
Price:
€3.16-9.01
MOQ:
1
Delivery Time:
Negotiable
Brand:
WONSTRON OR CUOTOMIZED
Product Description
One-Stop PCB Assembly Solution Electronic PCB PCBA Manufacturer Portable GPS GSM Tracker SIM Card PCB Circuit Board
Quality Standard | IAFT 16949 Tier 1 Manufacturer | |||
Traceability | QR Code Laser printing in MES system | |||
Max Stencil Size | 1560mm*450mm | |||
Min SMT Package | 0201 | |||
Min IC Pitch | 0.3mm | |||
Max PCB Size | 1200mm*400mm | |||
Min PCB Thinkness | 0.35mm | |||
Min Chip Size | 01 005 | |||
Max BGA Size | 74mm*74mm | |||
BGA Ball Pitch | 1.0-3.00 | |||
BGA Ball Diameter | 0.2 - 1.0mm | |||
QFP Lead Pitch | 0.2mm-2.54mm | |||
SMT Capacity | 6 million points per day | |||
Change Line Time | Within 30 minutes | |||
DIP Capacity | Automatic Wave soldering, 6000 sets per day | |||
dispensing | Selective dispensing | |||
Conformal coating | Automatic coating | |||

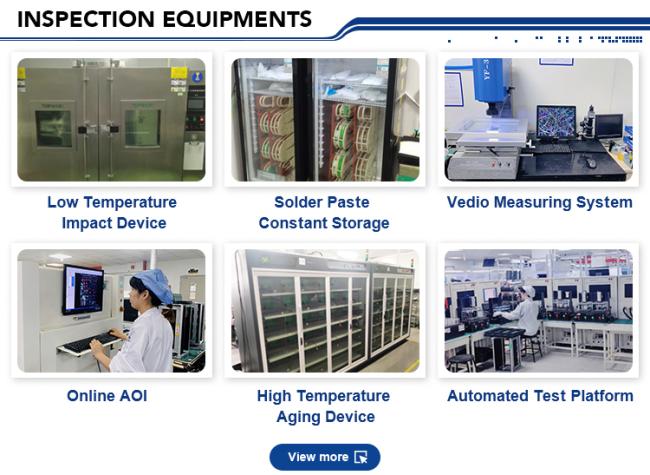

Test | AOI, IC programming, ICT, FCT,Function test | |||
Aging | High temperature, Low Temperature | |||
Conformal coating | Automatic coating | |||
Housing | Automatic assembly line,Automatic screw |

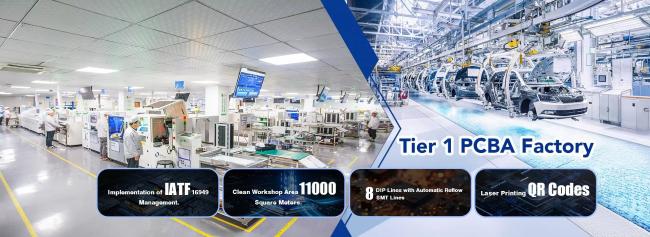

Tier 1 PCBA Factory
Implementation of IATF 16949 Management
Clean Workshop Area 11000 Square Maters,

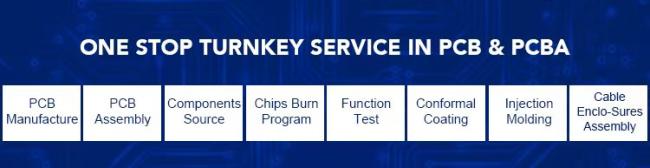

One-Stop PCB Assembly Solution
Trusted OEM for Leading Brands

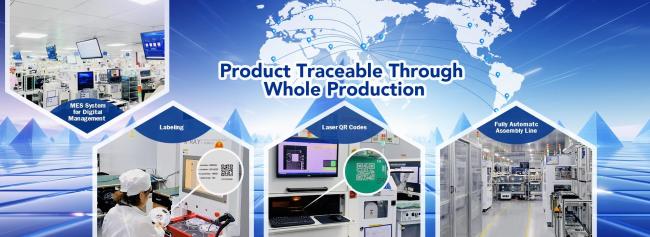

End-to-End Traceability (MES/ERP)
MES ERP for Management System
Products treacable through whole production

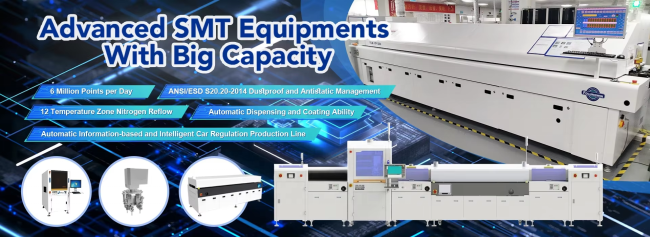

Advanced SMT Equipment With Big Capacity

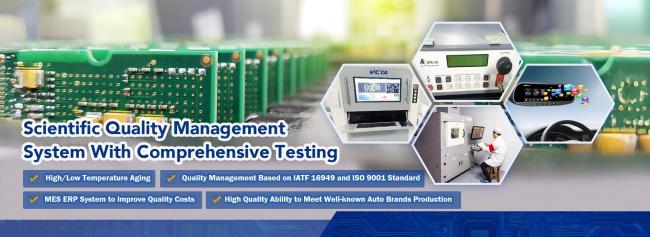

Scientific Quality Management System With Comprehensive Testing
Quality Management Based on IATF 16949 and IS0 9001 Standard
MES ERP System to improve Quality Costs
PCB Specification | FR-4,1.6mm tickness,1OZ,2-10Layer HDI stackup,HASL-LF |
Processor | ARMCortex-M4,168MHz |
Memory | 128KBRAM,512KBFlash,MicroSD slot（up to32GB) |
Power Consumption | 3.3V,<1μA static,<30mA dynamic |
Connectivity | Wi-Fi,BLE 4.2 Ethemet（10/100Mbps) |
I/OInterfaces | 32GPIO.6ADC（12-bit).8PWM.12C,SP1.UART |
Signal Processing | 0-3.3V analog input,DSP instructions |
Temperature Range | -40°Cto+85°operating,-40°Cto+125Cstorage |
Physical Size | 50mm×30mm×2mm |
Development Environment | C,C++,Python,Arduino IDE,PlatformlO |
Security Features | AES-128,SHA-256,SecureBootTamper-proofdesign |
Certifications | RoHS |
Additional Features | Deepsleepmode,RTC with battery back up,built-in Additional Features temperature/humidity sensor,expansion header pins |
Wonstron Electronics - Your Reliable 20+ Years PCB Assembly Partner

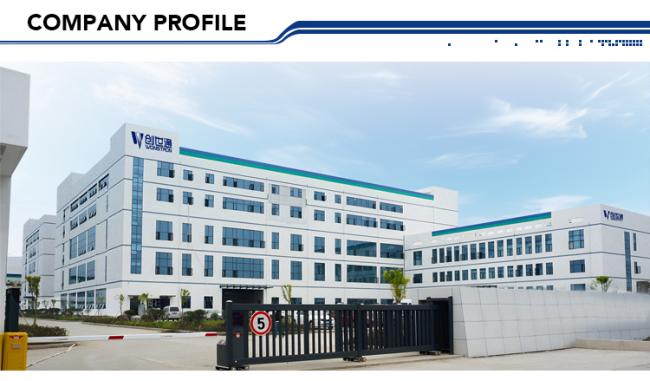

About Us:
Wonstron is a Tier-1 Electronics Manufacturing Services(EMS) provider with over 20 years of experience. We specialize in high-quality PCB Assembly and full BOM component sourcing, serving well-known brands worldwide.
Our mission is to deliver a one-stop, reliable manufacturing solution for our global clients.
\uD83C\uDFED Our Manufacturing Power:
· Skilled Workforce: 500+ dedicated employees.

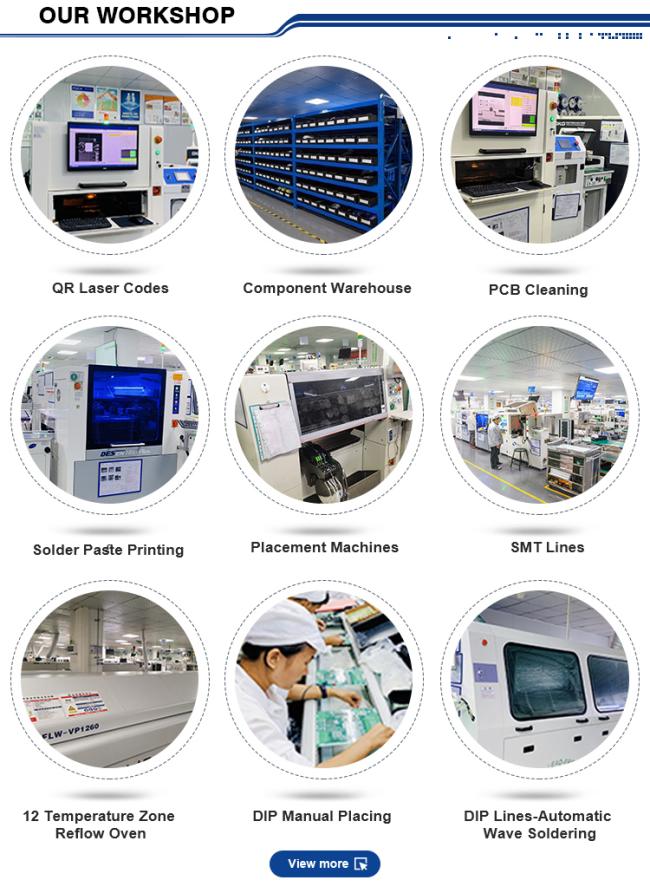

· Advanced Production Lines:
· 8 SMT Chip Lines & 24 High-Speed Placement Machines.
· 8 DIP (Dual In-line) Plug-in Lines.
· 8 Integrated Lines for Assembly, Testing, Aging, and Packaging.
· One-Stop Service: We provide complete BOM (Bill of Materials) sourcing, managing your entire supply chain for efficiency and cost-effectiveness.
✅ Quality & Certifications:
International Standards: Certified under IATF 16949 (Automotive) and ISO 9001 (Quality Management).
Full Traceability: Our MES/ERP system tracks every component and production step, ensuring lifelong product traceability.
Global Market Access: Our products comply with CE, ROHS, UKCA, FCC, TELEC, PSE, and other major international certifications.
\uD83C\uDF1F Why Choose Wonstron?
·Proven Track Record: 20+ years as a trusted Tier-1 supplier.
·End-to-End Solution: From sourcing to shipping, we handle it all.
Guaranteed Quality: We invest in advanced equipment and strict quality control to ensure the reliability of every product.
We are confident in becoming your most trusted manufacturing partner, Contact us today for a quotation!

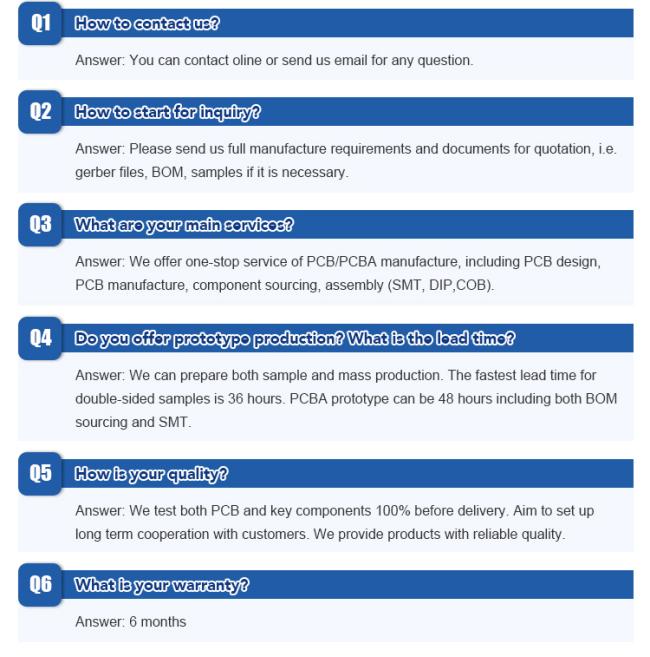

FAQ
Q1 How to contact us?
Answer: You can contact oline or send us email for any question.
Q2 How to start for inquiry?
Answer: Please send us full manufacture requirements and documents for quotation, i.e. gerber files, BOM, samples if it is necessary.
Q3 What aro your main services?
Answer: We offer one-stop service of PCB/PCBA manufacture, including PCB design, PCB manufacture,component sourcing, assembly (SMT, DIP,COB).
Q4 Do you offer prototype production? What is the lead timo?
Answer: We can prepare both sample and mass production.The fastest lead time for double-sided samples is36 hours. PCBA prototype can be 48 hours including both BOM sourcing and SMT.
Q5 How is your quality?
Answer: We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.
Q6 What is your warranty?
Answer: 6 months
