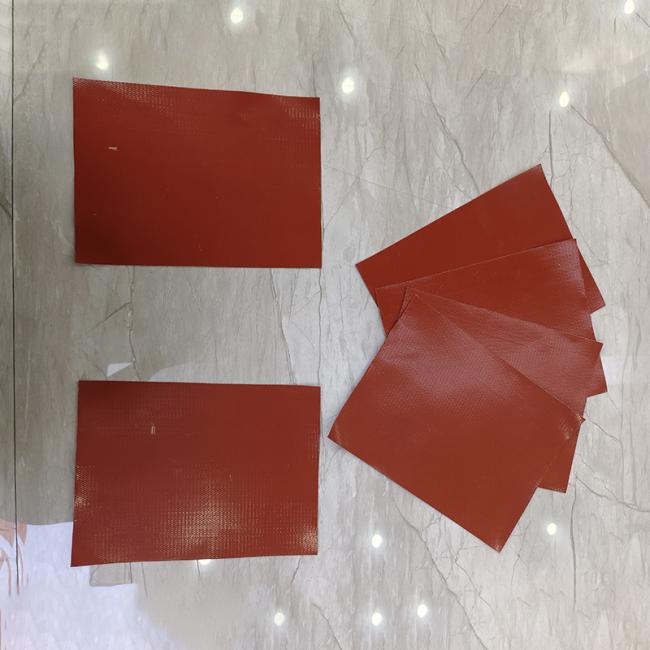

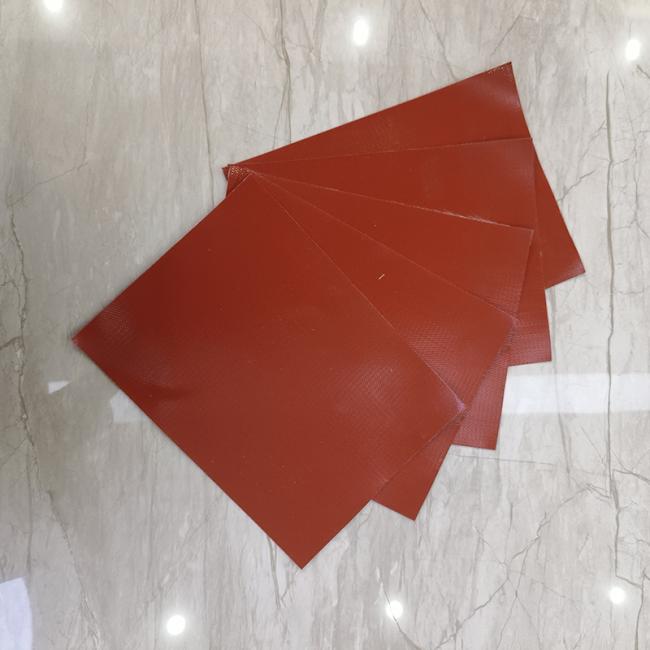

Calendered FKM PTFE Silicone Coated Fiberglass Fabric Heat Resistant For Thermal Barrier
Price:
Negotiable
MOQ:
1000 pieces
Delivery Time:
Delivery within 15-30 days
Product Description
Calendered Fiberglass Fabric Heat Resistant Cloth With Silicone Rubber/FKM/PTFE For Thermal Barrier
Product Description
Fiberglass cloth is widely used in various high-temperature insulation fields, such as petrochemicals, metallurgy, aerospace, power, construction and other industries. Specific application scenarios include but are not limited to high-temperature pipelines, heat exchangers, boilers, kilns, chimneys, storage tanks, aircraft engines, etc. Fiberglass cloth is usually used as an insulation material for the inner layer in these situations, to protect the surface of the insulated equipment from high temperature burns, and can also serve as insulation.
In addition to insulation, fiberglass cloth can also be used as an industrial filter material, electrical insulation material, sound insulation and noise reduction material, and other applications. In these fields, the excellent performance of glass fiber cloth can play a greater role in meeting the needs of different fields.
Features
Absorbing vibrations, compensating for displacements: The embossed glass fiber cloth has excellent elasticity and high flexibility, making it the core material for manufacturing non-metallic compensators (soft connections) and skins. It can effectively solve the deformation and damage caused by thermal expansion and contraction in the pipeline system, absorb mechanical vibrations, and extend the overall service life of the equipment.
High insulation strength, resistant to high voltage: It has a high electrical insulation grade, with a stable dielectric constant (3-3.2), and the breakdown voltage can reach 20-50KV/MM. It is an ideal material for making insulation cloth, bushings, and protective parts for motor electrical control, ensuring the safety of electrical operations.
Heat preservation and insulation, energy saving and consumption reduction: The thermal conductivity is low and the insulation performance is excellent. It is used to make detachable insulation covers (commonly known as "iron jackets"), which can precisely fit various irregularly shaped equipment such as valves and heat exchangers, reducing heat loss and improving working conditions; at the same time, it can also be used as a fire curtain or electric welding protection blanket to protect the safety of operators.
Resistant to harsh media, with tight sealing: It has excellent tolerance to lubricating oil, fuel, and acidic/alkaline chemical agents (particularly outstanding in the fluorocarbon coating). Suitable for anti-corrosion coatings inside and outside storage tanks, as well as acid and alkali resistant flexible connections, completely preventing leakage.
Technical Parameters
| Parameter | Specification Range |
|---|---|
| Weight (g/m²) | 100 – 800 g/m² |
| Thickness Before Calendering (mm) | 0.15 – 1.5 mm |
| Thickness After Calendering (mm) | 0.08 – 1.0 mm |
| Thickness Reduction Rate | 20% – 50% |
| Density Increase | 15% – 40% |
| Porosity / Air Permeability | Reduced by 30-60% after calendering |
| Surface Treatment | Heat Cleaned / Desized / Volan / Silane |
| Tensile Strength (Warp) | ≥ 1000 – 4000 N/50mm |
| Tensile Strength (Weft) | ≥ 800 – 3500 N/50mm |
| Elongation at Break | ≤ 3% – 5% |
| Tear Strength | ≥ 50 – 150 N |
| Temperature Resistance | 550°C – 800°C (1022°F – 1472°F) |
| Flame Resistance | Non-combustible / Self-extinguishing |
| Dimensional Stability | ≤ 0.5% |
| Moisture Absorption | ≤ 0.5% |
| Common Calendering Temperature | 100°C – 300°C (212°F – 572°F) |
| Calendering Pressure | 10 – 100 tons |
| Roller Speed | 5 – 50 m/min |
| Number of Calendering Passes | 1 – 3 passes |
| Roll Length | 50m / 100m / 200m / Custom |
| Packaging | Moisture-proof paper + Plastic film + Woven bag / Carton |
FAQ
Q. 1: How long is the sample time ? Does the sample fee can be returned?
Proofing is usually 3-5 working days. If the order reach or exceed behind MOQ quantity, proofing fee refunded. If not reached behind MOQ quantity, proofing fee will be taken by you.
Q. 2: About the sample what is the cost of transportation?
Q. 3: How long can I expect to get the sample?
The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.
Q. 4: Do you accept customized orders?
Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
Q. 5: Can we have our Logo or company name to be printed on your products or package?
Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.
Q. 6: How to order?
Please send us your purchase order by Email or call us sales line
We need to know the following information for your order before sending you PI.
1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.
Q. 7: How can order the products without any acknowledge of import ?
We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.
Q. 8: Do you have stock ?
We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
Q. 2: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region, etc.
You can confirm by photo and video to save this money, If you become our old customer.
You can confirm by photo and video to save this money, If you become our old customer.
Q. 3: How long can I expect to get the sample?
The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.
Q. 4: Do you accept customized orders?
Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
Q. 5: Can we have our Logo or company name to be printed on your products or package?
Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.
Q. 6: How to order?
Please send us your purchase order by Email or call us sales line
We need to know the following information for your order before sending you PI.
1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.
Q. 7: How can order the products without any acknowledge of import ?
We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.
Q. 8: Do you have stock ?
We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
