Asbestos Free Dewaxed Heat Treated Fiberglass Fabric Waxless Insulation For Industrial Pipe Boiler
Asbestos-Free Dewaxed Fiberglass Cloth Heat Treated Waxless Insulation Fabric Welding For Industrial Pipe Boiler Wrapping
Product Description
The production of hot cleaning fiberglass cloth generally includes the following main steps:
*Raw material preparation: The main raw materials are glass balls or broken glass, as well as other auxiliary materials used to adjust the properties of the glass.
*Melting and Drawing: The raw materials are melted into liquid glass in a high-temperature furnace, and then rapidly drawn into continuous glass fibers with extremely fine diameters through tiny holes on a platinum rhodium alloy plate.
*Wetting agent application: During the drawing process, a chemical coating called "wetting agent" is applied to the surface of the fiber. This layer of coating is crucial for protecting the fibers, enhancing the bonding strength between the fibers and subsequent resin materials.
*Spinning and spinning: Multiple single fiber glass fibers are combined into one strand of raw yarn, and multiple strands of raw yarn are combined into thicker and stronger yarns as needed.
*Weaving: Weaving glass fiber yarn into fabric on a weaving machine according to a set pattern (such as plain weave, diagonal weave).
*Post processing: The woven fabric needs to undergo heat treatment (desizing) to remove the lubricating slurry applied during weaving, and sometimes surface chemical treatment (such as coating with coupling agents) is also carried out according to the purpose to improve its compatibility with materials such as resins.
Features
High temperature resistance and thermal stability: No organic wax residue, long-term use temperature can reach 300 ℃~500 ℃ (depending on the glass fiber model), instantaneous temperature resistance is higher, and no volatiles or carbonization are produced at high temperatures, with good dimensional stability.
High electrical insulation performance: no conductive impurities on the surface, stable dielectric performance, high breakdown voltage, suitable for high-frequency circuit substrates and high-voltage electrical insulation wrapping.
Clean and dust-free surface: After dewaxing and subsequent water washing treatment, the fabric surface is smooth, hairless, and stain free, reducing fiber dust and facilitating subsequent coating and laminating processes, resulting in a smoother appearance of the finished product.

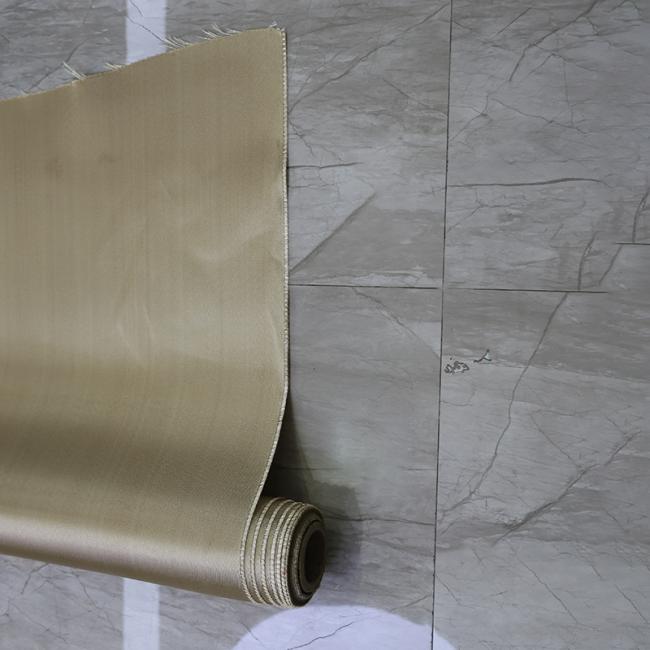

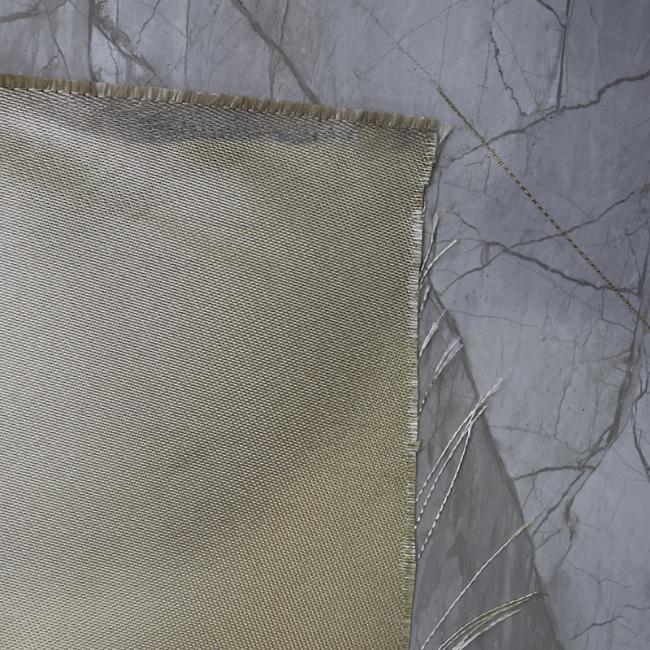

Color characteristics: After dewaxing treatment at 300 ℃~400 ℃, the finished product usually appears golden yellow or light brown, which is different from white or light yellow cloth that has not been dewaxed.
Chemical stability: retain the inherent acid and alkali resistance, corrosion resistance, non combustible characteristics of glass fiber, strong anti-aging ability, and long service life.
Processing adaptability: The texture is relatively soft (compared to untreated stiff fabric), easy to cut, sew, and punch, suitable for complex shape forming.
Technical Parameters
| Parameter | Specification Range |
|---|---|
| Product Name | Heat Cleaned Fiberglass Fabric |
| Process Type | Heat Cleaning / Thermal Desizing / Heat Treatment |
| Heat Treatment Temperature | 350°C – 650°C (660°F – 1200°F) |
| Weave Structure | Plain Weave / Twill Weave / Satin Weave / Lenor Weave |
| Weight (g/m²) | 50 – 900 g/m² |
| Thickness (mm) | 0.05 – 1.2 mm |
| Width (cm/in) | 80cm / 100cm / 127cm / 150cm / 200cm (31" / 39" / 50" / 59" / 79") |
| Residual Sizing Content | < 0.2% (typically < 0.1%) |
| Tensile Strength (Warp) – After | ≥ 600 – 3500 N/50mm |
| Tensile Strength (Weft) – Before | ≥ 600 – 3500 N/50mm |
| Tensile Strength (Weft) – After | ≥ 450 – 3000 N/50mm |
| Strength Retention Rate | 85% – 92% |
| Elongation at Break | ≤ 3% – 5% |
| Temperature Resistance (Substrate) | 550°C – 800°C (1022°F – 1472°F) |
| Continuous Service Temperature | Up to 550°C (1022°F) |
| Resin Compatibility | Epoxy / Polyester / Vinyl Ester / Phenolic / Silicone / PTFE |
| Coating Compatibility | Silicone / PTFE / Acrylic / Polyurethane / Aluminum |
| Flame Resistance | Non-combustible / Self-extinguishing |
| Moisture Absorption | ≤ 0.5% |
