Small Size Enterprise Gateway with Mediatek Chipset, with 5*10/100/1000Mbps RJ45 Ports, and The Ap Controller Installed at Home, Office, Restaurant
Price:
US $1-400 / Piece
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description

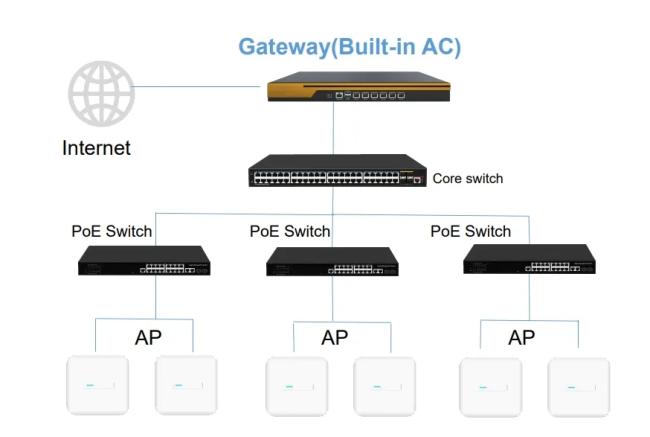

Small size Enterprise Gateway with Mediatek chipset, with 5*10/100/1000Mbps RJ45 ports, and the AP controller installed at home, office,restaurant
Model : AC-100
AC-100 is an small size Enterprise Gateway with Mediatek chipset; Metal housing,
desktop design with 5*10/100/1000Mbps RJ45 ports, it can be installed at home, office,
restaurant to provide the Gigabit Ethernet for users
Model : AC-100
CPU : MT7621
DDR :512M
Flash :16M
Heat Dissipate
Natural heat dissipation
Ports
4 × 10/100/1000Mbps LAN ports (can set to WAN port)
1 × 10/100/1000Mbps WAN port
Power
DC: 12V/1A
Dimension
293 *180 *44mm
Working Temperature
-20ºC~55ºC
Storage Temperature
-40ºC ~ 70ºC
Working Humidity
5% ~ 97%RH (No condensation)
Content
AC-100 *1
Power Cable *1
Installation Accessory
QIG*1
| Platform | |
| Size | 1U Frame |
| CPU | Intel® Baytrail J1800 2.4GHz/1MB |
| CPU type | Board sticking |
| Chipset | SOC |
| BIOS | SPI AMI EFI BIOS |
| Flash Info | |
| Flash | DDR3 1333/1600 |
| Flash size | Default: 2GB, Optional: 4~8GB |
| Network Interface | |
| Interface | 6 x GbE RJ45 Ports |
| Chipset | 6 x Intel®I211AT |
| BYPASS | 1 group is optional |
| Bypass Control | MCU or GPIO control |
| Serial Port | |
| Port | 1 x RJ45 Serial port |
| Default baud rate | 115200bps |
| Serial port definition | Compatible with Cisco definition |
| I/O Interface | |
| Reset Button | 1PC, to control GPIO or BYPASS |
| LED Indicator | 1 x Power Indicator (Green) 1 x Status Indicator (Orange) 2 x Bypass Indicator (Yellow) |
| Power Switch | 1 x Power Switch |
| USB Port | 2 x USB2.0 Port |
| Display port | 1 x VGA Port (Optional) |
| Power Injector | 1 x AC Power injector |
| Storage | |
| Storage type | General hard disk, SSD, CF Card, DOM |
| Hard disk | 1 x SATAIII 2.5 inch hard disk, capacity optional |
| SSD | 1 x M-SATA SSD, default: 8GB |
| CF card | 1 x TYPEII CF card |
| DOM | 1 x SATA DOM (share hard disk interface) |
| Extend Port | |
| PCIe | No |
| Mini-PCIe | No |
| Others | |
| Watchdog | Support |
| GPIO | 6 lines |
| Heat Dissipate | No Fan module on mother board 1 x System Fan |
| Power Supply | |
| Power supply | Build in Open type power supply |
| Power Consumption | 75W |
| Power input | AC 90V-264V @47-63Hz |
| Size, Environment and Certification | |
| Size | 430 (L)×300(W)×44(H)mm |
| Package Size | 545(L)*415(W)*180(H)mm |
| N.W | KG |
| G.W | KG |
| Working Temperature | 0ºC-50ºC |
| Storage Temperature | -40ºC~70ºC |
| Storage Humidity | 5~95% RH, Non condensing |
| Certification | 3C, ROHS |
Carton box: 51.5*42.5*30cm;
5PCS/CTN,
15.2KGS/CTN
2 years warranty
