11ax Wi-Fi6 Standard 5g Mifi with Mtk Chipset and Allow 16 Users to Share The High Speed Mobile Network Easily

Price Negotiable
Price: US $150 / Piece
MOQ: 1 Piece
Delivery Time: Negotiable
Product Description

Wi-Fi 6 5G MIFI with battery and LCD display

Product Description

KS-XM500 is an 11ax Wi-Fi6 standard 5G MiFi with 4400mAh battery and LCD display. With MTK chipset, the NR download speed up to 2.77Gbps; Wi-Fi comply to 802.11ax standard, 2.4G 600Mbps, 5.8G 1200Mbps, total 1800Mbps data rate; Insert the SIM card, it is plug and play, allow 16 users to share the high speed mobile network easily.

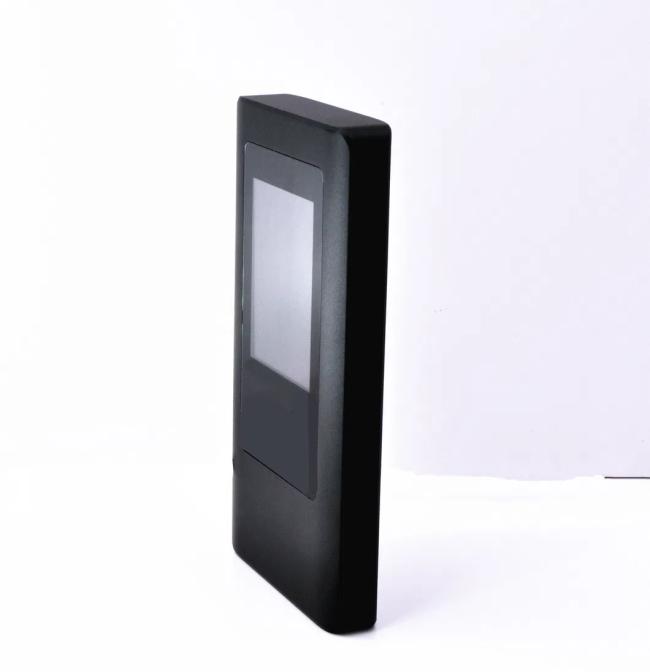

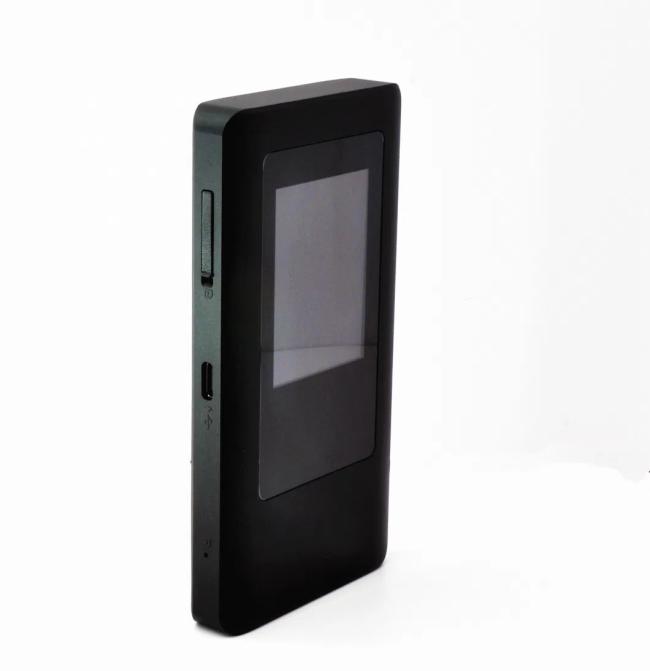

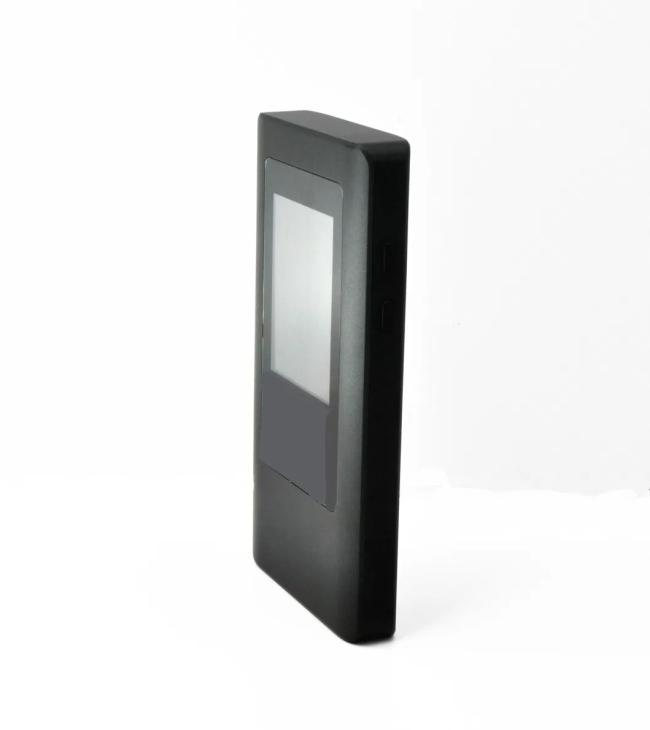

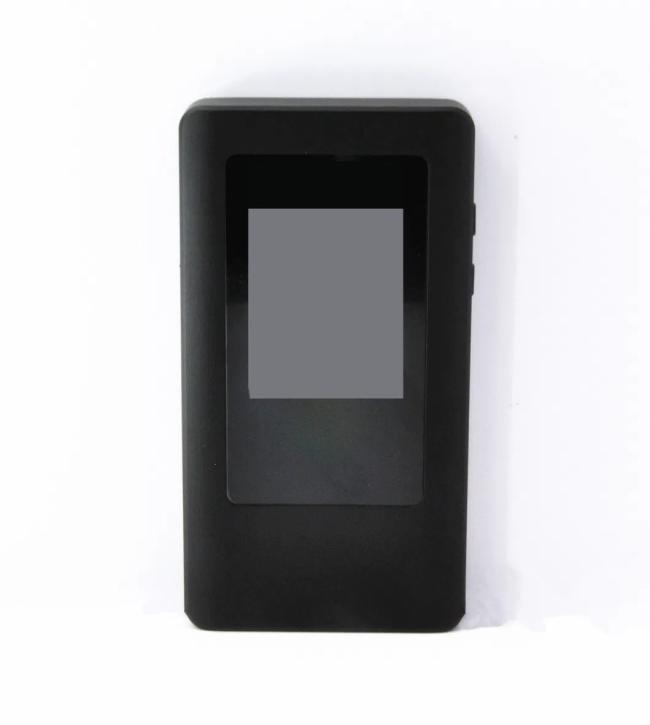

Detailed Photos

Product Parameters
Hardware Spec:
Model KS-5G-XM500
WiFi Standard IEEE 802.11b/g/n/ac/ax
CPU 5G: MTK 900,MT6877
  Wi-Fi: MT6635
Memory LPDDR4X 2GB RAM+EMMC 32GB ROM
Frequency 2.4G: 2400 - 2484MHz
  5.8G: 5150 - 5850MHz
Data Rate 600Mbps @ 2.4GHz; 1200Mbps @5.8GHz
RF Power ≤ 20dBm
Access Users 16 Clients
Interface 1*SIM card slot for NANO SIM
  1* type C USB for power charge
Button Reset button
  Power button
LCD display 2.4-inch TFT MIPI interface (LCD)
Bluetooth Bluetooth 5.1,(Optional)
Battery 4400mAh
Antenna Wi-Fi: 2dBi omni antenna;
5G: 3dBi omni antenna
Power Consumption <10W
Power Supply 5V/2A
Working temperature Working Temperature:0ºC~55ºC
  Storage temperature: -20ºC~70ºC
Humidity 5%~95%
Dimensions 130mmX70mmX22mm
4G/5G Speed
5G NR protocol 3GPP Rel.15,5G NR,SA/NSA,Sub 6G/LTE Category 13
Bands for China, Asia,Europe, Middle East and Africa
5G n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
4G B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42*/B43*
3G B1/B2/B5/B8
Bands for America
5G n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78
4G B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42*/B43*/B48*/B66/B71*
3G B2/B4/B5
Speed NR:Dwonlink/Uplink up to 2.77Gbps/1.25Gbps                                         LTE:Dwonlink/Uplink up to 391Mbps/150Mbps
Packing List

KS-5G-XM500*1
Power cable×1
User Manual×1
* Bands are in developing




Our Advantages

1. OEM & ODM manufacturer with R&D team and factory together. Manufacturer is located in Shenzhen city;

2. Produced some products in India and Vietnam already, can support production in other countries;

3. Professional engineer and sales teams, 10+ years experience, faster and skilled communication to save time;



After Sales Service

1. Two years warranty as product with branded components, such as Qualcomm/MTK chipset, Winbond flash, Nanya DDR, Skyworks PA...

2. Online technical support always.

3. On-site technical support;



FAQ

1. MOQ:
If no brand, the MOQ can be 100PCS;
If branded, then MOQ should be 1000PCS;
Can be 500PCS also, but extra OEM fee will be added;

2. Samples:
Samples available before mass production;
But will charge sample fee and shipping fee.
If samples can't pass the testing as Quality default, we can return the sample fee and shipping fee

3. SKD and CKD
We can support SKD and CKD;
But if no professional SMT/DIP/RF calibration experience, we suggest to do SKD;

4. Long term business
We are not one-time business partner;
Most of our customers are cooperated with 10 years experience;
A supplier with stable and longer-life time product, faster and response communication will save too much for you.
